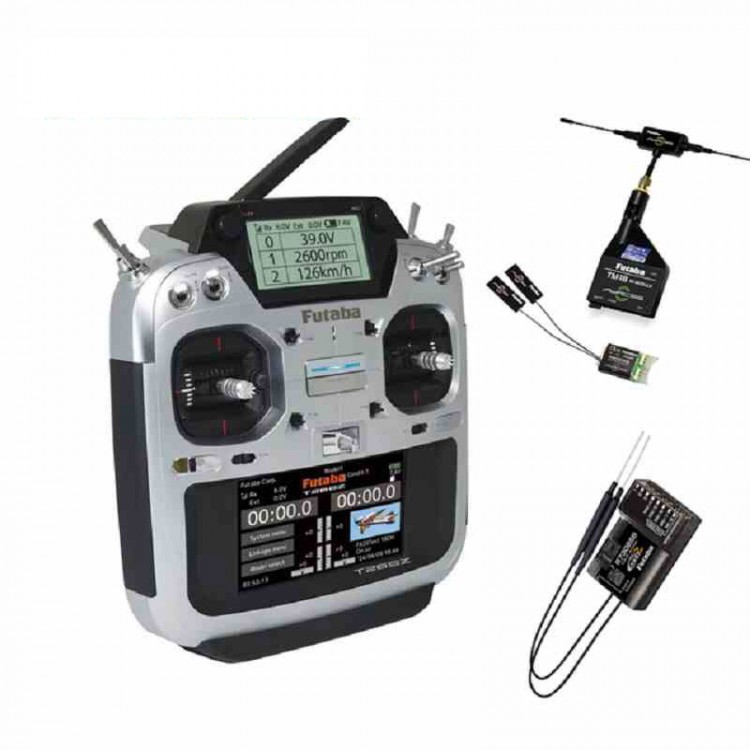

T26SZ + R7308SB + TM-18 + R9001SB Left Hand Throttle 2.4G 26CH RC Transmitter Receiver RC TX RX Set
Attention:
* It does not support FASST format.
Description:
* 26SZ Transmitter – 26-Channel Digital Proportional RC System
* 2-Stick, 26-Channel, FASSTest 2.4 GHz System
Features:
FASSTEST SYSTEM:
The 26SZ transmitter has adopted the bidirectional communication system "FASSTest." Data from the receiver can be checked in your transmitter. FASSTest is a dedicated system with a maximum of 26 channels and 2.4 GHz.
COLOR TOUCH SCREEN LCD:
T26SZ has an HVGA 4.3 inch, full-color backlit LCD touch screen. The screen is transflective which enables both indoor and outdoor visibility.
S.BUS2 SYSTEM:
Using the S.Bus2 system, multiple servos, gyros, and telemetry sensors can be easily installed with a minimum of cables.
MODEL TYPES:
Multicopter. 8 swash types are available for helicopters. 7 types of main wings and 3 types of tail wings are available for airplanes and gliders. Functions and mixing functions necessary for each model type are set in advance at the factory.
LIPO BATTERY:
The 26SZ is operated by a 7.4 V/2,000 mAh Lithium Polymer battery.
SD CARD (SECURE DIGITAL MEMORY CARD) *NOT INCLUDED:
Model data can be saved to an SD card (SD: 32MB-2GB, SDHC: 4GB-32GB). When T26SZ transmitter software files are released, the software can be updated by using an SD card update.
EDIT BUTTON:
Two edit buttons are provided, and the operating screen can be immediately "Returned" to the HOME screen during operation. Setting operation can be performed easily by combining this button with a touch sensor.
VIBRATION FUNCTION:
Selects a function that alerts the operator to various alarms by vibrating the transmitter in addition to sounding a buzzer.
SPEECH FUNCTION:
A function is equipped to allow the system to provide audible telemetry data. This function can also be utilized with commercially available earphones.
T26SZ transmitter specifications:
* Transmitter frequency: 2.4 GHz band
* System: FASSTest26CH, FASSTest18CH, FASSTest12CH, T-FHSS, S-FHSS, switchable
* Power supply: LT2F2000B battery
* Frequency band: 2.4 GHz
* RF power output: 100mW EIRP
Compatible receivers as of 10/1/24:
S-FHSS PROTOCOL:
* R2008GS
* R2008SB
* R2106SB
* R2001SB
* R2000SBM
T-FHSS TELEMETRY PROTOCOL:
* R3001SB
* R3004SB
* R3006SB
* R3008SB
T-FHSS MONO (NON-TELEMETRY):
* R3206SBM
* R3106GF
FASSTest12 and FASSTest18:
* R7003SB
* R7006SB
* R7008SB
* R7108SB
* R7014SB
* R7208SB
* R7214SB
* R7206SB
Receivers not supported by T26SZ:
* R608FS, R6008HS, R6004FF, R6014HS, R6014FS, R617FS, R616FFM, R6108SB, R6208SB, R6106HF, R6106HFC, R6203SB, R6203SBE, R6202SBW, R6303SB, R6303SBE
Package included:
* 1 x Set of T26SZ + R7308SB + TM-18 + R9001SB
Packaging details:
* Volume weight: 2.5kg
