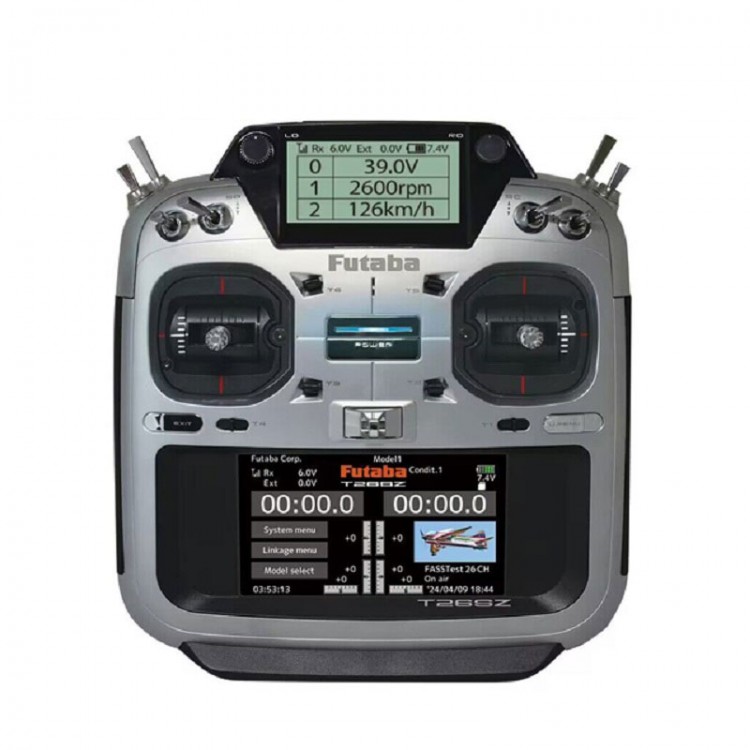

T26SZ Right Hand Throttle 2.4G 26CH RC Transmitter Set with Color Touch Screen (without Receiver)

T26SZ Right Hand Throttle 2.4G 26CH RC Transmitter Set with Color Touch Screen (without Receiver)

Attention:
* It does not support FASST format.

Description:
* 26SZ Transmitter – 26-Channel Digital Proportional RC System
* 2-Stick, 26-Channel, FASSTest 2.4 GHz System

Features:
FASSTEST SYSTEM:
The 26SZ transmitter has adopted the bidirectional communication system "FASSTest." Data from the receiver can be checked in your transmitter. FASSTest is a dedicated system with a maximum of 26 channels and 2.4 GHz.

COLOR TOUCH SCREEN LCD:
T26SZ has an HVGA 4.3 inch, full-color backlit LCD touch screen. The screen is transflective which enables both indoor and outdoor visibility.

S.BUS2 SYSTEM:
Using the S.Bus2 system, multiple servos, gyros, and telemetry sensors can be easily installed with a minimum of cables.

MODEL TYPES:
Multicopter. 8 swash types are available for helicopters. 7 types of main wings and 3 types of tail wings are available for airplanes and gliders. Functions and mixing functions necessary for each model type are set in advance at the factory.

LIPO BATTERY:
The 26SZ is operated by a 7.4 V/2,000 mAh Lithium Polymer battery.

SD CARD (SECURE DIGITAL MEMORY CARD) *NOT INCLUDED:
Model data can be saved to an SD card (SD: 32MB-2GB, SDHC: 4GB-32GB). When T26SZ transmitter software files are released, the software can be updated by using an SD card update.

EDIT BUTTON:
Two edit buttons are provided, and the operating screen can be immediately "Returned" to the HOME screen during operation. Setting operation can be performed easily by combining this button with a touch sensor.

VIBRATION FUNCTION:
Selects a function that alerts the operator to various alarms by vibrating the transmitter in addition to sounding a buzzer.

SPEECH FUNCTION:
A function is equipped to allow the system to provide audible telemetry data. This function can also be utilized with commercially available earphones.

Transmitter specifications:
* Transmitter frequency: 2.4 GHz band
* System: FASSTest26CH, FASSTest18CH, FASSTest12CH, T-FHSS, S-FHSS, switchable
* Power supply: LT2F2000B battery
* Frequency band: 2.4 GHz
* RF power output: 100mW EIRP

Compatible receivers as of 10/1/24:
S-FHSS PROTOCOL:
* R2008GS
* R2008SB
* R2106SB
* R2001SB
* R2000SBM

T-FHSS TELEMETRY PROTOCOL:
* R3001SB
* R3004SB
* R3006SB
* R3008SB

T-FHSS MONO (NON-TELEMETRY):
* R3206SBM
* R3106GF

FASSTest12 and FASSTest18:
* R7003SB
* R7006SB
* R7008SB
* R7108SB
* R7014SB
* R7208SB
* R7214SB
* R7206SB

Receivers not supported by T26SZ:
* R608FS, R6008HS, R6004FF, R6014HS, R6014FS, R617FS, R616FFM, R6108SB, R6208SB, R6106HF, R6106HFC, R6203SB, R6203SBE, R6202SBW, R6303SB, R6303SBE

Package included:
* 1 x Set of T26SZ Transmitter (without Receiver)

Packaging details:
* Volume weight: 2.5kg
