Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $82.17 | $80.50 | $77.98 | $74.63 | Contact US |

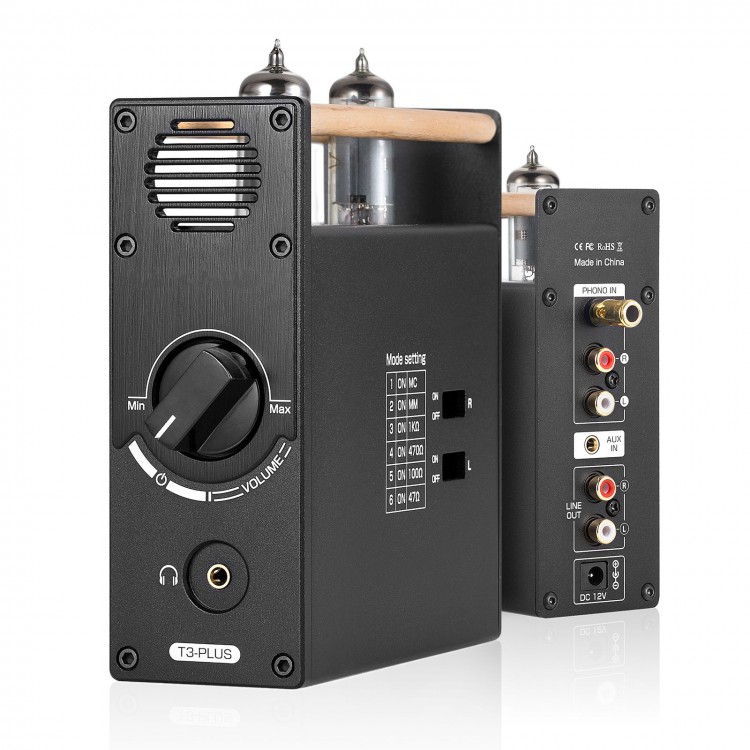

T3-PLUS MM MC Phonograph Preamp Phono Preamplifier Vacuum Tube Phono Preamp Headphone Amp
Attention:
1. 3.5mm AUX input with priority, please make sure the AUX cable has been pulled out if phono input is needed.
2. If you want it upgraded GE5654 vacuum tube, please contact us.
3. Stereo RCA and 3.5mm headphone jack can output at the same time.
Description:
T3-PLUS can be used as a MM/MC phono preamp, a tube audio preamp and a headphone amplifier, powerful function in mini size, specially designed for various requirements.
Features:
- Multiple audio inputs and outputs: 3.5mm AUX and MM/MC phono inputs, preamplifier outputs, compatible with different MM/MC phono and other audio devices to satisfy different demands
- Pluggable vacuum tube and HiFi sound: 6A2 tubes create warm, delicate, full and mellow, much softer and more listenable sound. Can be directly replaced by 6J1/6J4/GE5654/6AK5/6*1N to enjoy different sound styles
- Unique appearance and proper size: Vertical placement design, black solid aluminum chassis with wire drawing and frosted technology, looks cool and distinctive, both enjoyment of auditory and visual, very suitable for audiophiles who pursue HiFi sound
- With MM/MC switch and MC input impedance setting: Support MM and MC cartridges at the same time. Switchable 1KΩ/470Ω/100Ω/47Ω input impedance design can better match different types of phono players to provide better sound quality
- Perfect design, powerful function: Reasonable and advanced circuit, high-quality components. Using 3pcs JRC2608 operational amplifier, high-end power management part, NE5532 operational amplifier chip and the like
- Headphone amp: Can be used as a headphone amplifier to drive 32-300 ohm headphones
Specifications:
- Audio input: phono/turntable (RCA) / 3.5mm AUX
- Audio output: stereo RCA / 3.5mm headphone jack
- Headphone output power: 130mW at 32Ω
- Matched headphone impedance: 32-300Ω
- Working voltage: DC 12V
- Dimensions: 50*120*138mm/1.97*4.72*5.43" (W*D*H)
- Net weight: 540g
AUX Input:
- AUX input level: 1V
- RCA max output level: 2V
- Frequency response: -1dB (20Hz-20KHZ)
- THD: 0.01%
- SNR: 100dB
Phono Input:
- Phono input level: 0.005V
- RCA maximum output level: 530mW (MM) / 5V (MC)
- Frequency response: conforms to RIAA characteristics
- THD: 0.2%
- SNR: 89dB
Package Included:
- 1 x Tube Phono Preamplifier
- 1 x 12V Power Adapter
- 1 x Cable 3.5MM To RCA
