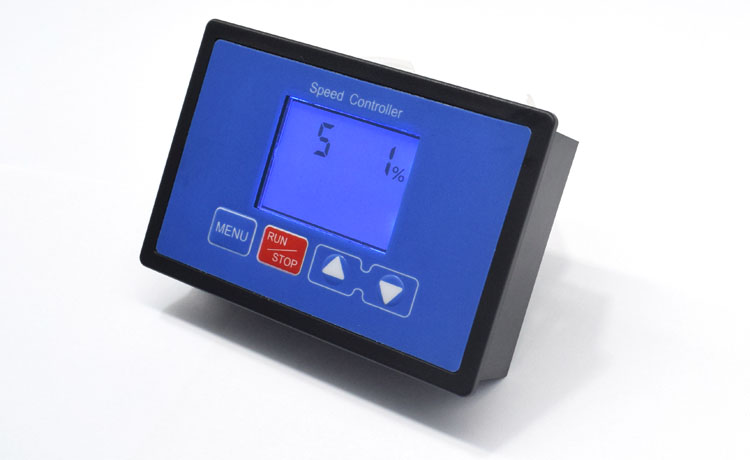

T59 Speed Controller DC Motor Speed Controller LCD Display With Remote Controller 12V 24V 36V 48V

T59 Speed Controller DC Motor Speed Controller LCD Display With Remote Controller 12V 24V 36V 48V

Features:

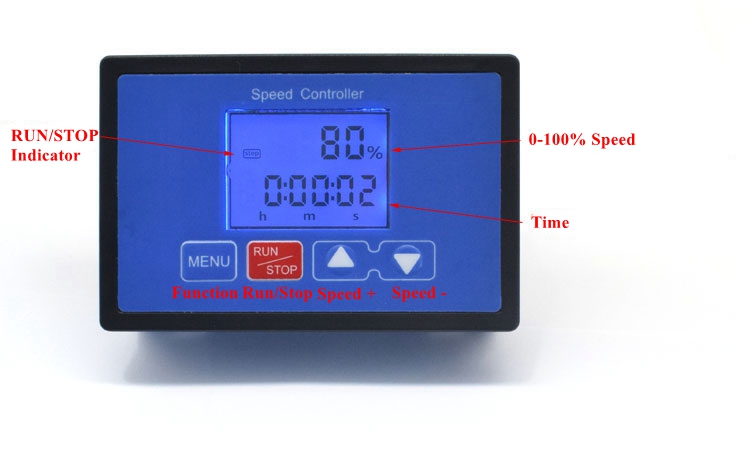

- LCD screen with backlight can display working time, 0-100% rotation speed percentage
- With a wireless remote controller
- Slow start and slow stop time can be set
- The upper limit and lower limit of the speed can be set
- Set the total working time and stop when the time is up
- Run time and stop time can be set. Repeated and automatic cycle start and stop work
- The limit of the number of automatic start and stop can be set
- Inching acceleration and deceleration, solving the fragile problem of traditional potentiometers

Product Parameters:
- Model: T59
- Input voltage: DC6.5V-55V (the specific voltage must be equal to the rated voltage of motor)
- Output voltage: linear under load
- Instantaneous current: 30A
- Continuous current: within 20A
- Speed regulation type: current regulation
- Speed control method: Jog + -
- Wireless remote control: with
- Timing: Yes
- Slow start and slow stop: Can be set
- Rotation speed digital display: 0-100 percentage meter
- Speed adjustment range: 0-100%
- Control frequency: 15KHZ
- Wiring type: Barrier terminal block
- Supported motor: brushed motor

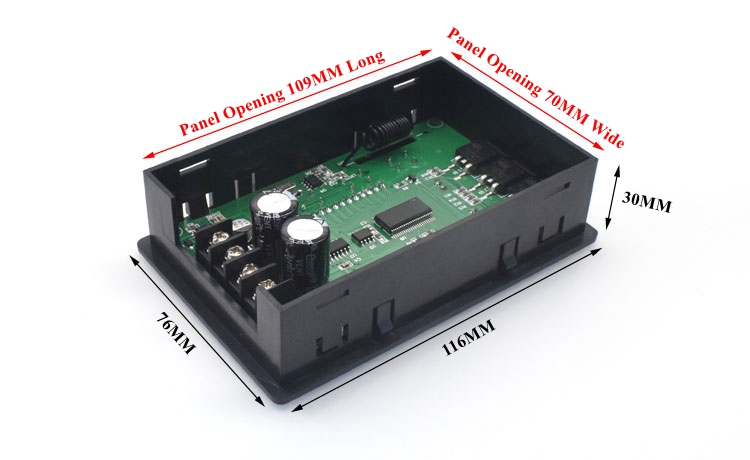

- Module size: 116mm*76mm*30mm (LxWxH)
- Product net weight: 118 grams
- Panel opening: 109mm*70mm (LxW)
- Fixing method: embedded

Package Included:
- 1 x Speed Controller
- 1 x Remote Controller

1-2-3-4-5-6-7-8-9 Function Settings:
Function 1: Slow Start Time Setting
000-100. The time from slow start to 100% speed is adjustable between 0-10 seconds, and the default is 1 second.

Function 2: Slow Stop Time Setting
000-100. The slow stop time is adjustable between 0-10 seconds, and the default is 1 second.

Function 3: Speed Lower Limit Setting
000-080. The minimum speed is adjustable in 0-80%, and is less than the maximum speed setting value, the default is 0.

Function 4: Speed Upper Limit Setting
000-100. The maximum speed is adjustable in 0-100%, and is greater than the minimum speed setting value, the default is 100%.

Function 5: Acceleration and Deceleration Value Setting
001 002 005 010 015 020 025. Each time you press the plus and minus key, the speed changes by 1%, 2%, 5%, 10%, 15%, 20%, 25%.

Function 6: Motor Running Time Setting
1 second to 99 hours, 59 minutes and 59 seconds. The default is 99 hours, 59 minutes and 59 seconds.

Function 7: Motor Stop Time Setting
1 second to 99 hours 59 minutes 59 seconds. The default is 99 hours 59 minutes 59 seconds.

Function 8: Number of Motor Run and Stop Cycles
Adjustable between 1-999 times, the default is 999 times.

Function 9: Timing/No Timing
0 means no timing, 1 means timing, default 1 timing.

Attention:

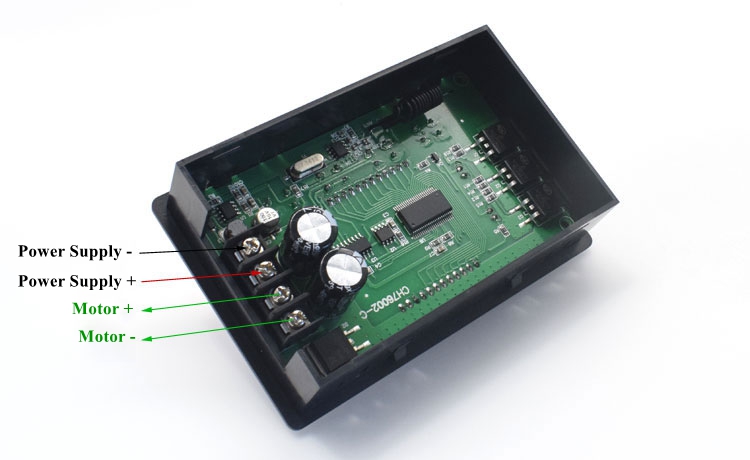

- The input must be divided into positive and negative poles. The input voltage must be equal to the rated voltage of motor (6.5V-55V). For example, when the rated voltage of your motor is 12V, the voltage input to the speed controller is 12V. When the rated voltage of the motor is 36V, the voltage input to the controller is 36V.
- It is forbidden to input 220V.

Long press RUN/STOP to turn backlight on/off.

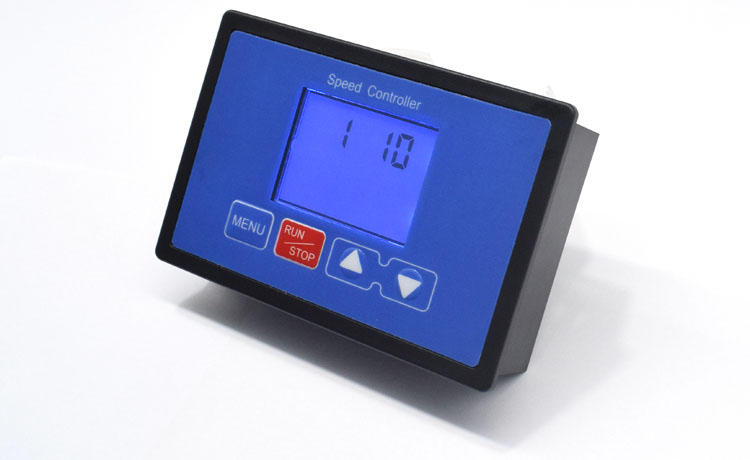

Slow Start Time Setting: Press the MENU button once to enter the function 1 setting interface. Press the plus and minus buttons to set the time, long press MENU to save and exit (10 means 1 second. 100 means 10 seconds).


Slow Stop Time Setting: Press the MENU button twice to enter the function 2 setting interface. Press the plus and minus buttons to set the time, long press MENU to save and exit (10 means 1 second. 100 means 10 seconds).


Speed Lower Limit Setting: Press the MENU key three times to enter the function 3 interface. Press the plus and minus buttons to set, long press MENU to save and exit.


Speed Upper Limit Setting: Press the MENU key four times to enter the function 4 interface. Press the plus and minus buttons to set the value, long press MENU to save and exit.


Acceleration and Deceleration Value Setting: Press the MENU key five times to enter the function 5 interface. Press the plus and minus buttons to switch, long press MENU to save and exit.

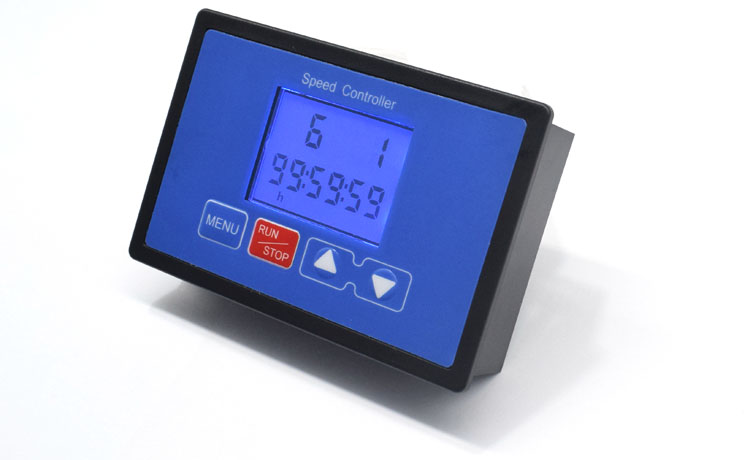

Motor Running Time Setting: Press the MENU key six times to enter the function 6 interface. The default time is 99:59:59. The RUN/STOP key switches between hours, minutes, and seconds. Press the plus and minus buttons to adjust the hour, minute, and second, long press MENU to save and exit.

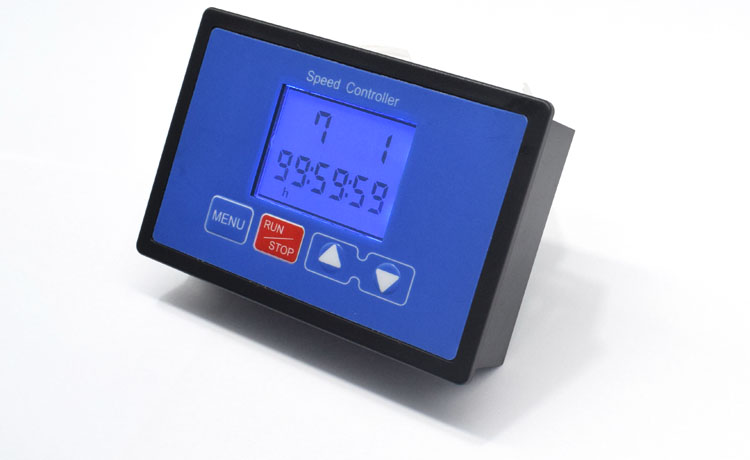

Motor Stop Time Setting: Press the MENU key seven times to enter the function 7 interface. The default time is 99:59:59. The RUN/STOP key switches between hours, minutes, and seconds. Press the plus and minus buttons to adjust the hour, minute, and second, long press MENU to save and exit.

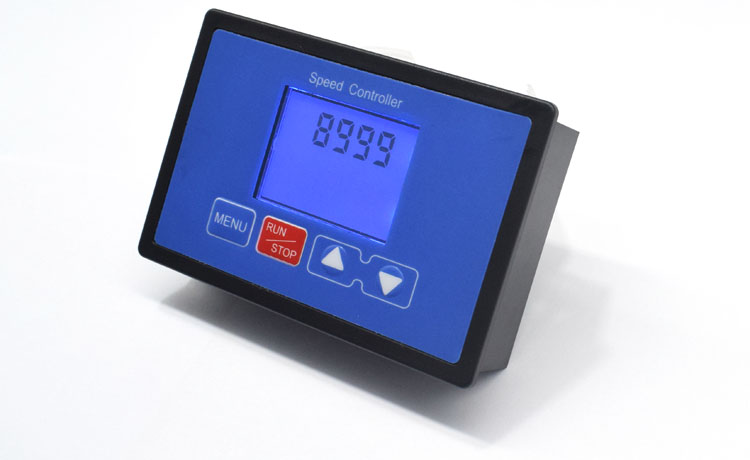

Motor Run-Stop Cycle Times Setting: Press the MENU key eight times to enter the function 8 interface. The default is 999 times, press the plus and minus buttons to adjust, long press MENU to save and exit.

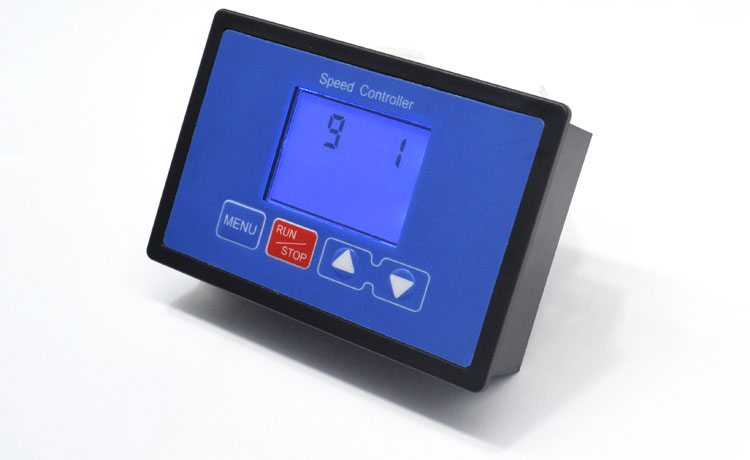

Timing Function Selection: Press the MENU key nine times to enter the function 9 interface. There is a timing function when it is 1 by default. 0 means no timing. Press the plus and minus keys to switch between 1 and 0. Long press MENU to save and exit.


Function 9: 0 means no timing function.
