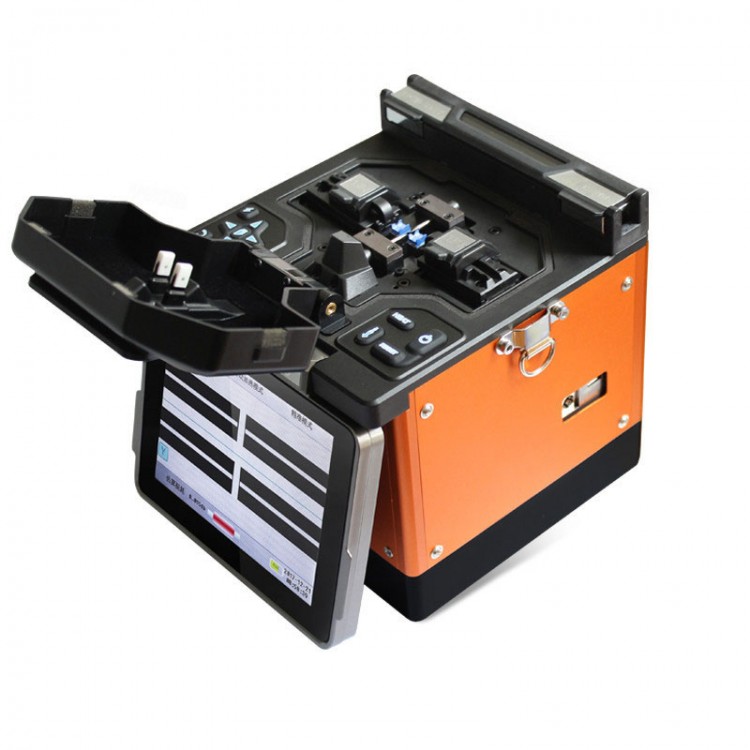

T60 Optical Fiber Fusion Splicer Automatic Fusion Splicer Machine Kit 5 Inch Digital LCD Screen

T60 Optical Fiber Fusion Splicer Automatic Fusion Splicer Machine Kit 5 Inch Digital LCD Screen

Description:
The fusion splicer is easy to operate, fuses fast, with low fusion loss, especially suitable for the construction and maintenance of the optical-fiber works. It is widely used in telecommunications, broadcast & TV, railway, petrochem, electricity, army, police, as well as teaching and research of scientific institutes.

Features:
- Splicing Type: SM, MM, DS, NZDS
- Small size and light weight, only 2.2kg with battery
- View Display: 5 inch 720P digital high-quality LCD screen
- Multi Splicer Machine: fits flex, tail fiber, bare fiber and fiber patch cord
- Splicing Mode: manual, auto; Splicing Loss: 0.02dB(SM), 0.01dB (MM), 0.04dB (DS)
- About 5 second at average of auto welding and splicing
- The Fusion Splicer machine employs high-speed image processing technology and special positioning technology, allowing the total process of fusion splicing to be finished in about 5 seconds
- The X/Y axis X/Y axis or a separate display shows at the same time, 300/200 times magnification
- The PAS core to ensure accurate alignment, low connecting loss
- FTTH applicable to the environment, can also be used for ordinary optical fiber engineering

Specifications:
- Splicing Type: SM, MM, DS, NZDS
- Splicing Loss: 0.02dB(SM), 0.01dB (MM), 0.04dB (DS)
- Applicable Fiber Cable: single or multi mode quartz glass fiber
  Cladding Diameter: 100-150um
  Coating Diameter: 0.1-1.0mm
- Cleaved Length: 16mm
- Average Splicing Time: about 5s
- Heat Time: about 16s
- Power Supply: Built in Lithium Battery; External Charger: Input: 100-240V/50-60Hz, Output: 10.5-12.6V, 10Ah
- Tension Test: Standard about 1.96N
- Anti-Wind Capacity: Allows wind speed of 15m/s
- Splicing Mode: Auto/Manual/Pause Mode I/Pause Mode II/ Pause Mode III
- Heat Shrinkable Sleeve: 60mm, 40mm 60Ny8, 40Ny8 & Micro Heat Shrinkable Sleeve
- Storage Capacity: Store more than 8000 set of fusion splicing data
- Operating Condition: 0-5000m Above Sea Level
- Temperature: -10-60℃
- Humidity: 0～95%RH (No Dew)
- N.W.: 2.2 kg (with battery)
- Item Size: 147 x 135 x 135 mm (L*W*H)

Package Included:
- 1 x Tool Box
- 1 x Cutter Knife
- 1 x Electrode Rod
- 1 x Strap Set
- 1 x Alcohol Pump
- 1 x Miller Clipper
- 1 x Charger
- 1 x Power Adapter
- 1 x Wire Stripper
- 1 x Dust Remover Ball
- 1 x User Manual
- 1 x Factory Test Report
- 1 x Parts List
- 1 x Warranty Card
