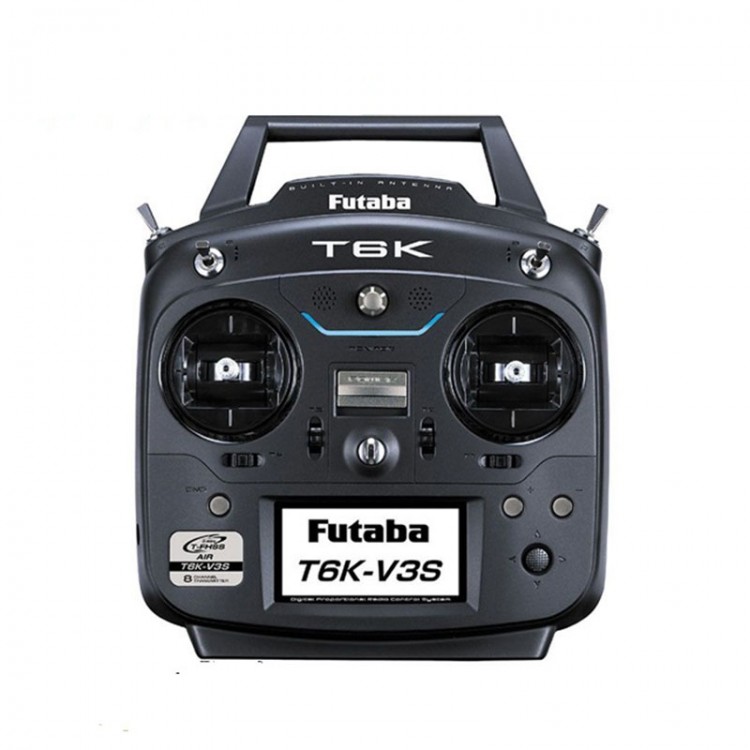

T6K-V3S 2.4G RC TX RX 8-Channel Transmitter Right Hand Throttle Standard Version w/ R3006SB Receiver

T6K-V3S 2.4G RC TX RX 8-Channel Transmitter Right Hand Throttle Standard Version w/ R3006SB Receiver

Attention:
1. When using some simple simulators sold by Taobao, the device for FUTABA may cause the failure of high frequency module due to the non-standard line sequence of the simulator's square wire, or due to the abnormal current of the pins. Please pay special attention.
2. The interval between power on and off should not be too short. Do not switch the power button back and forth frequently and quickly, as it may cause the failure of high frequency module due to the power on current.
3. When you are using a charger to charge the device for FUTABA, do not turn it on, which may cause damage to the power supply module.

Description:
The new T6K-V3S 2.4G RC transmitter for FUTABTA can be used with a receiver. It supports fixed-wing models, F3K, helicopter and multi-rotor models. Its software and hardware supports 8 channels. It is the most cost-effective device in the full range of products. It's a great choice for novices to get started!

Features:
T-FHSS AIR/S-FHSS 2.4 GHZ MULTI FUNCTION 8-CHANNEL TRANSMITTER:
The 2.4 GHz T-FHSS Air system/S-FHSS system is employed.

TELEMETRY SYSTEM (CAN'T BE USED IN CASE OF S-FHSS):
A T-FHSS Air bidirectional communication system is used. The voltage of the battery (not included) mounted in the fuselage can be displayed at the transmitter during flight. Altitude, temperature, RPM, current, and voltage data can be displayed at the transmitter by installing various optional telemetry sensors in the fuselage.

SPEECH FUNCTION (T-FHSS ONLY):
Telemetry data can be listened to by plugging commercial earphones into the transmitter.

BUILT-IN ANTENNA:
Antenna built into the transmitter provides a simple appearance and improves handling ease.

S.BUS/S.BUS2 SERVO SETTING FUNCTION:
S.Bus/S.Bus2 servo channel and various functions can be set by connecting the servo to the transmitter.

VIBRATION:
A function that alerts the operator of various alarms by vibrating the transmitter can be selected.

UNIQUE MODEL MEMORY SYSTEM:
The transmitter body contains a 30 model memory.

MIXING TYPE SELECTION:
Fixed wing, helicopter, and glider mixing type can be selected to match the fuselage. In addition, 6 swash plate types can also be selected for helicopters. Multi-copter selection is also possible.

DIGITAL TRIM:
Rapid trimming during flight is possible. The sound changes at the center of trim. The step size can be arbitrarily changed. The trim position is displayed on the LCD.

LEVER HEAD ADJUSTMENT:
The lever head length can be adjusted. Lever head shape that reduces slip during operation has been adopted.

SWITCH/VR POSITION CHANGE AND AUX CHANNEL FUNCTION CHANGE:
Mixing and other switches and VR can be selected. Since the function of the AUX channels (CH5-CH8) can also be changed, original mixing, in addition to existing mixing, can be created by using the programmable mixing function.

MODEL DATA TRANSFER FUNCTION:
Model data can be wirelessly transferred between 6K.

Updates from T6K -> T6K-V3S:
- Switch D is changed from 2-position to 3-position.
- Glider functions strengthened (Added wing type 2AIL-B, Trim-mix for rudder, conditions increased from 3 to 4)
- Timer (Added 1 more time and having 2 timers)
- Helicopter function (Governor gain added)

Transmitter Specifications:
- Transmitter frequency: 2.4 GHz band
- System: T-FHSS Air, S-FHSS, switchable
- Frequency band: 2.4 GHz
- RF power output: 100mW EIRP

Compatible Receivers:
For T-FHSS AIR Receivers:
* R3001SB
* R3004SB
* R3006SB
* R3008SB
* CGY760R

For T-FHSS AIR Mono Receivers:
* R3106GF
* R3206SBM (Telemetry not available)

For S-FHSS Receivers:
* R2001SB
* R2106GF
* R2006GS
* R2008SB
* R2000SBM

Package Included (Standard Version):
1. T6K-V3S transmitter x1
2. R3006SB receiver x1
3. Three-wire switch x1
4. Plastic screwdriver x1
5. English instruction manual x1
6. Warranty card x1

Packaging Details:
- Weight: 1.5kg

Note:
- 4pcs AA alkaline batteries are not included.
