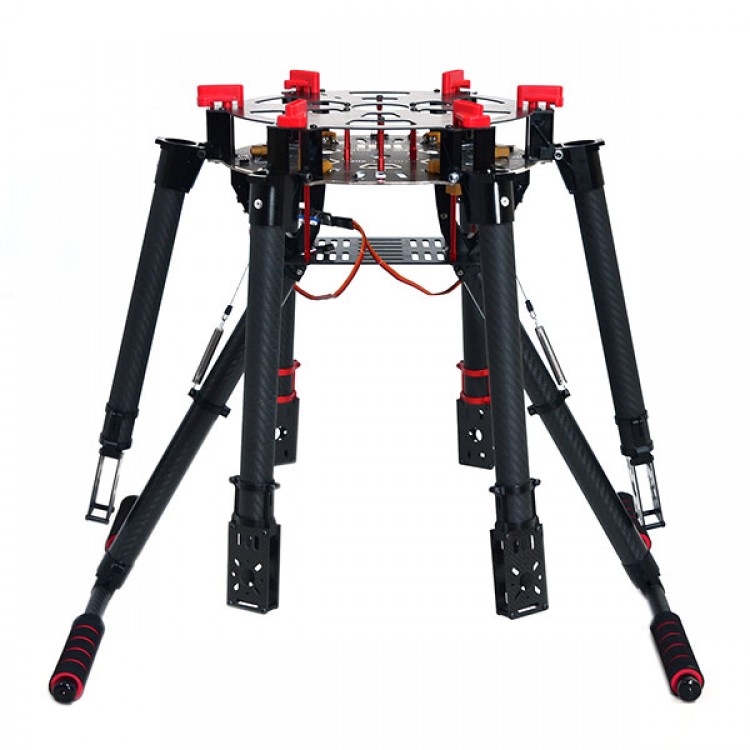

T900 6 Axis Carbon Fiber Hexacopter Frame Kits No Electronic Landing Gear for Multicopter FPV Photography

T900 6 Axis Carbon Fiber Hexacopter Frame Kits No Electronic Landing Gear for Multicopter FPV Photography

Features:
- Center board: 270MM
- Arm length: 315MM
- Wheelbase: 845mm
- Upper center board can be took down
- Suitable for DJI , Sunnysky, Tarot brushless motor
- Suitable for 15 inch prop
- Metal folding head, with S1000 rotary buckle, 2MM 3K carbon fiber bottom board
- 1.5MM 3K carbon fiber upper board,
- 5-8 degrees of tilt angle
- Default sending carbon fiber motor base (metal motor base can be another option, if you need it, leave us a message)
- Gimbal mounting kits are suitable for DJI series gimbal, including Z15, 5D, GH3 gimbal
- Wide battery fixing board, battery can be mounted on the board to avoid touching the lower board, support
10000MAH, 12000MAH, 16000MAH, 22000MAH

Parameters:
- Diagonal wheelbase: 845mm
- Arm length: 315mm
- Single arm weight: 80g
- Center board dia: 270mm
- Weight: 1.5kg
- Laning gear size: 510*400*375mm

Recommending configuration: (not included)
Motor:
- 41 series
- Stator size: 40.5mm
- KV : 400KV
- Max power: 550W
- Weight: 145g

ESC:
- Operating current: 6S 30A
- Voltage: 6S 22.2V
- Weight:31.6g
Prop:
- DJI 1552
- Material: nylon+carbon fiber+plastic
- Size: 15 inch
- Weight: 10g

Flying parameters:
- Max take off weight: 8.5KG
- Weight: 4.2KG
- Battery: 22.2V 10000MAH 25C
- Max power: 3300W
- Suspending time: 30mins
- Operating temp:  -10-----50degree

Package includes:
- Hexacopter frame kits x 1 (Landing gear not included)
