HiFi UCD700 Fully Discrete Power Amplifier Board 700W Digital Mono Class D Audio Amplifier Module
$34.90
UCD400 Multifunctional Power Amplifier Board Class D HiFi Audio Amplifier Module for HYPEX
$95.38
UCD400LP Power Amplifier Board High Performance Class D HiFi Audio Amplifier Module Fully Passive Loop Control for HYPEX
$60.40

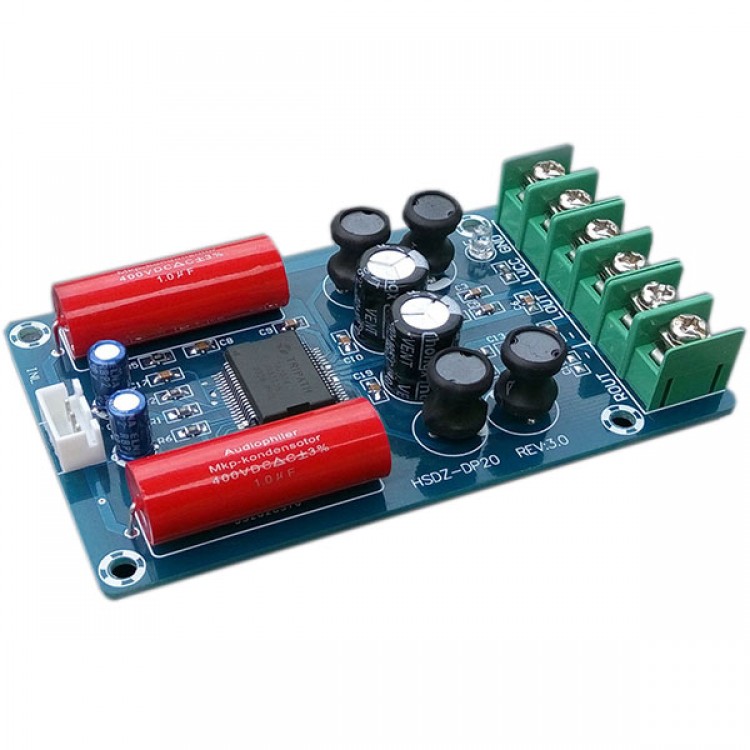

TA2024 T Class Digital Amplifier 15W+15W Audiophlier+ELNA RBP2 Mini PC Desktop Amp Plate
Description:
- 2*15W TA2024 T type audio amp
- Weight: 50g
- Power supply voltage: DC12V
- Size: 90mm (L) × 53mm (W)× 16.50mm (H) ± 2mm
- Output power: VS = 12V
- 15W each channel (4 ohm, 10% total harmonic wave distortion+noise)
- 10W each channel (4 ohm, 0.1% total harmonic wave distortion+noise)
- Used for Tripath tech TA2024C
- High fidelity:
0.04% total harmonic distortion+noise (9Wrms,4ohm)
0.18% distortion (1Wrms, 4ohm)
- Effciency: >88% RL+8ohm
- Each channel reaches 15W, no need cooling fin
- MUTE and SLEEP input
- Built in start up impulsive sound, eliminating circuits, no impulsive sound
