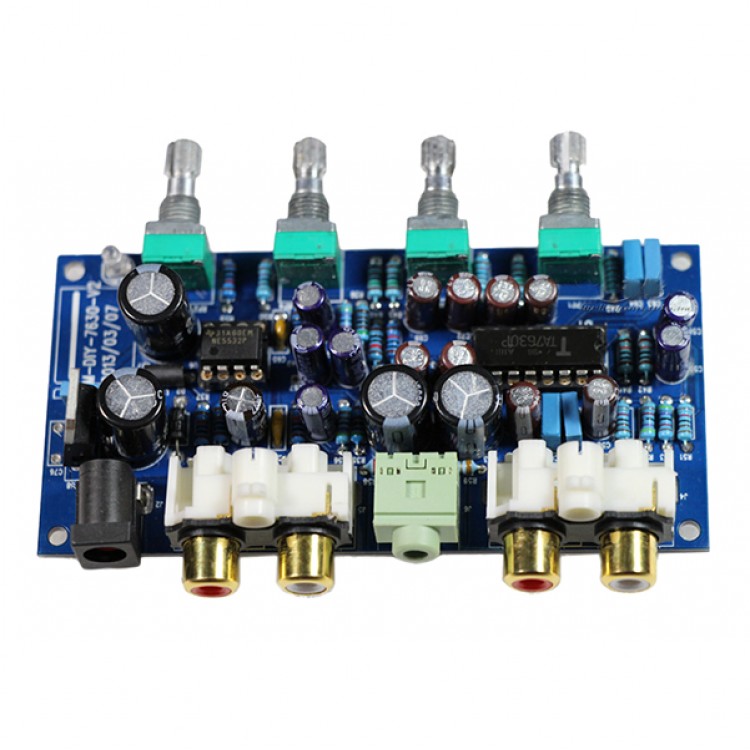

TA7630 HIFI Fever Pitch High Quality Amp Amplifier NE5532 Board Strip Pure DC Regulator
Description:
- TA7630 as a good chip, because the less publicity, or other reasons, is buried in the DIY market, its reputation, relative to other chip has the following advantages:
- DC regulator, using a single joint ordinary potentiometer can achieve good results, dual-channel consistency is very good, even if the potentiometer lead lengthened or not to introduce noise and affect the sound quality, suitable for DIY amplifier.
- tone adjustment from 0-5V uniform volume up, unlike other potentiometer LM4610 only half open to the sound does not comply with usage.
- the analog flavor is adequate, suitable with modern digital sources, corresponding to bridging the digital sound has a certain effect.
- high bass boost natural, very resistant to listen.
- the board especially with the amp, the corresponding computer is very popular today, you only need to add a headset, you can sink into a personal HIFI world.
Board material: the use of military grade PCB board, colored ring metal film resistors, capacitors KINGBOX Siemens capacitors everywhere, Taiwan production of high-quality potentiometers, gold-plated transposon amp NE5532 other part is the classic
Performance parameters:
- SNR 90DB
- Headphone Impedance 30-300 ohms Power 100MW
- Line level 0DB
- Supply Voltage DC12-16V
- Size: 10CM * 5CM * 2.1CM
Package list:
-1 x TA7630 HIFI Fever Pitch High Quality Amp Amplifier
