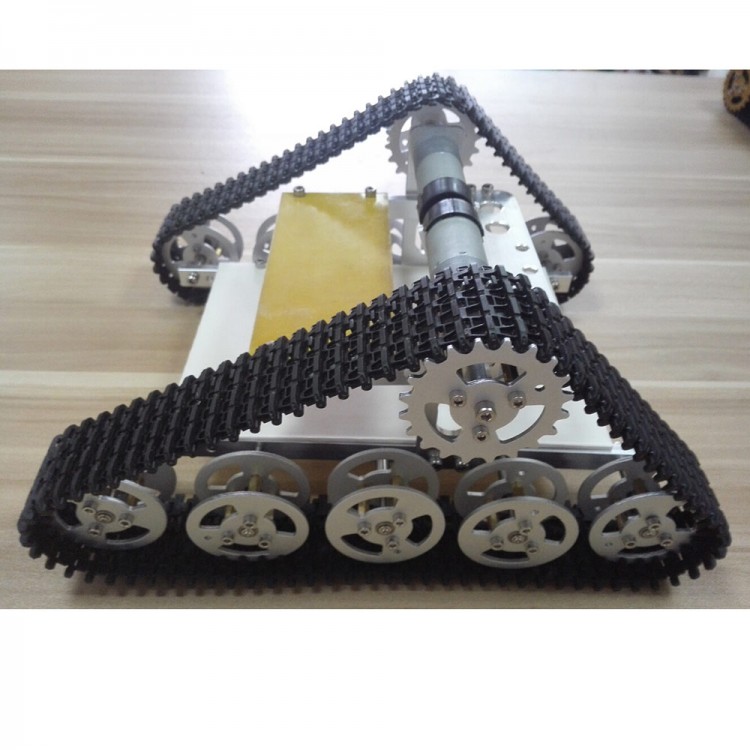

Tank Car Chassis Crawler Plastic Track Caterpillar Chassis for Arduino DIY Robot T150-Silver
Description:
- Name: T150 silver version metal tank chassis
- Car body:metal (Aluminum alloy)
- Wheel: metal(Aluminum alloy)
- Track: Plastic, black
- Product size: 275* 240 *135mm (length * width * height)
- Working voltage: 7~12V
- The tank whole weight: 1.1kG
- Working carrying capaticy:3KG
- Color: Silver
Motor Parameters:
- Name:25mm gear motor
- Output speed: 150±10%rpm
- No load current: 200mA (Max)
- Stall current: 4500mA(max)
- Stall torque: 9.5kgNaN
- Rated speed: 100±10%rpm
- Rated torque: 3KG.CM
- Rated current: 1200mA (Max)
- Noise :56dB
- Working voltage: 9V
- Outside Shaft Length: 14.5mm
- Shaft End Play: 0.05-0.50mm
- Screw Size: M3.0
- Dia. Of Shaft phi 4mm, D3.5
- Encoder: 2pulses/circle
Package List:
- 1 x Car Chassis
