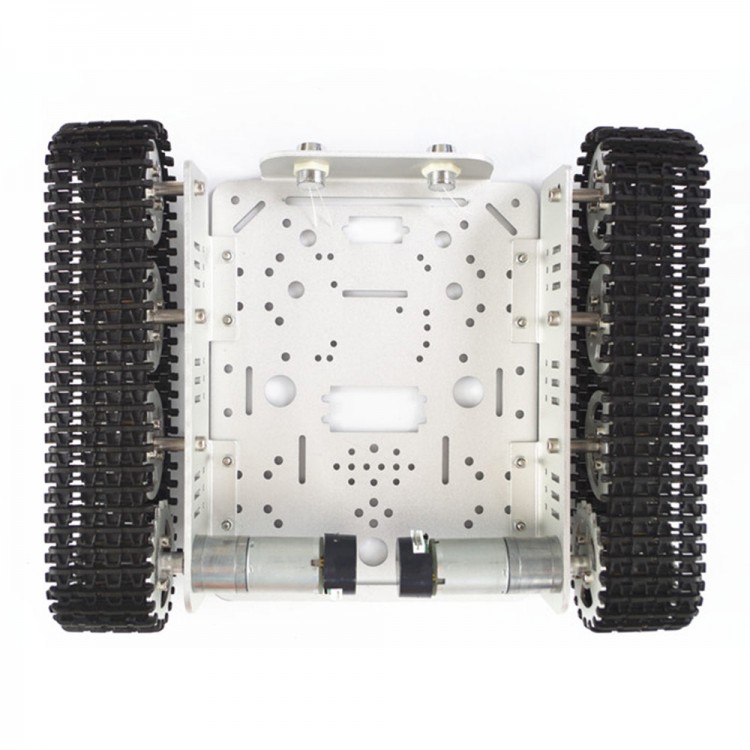

Tank Chassis Caterpillar Crawler Metal Track Car Vehicle Chassis for Robot Model DIY Unassembled T200

Tank Chassis Caterpillar Crawler Metal Track Car Vehicle Chassis for Robot Model DIY Unassembled T200

Features:
- Noveland elegant appearance;
- Aluminum alloy;
- Solid structure;
- Powerful force;
- Quickly,stability, flexibility;
- Strong power;

Installation interface:
- Mounting hole for Arduino UNO R3
- Mounting hole for NodeMCU WiFi develolopment module
- 9g servo mount
- Mounting hole for servo like MG996R,MG995
- Mount for manipulator
- Two mounts for lights





Parameters:
- Name: T200 tank chassis/ track car/Caterpillar/ Crawler
- Car body:metal (Aluminum alloy)
- Wheel: metal(Aluminum alloy)
- Controller: No
- Not included battery
- Not assembled
- Material: aluminum alloy
- Surface oxidation: Yes
- Color: Silver
- Track: Metal (silver)
- Size: 210*210*60mm (L * W * H)
- Weight: 1.2kg
- Work load: 7KG

Motor parameters:
- Name: 25mm DC brushless motor (with Holzer sensor and encoder)
- Output rate: 150 + 10%rpm
- Load current: 200mA (Max)
- Locked rotor current: 4500mA (max)
- Locked rotor torque: 9.5kgNaN
- Load speed: 100 + 10%rpm
- Load torque: 3000gNaN
- Load current: 1200mA (Max)
- Load noise: 56dB
- Working voltage: 9V
- Shaft extension dimension: 14.5mm
- Axial clearance: 0.05-0.50mm
- Screw size: M3.0
- Axial diameter: phi4mm, D3.5
- The encoder parameters: 2 pulses / ring

Package List:
- 1 x Tank Chassis
- 2 x Sideboard
- 2 x Driving wheel
- 6 x Bearing wheel
- 2 x Track
- 2 x DC motor (with Holzer sensor)
- Screws
