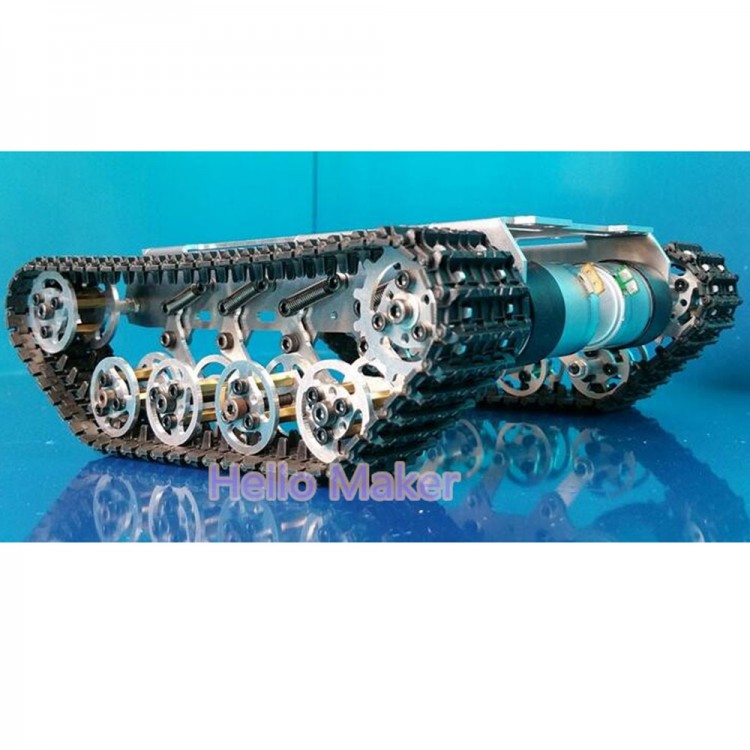

Tank Chassis Tracked Vehicle Caterpillar Shock Absorption for Crawler Robot Model Smart Tank
Specification:
- Name: Tank chassis/tracked vehicle/Caterpillar/Crawler
- General size: 241mm*212mm*78mm (L * W * h)
- Operating voltage: 9 to 12V (9V,over 110 RPM)
- Material: Metal
- Motor: 2pcs
- Function: Can forward and back, turn left and right and go round ,etc
- With independent suspension and damping system on the chassis
- Reserve a servo mount
Motor parameters
- Name: 25mm DC brushless motor (with Holzer sensor and encoder)
- Output rate: 150 + 10%rpm
- Load current: 200mA (Max)
- Locked rotor current: 4500mA (max)
- Locked rotor torque: 9.5kgNaN
- Load speed: 100 + 10%rpm
- Load torque: 3000gNaN
- Load current: 1200mA (Max)
- Load noise: 56dB
- Working voltage: 9V
- Shaft extension dimension: 14.5mm
- Axial clearance: 0.05-0.50mm
- Screw size: M3.0
- Axial diameter: phi4mm, D3.5
- The encoder parameters: 2 pulses / ring
Package List:
- 1 x Tank Chassis
