Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $652.75 | $639.43 | $619.45 | $592.80 | Contact US |

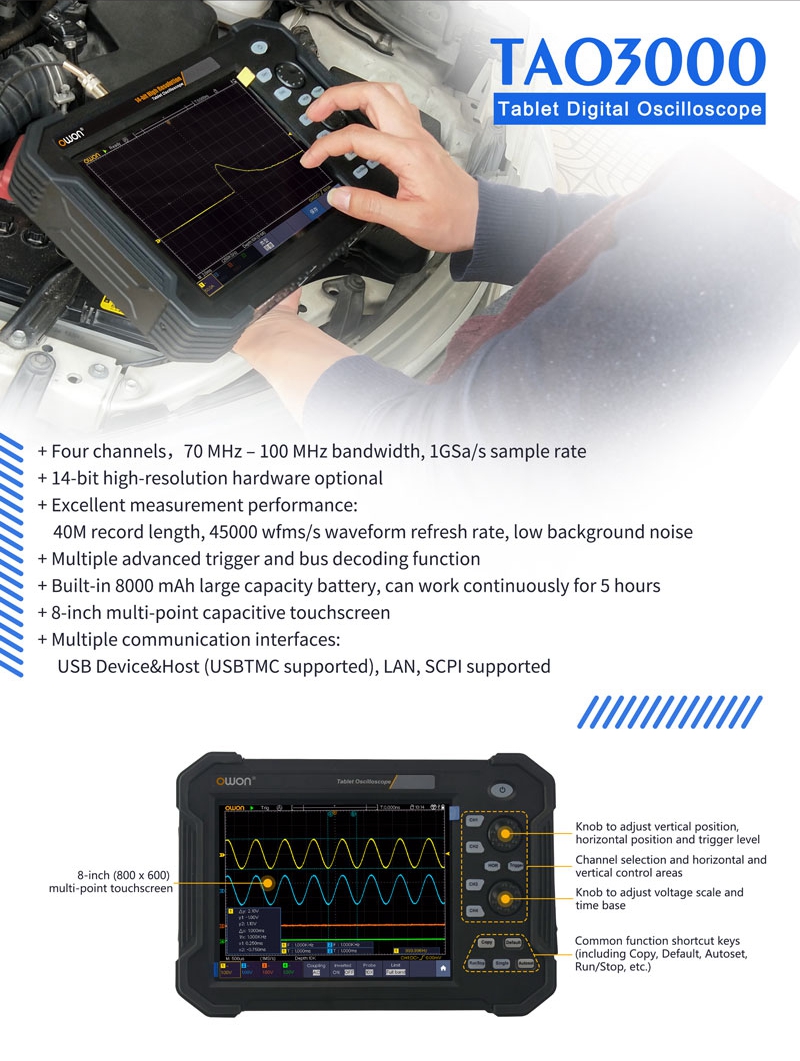

TAO3074A 70MHz 4-Channel 8/12/14bits Handheld Tablet Digital Oscilloscope with 8-inch Multi-point Touch Screen
Specification:
- Bandwidth: 70MHz for TAO3074 and TAO3074A; 100MHz for TAO3104
- Sample Rate: 1GS/s
- Vertical resolution (A/D): 8 bits for TAO3074 and TAO3104; 8bits/12bits/14 bits for TAO3074A
- Record length: 40M
- Waveform refresh rate: 45000wfms/s
- Horizontal Scale (s/div): 1ns/div - 1000s/div, step by 1 - 2 - 5
- Channel: 4
- Display: 8" color LCD, 800 x 600 pixels display, multi-touch screen
- Input Impedance: 1MΩ ± 2%, in parallel with 15pF ± 5pF
- Max input voltage: 1MΩ ≤ 300Vrms
- Probe attenuation factor: 0.001X - 1000X, step by 1 - 2 - 5
- Input coupling: DC, AC, GND
- Vertical sensitivity: 1mV/div - 10V/div (at input)

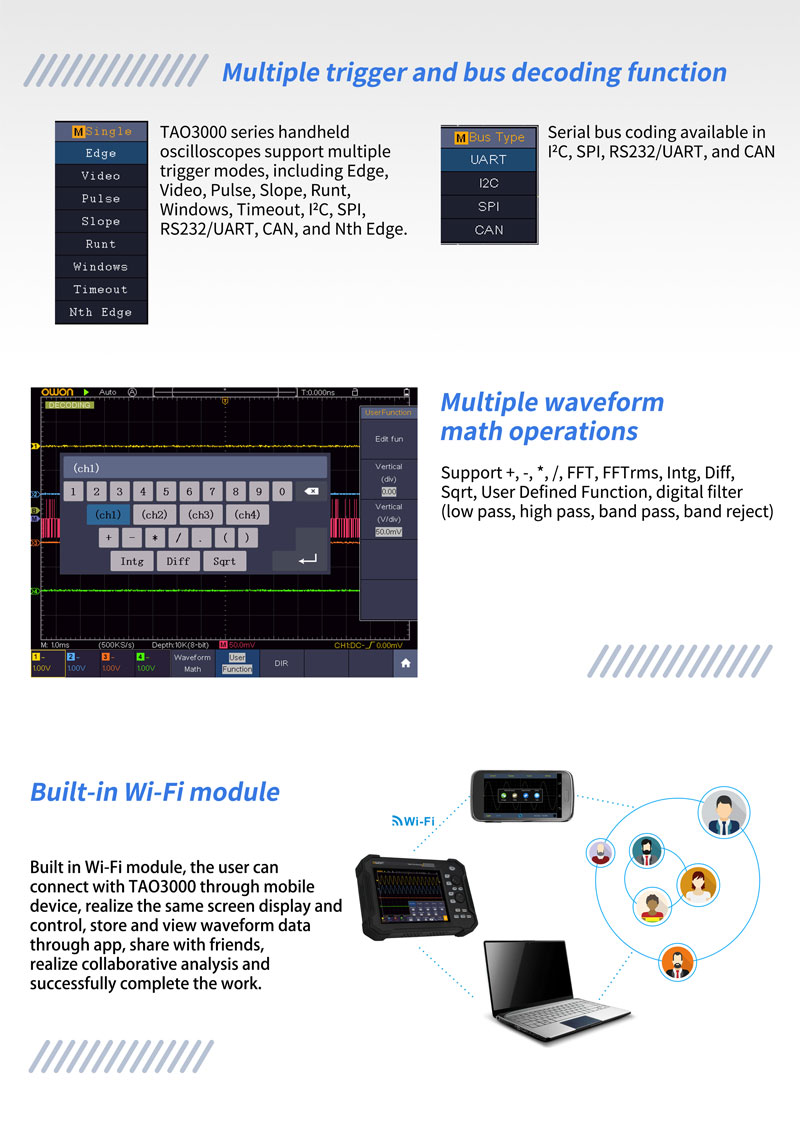

- Trigger type: Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, UART(RS232), and CAN (optional)
- Bus decoding (optional): I2C, SPI, UART (RS232), CAN
- Trigger mode: Auto, Normal, and Single
- Automatic measurement: Vpp, Vavg, Vrms, Freq, Period, Week RMS, Cursor RMS, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Phase A→B ↑, Phase A→B↓, Preshoot, Rise Time, Fall Time,+Width, -Width, +Duty, -Duty, Duty Cycle, Delay A→B ↑, Delay A→B↓, +Pulse Count, -Pulse Count, Rise Edge Count, Fall Edges Count, Area, Cycle Area
- Waveform Math: +, -, ×, ÷, FFT, FFTrms, Intg, Diff, Sqrt, User Defined Function, Digital Filter
- Waveform storage: 100 waveforms
- Communication interface: USB host, USB device, USB port for PictBridge, LAN, and WIFI (optional)
- Frequency counter: available
- Battery: 7.4V, 8000mAh, 5 hours operation
- Dimension (W x H x D): 270 x 191 x 48mm
- Weight: About 1.7kg
Package Included:
- 1 x Set of Spectrum Analyzer
