Tarot 5.8G AV TX OSD 25/200/600MW 7086 48CH Map Transmission TL300N6

Tarot 5.8G AV TX OSD 25/200/600MW 7086 48CH Map Transmission TL300N6

Product Features Description:
- Can be adjusted according to demand transmission power, 25mW / 200mw / 600mW
- Support OSD tunes 5.8G adjustable power map transmission
- Support Betaflight flight control OSD configuration map parameters
- 5V BEC output, can give the receiver, camera power supply
- Zero interference on power and switching channels will never interfere with other users

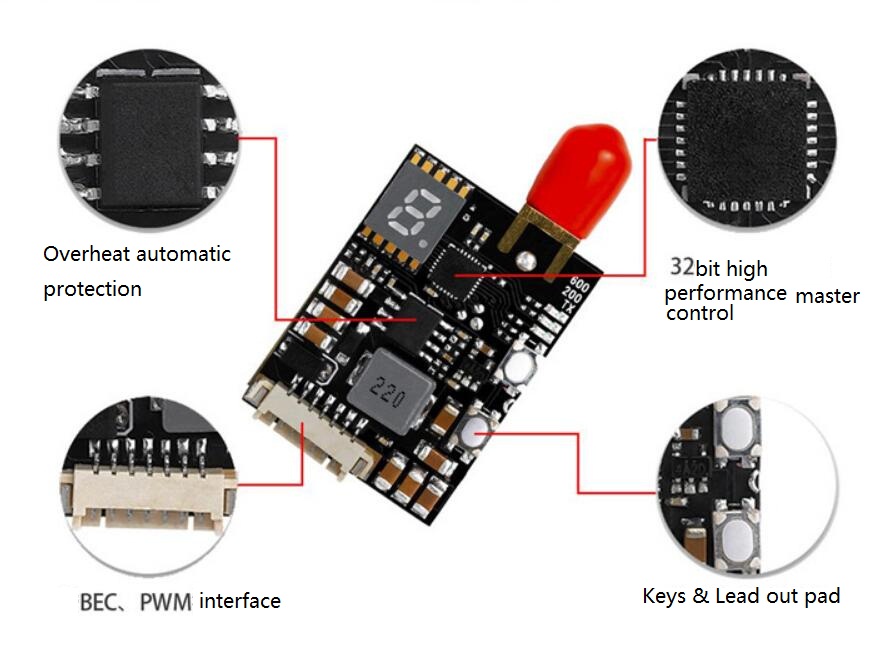

- With overheating automatic protection, to prevent the module overheating damage
- With the protection function, forgetting the antenna will not damage the module
- Supports OSD configuration channel, power and switch PITMODE mode
- Supports PWM switching channels and switches PITMODE mode
- Can lead to the key in the body outside the tune parameters
- Mini digital display

Parameter:
- Size:32.5x22.6x7.25mm
- Display/key:1x digital tube;2xkeys
- Working voltage:DC6-24V
- Working current:130mA (25mW)/230mA(200mW)/280mA (600mW)/12V
- Working frequency:5.8G

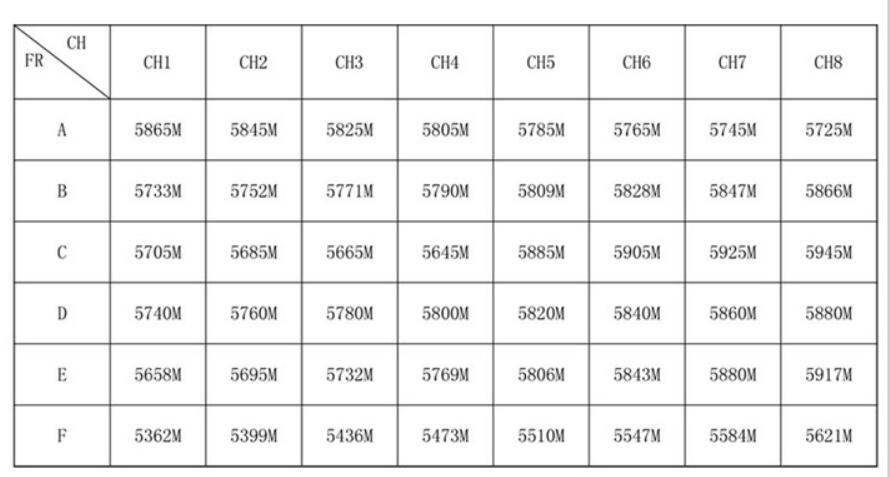

- Working channel:48CH
- Transmision power:25mW/200mW/600mW/transmission switch off,adjustable.
- Antenna interface:PR-SMA(External thread internal needle)
- Transmitting distance:25mW/200m 200mW/1.5km 600mW/5km (open ground,clover antenna)

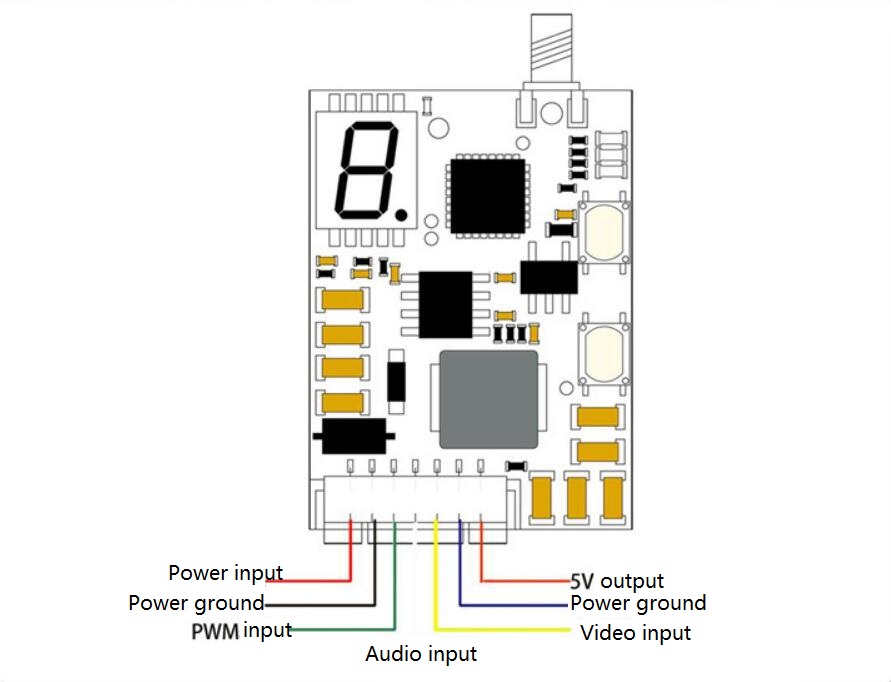

- Interface:7pin cable (power input,power ground,PWM input,audio input,5V output,power ground,video input)

Product Specifications:
- 1 x 5.8G 25/200 / 600MW 7086 48CH transmission
