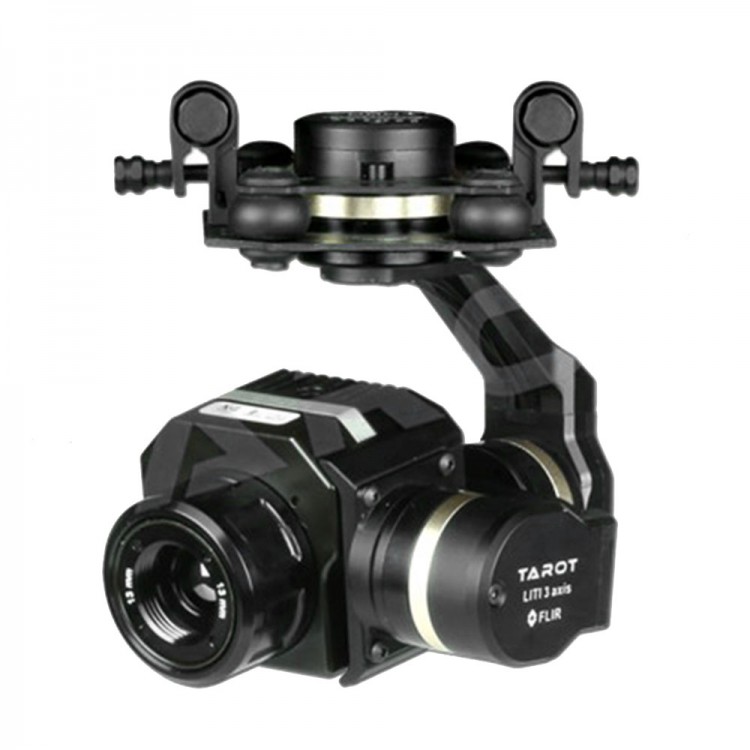

Tarot FLIR 3 Axis Gimbal PTZ + Camera Kit for FPV Quadcopter Drone Multicopter TL01FLIR

Tarot FLIR 3 Axis Gimbal PTZ + Camera Kit for FPV Quadcopter Drone Multicopter TL01FLIR

Gimbal software download: Click here

FLIR Vue640 Camera:
- Wave: 7.5-13.5um
- Frame frequency: 9Hz
- Pixels: 17um
- Resolution: 640*512
- Not support APP blutooth parameters setting
- Not support SD storage
- Not support image video storage
- Not support MAVLink integration and thermal imaging control
- Not support temperature measurement information superposition

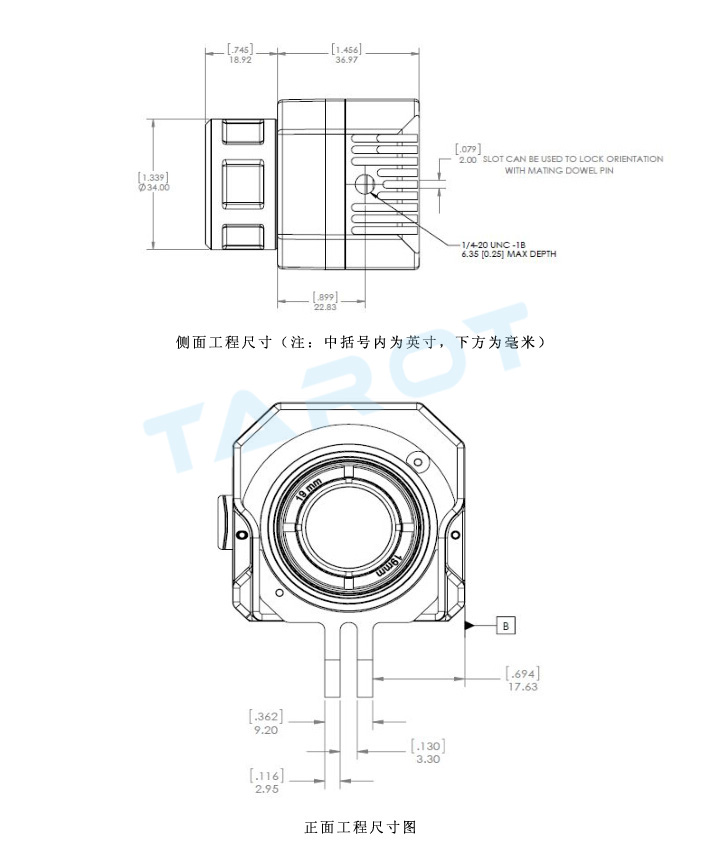

- Size: 57.4-44.4mm
- Weight: 92.1-113.4g
- Analog NTSC,PAL video interface: Support
- Input power voltage: 4.0-6.0VDC
- Working temperature: -20~50 deg C
- Level control and palette: Support-adjust in GUI
- Working altitude: 12,200m

Gimbal Features:
- Suitable for camera: Flir VUE 336, VUE640, Vue Pro 336, Vue Pro 640
- Input power : 3S-6S Li (11V-26V)
- Working current: 30mA (@25V) / 50mA (@12V)
- Stall current: 350mA (@25V) / 700mA (@12V)
- Attitude control accuracy: + 0.02 degrees

Maximum controllable speed:
- Direction of rotation (PAN): + -200 degrees /s
- Pitch direction (TILT): +- 200 degree /s
- Rolling direction (ROLL): +- 200 degrees /s

Controllable rotation range:
- Direction of rotation (PAN): +-125 degree
- Pitch direction (TILT):-120 to +80 degree C
- Rolling direction (ROLL): -+ 50 degree
- Support S-Bus/PPM/DSM receiver
- Working environment temperature:  -20 C ~+50 C
- Maximum size (with camera): 79mm*98mm*95.5mm

Software requirement: Windows XP,Windows VISTA,Windows 7,Windows 8(32 or 64 bit)

Package incluede:
- 1 x Tarot FLIR 3 Axis Gimbal
- 1 x Flir VUE 640 camera
- 1 x Gimbal control module (36×25×11MM)
- 1 x Connecting line
- 1 x 5V output,receiver and video cable
- 1 x USB module (27*21*7mm)
- 1 x Flight controller connection cable
