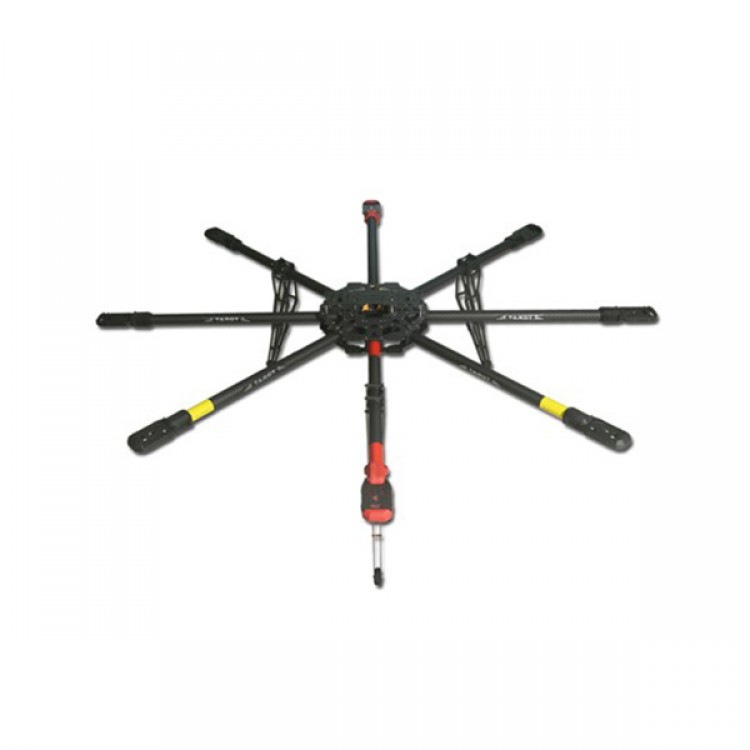

Tarot IRON MAN 1000S Otcacopter Unmanned Multicopter Frame Kit TL100C01
Description:
- This is newly produced fixed octacopter unmanned multicopter with plastic motor fixed base, adopting 3K pure carbon fiber weaver CNC machining method
- 2.0 thickness pure carbon fiber matte weaver board surpasses standard product
- Motor base adopts imported enhenced PC high voltage injectiion, attracting outlook and light weight
- The frame kit only weight 1.65KG,
- Load is 5kg, suitable for 5DII, RED EPIC、C300、FS100、FS700 for FPV phototgraphy
Recommended Configuration:
- 4114/320KV multiaxis brushless motor TL100B08
- 5008/340KV multirotor brushless motor TL96020
- 15-16 high efficiency multiaxis brushless motor TL2812
- 40A multiaxis brushless ESC
- 6S power battery 15000MAH
Parameters:
- Tube dia: 25MM
- Wheelbase: 1160MM
- Frame dia: 1250MM
- Total height: 400CM
- Center plate board: 250×240 MM
- Suitable for: 15-16inch multicopter CW CCW prop
- Motor instal hole distance: 16MM/19MM/25MM/27MM equilateral triangle
- Weight: 2.05KG
Specification:
- Pure carbon fiber upper center board(250×240×2.0MM)×1
- Pure carbon fiber upper center board(250×240×2.0MM)×1
- M3 gimbal nut ×48
- Pure carbon fiber battery fixed base(220×63×2.0MM)×1
- Pure carbon fiber convert center plate(73×73×2.0MM)×1
- M3×35MM(H7)hexagonal alluminum spacer×6
- M3×12MM(H7)hexagonal alluminum spacer ×4
- Full carbon fiber motor convert board (35×38.6×2.0MM)×16
- Dia 25MM 3K full carbon fiber tube(495MM)
- Dia 25MM motor fixed base group ×8
- M3×24 cup hexagonal shaft screw ×24
- Pure carbon fiber landing gear left side board(345×150×2.0MM)×3
- Pure carbon fiber landing gear right side board(250×240×2.0MM)×3
- Dia 25MM gimbal fixture ×60 (Dual Color)
- M3×35 Cup Shaft screw×60
- Damper sponge wheel ×3
- M3×10MM alluminum spacer ×3
- M3*5MM half round screw ×18
- M2*18MM hexagonal thread screw ×3
- M2 antislip nut ×1
- Dual color paste ×4
- Paste ×8
- Battery magic paste ×1
- Manual ×1
