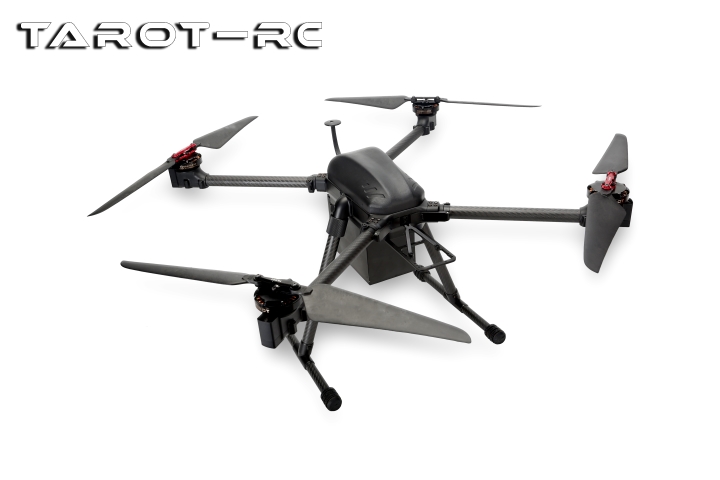

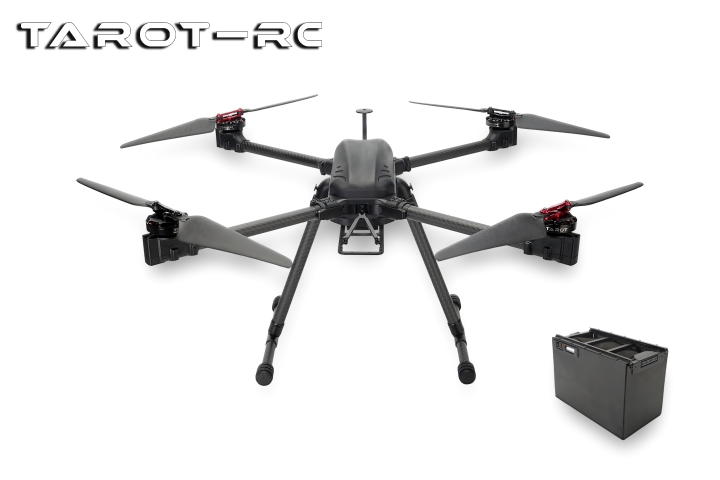

Tarot M690A 690mm Wheelbase Quadcopter Frame Kit Aluminum Drone Frame Kit with Power System Battery

Tarot M690A 690mm Wheelbase Quadcopter Frame Kit Aluminum Drone Frame Kit with Power System Battery

Description:

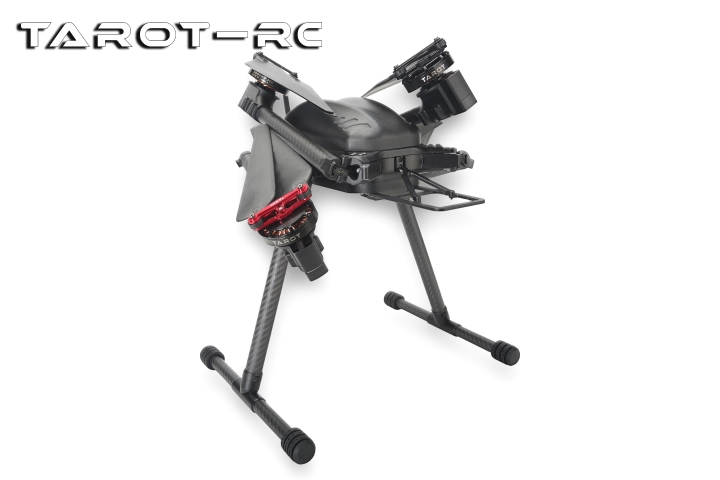

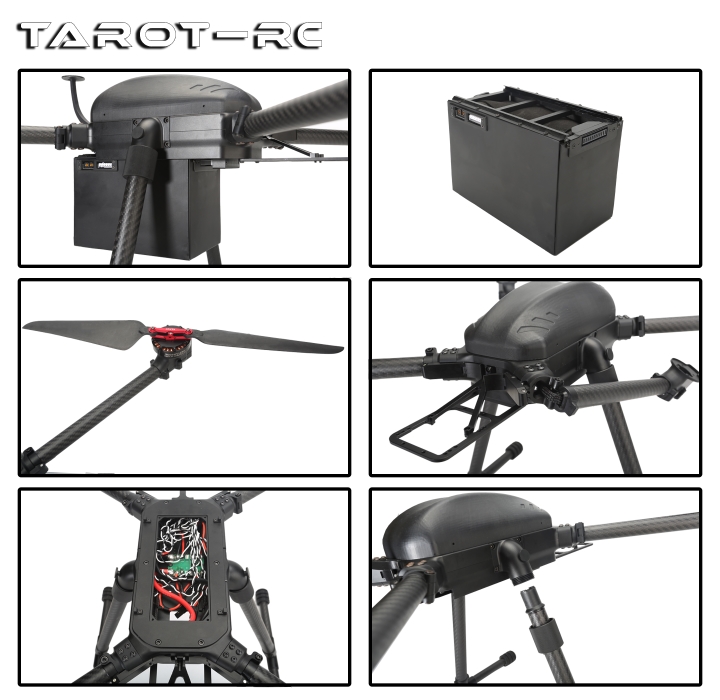

It is a Tarot quadcopter frame kit, designed for professional aerial photography users. The set includes a frame, motors, ESCs, blades, and a quick-release battery pack. It boasts all-aluminum alloy integrated center compartment, novel quick-release T-shaped landing gears, and foldable arms. Overall, it is lightweight and easy to carry.

The no-load take-off weight is about 4.3KG, and the maximum additional load is 1KG. Thus, it can easily be equipped with aerial photography equipment such as SLR. It has a long endurance of 50 minutes without load. You can upgrade the configurations to increase battery life.

Specifications:
- Empty weight: 2.18kg
- Battery weight: 2.14kg
- Take-off weight: 4.32kg
- Maximum wind resistance: Category 6 wind
- Flight range: 4000 meters
- Flight altitude: 3000 meters

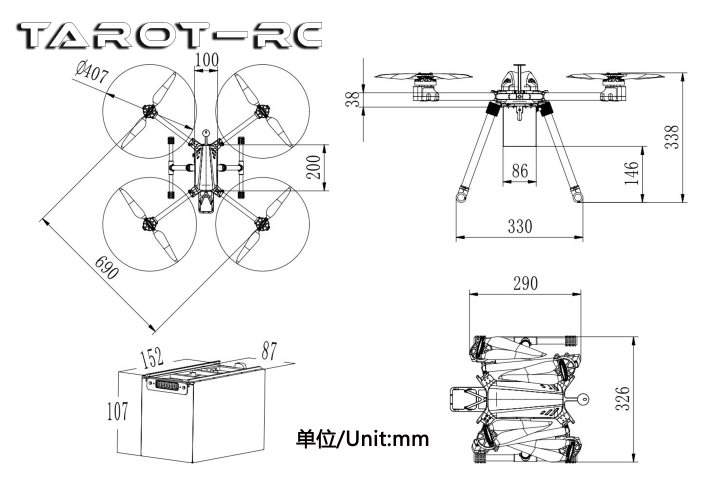

- Aircraft wheelbase: 690mm
- Wingspan: 893mm
- Folding wheelbase: 290*326mm
- Central compartment dimensions: 200*100*38mm
- Aircraft height: 338mm
- Battery size: 152*107*87mm
- Flight modes: self-stabilization, altitude fixing, holding, one-key return, etc.
- Test environment: Sunny 35°C and level-2 wind force. The battery life is related to the test environment and battery capacity
- No-load flight: 18A≈50 minutes
- Payload flight: (0.5kg/22A) ≈ 40 minutes; (1kg/25A) ≈ 35 minutes

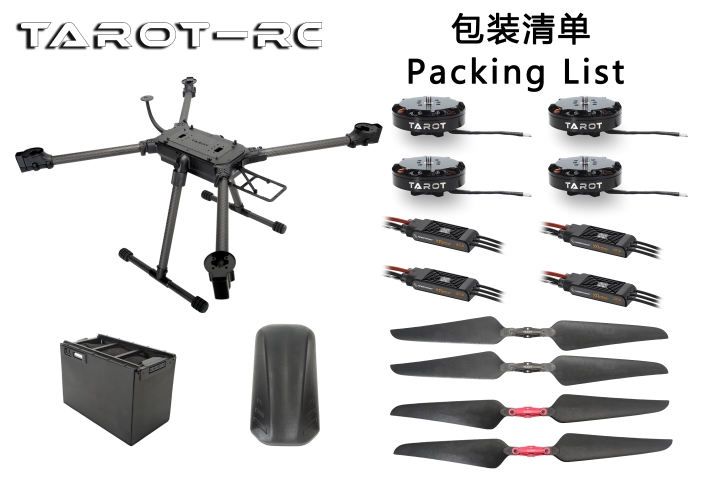

Package Included:

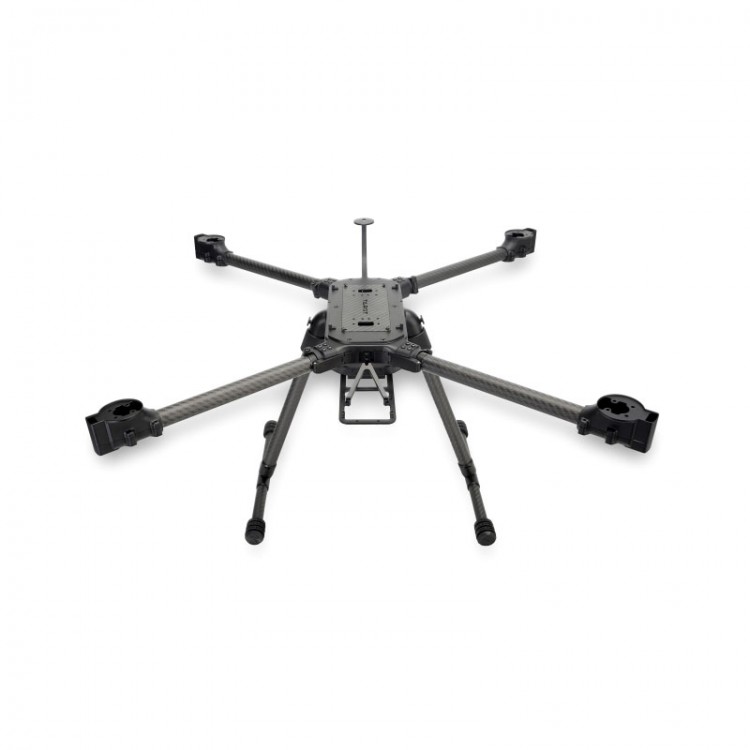

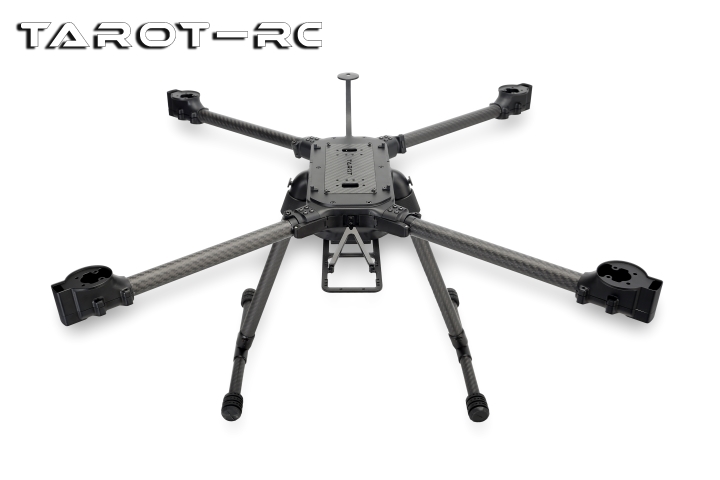

- 1 x M690 drone frame
- 4 x Tarot 6S/5006/290KV motors
- 4 x Hobbywing X-Rotor 40A ESCs
- 4 x Tarot 1865 foldable blades
- 1 x 20000mAh/6S quick release battery pack
- 1 x Portable aluminum box (49*37*46cm)

Packaging Details:
- G.W.: 25kg

Note:
- The frame arms have an asymmetrical folding structure.
- Flight controller and remote control are not included.
- In addition, it comes with a battery, which may not be supported in some countries, so you need to confirm with customer service before placing an order. Thank you!
