Tarot MT1806II 2280KV Brushless Motor Self-Locking Left-Hand Thread CCW TL300H7 with Propellers for Multicopter Aircraft

Tarot MT1806II 2280KV Brushless Motor Self-Locking Left-Hand Thread CCW TL300H7 with Propellers for Multicopter Aircraft

Product description:
Tarot 1806 2 -2280KV self-locking brushless motor is suitable for 180-250 multi axis cross machine. The optimization of Tarot brushless motor, the lower center of gravity, more in line with the design requirements through multi rotor machine.
MT2204 brushless motor using 0.20mm high efficiency thin silicon steel sheet, the thin silicon steel sheet can make the motor has the characteristics of low calorific value, high efficiency. The propeller and motor end cover integrated molding processing, motor cover forming one screw shaft can be directly mounted paddle clamp (Zhou Yuansheng blade clamp structure) the concentricity can get the best guarantee. The active powder pad design with high efficiency motor cover, to obtain a lower working temperature means higher working efficiency.
MT2204 brushless motor with the dynamic balance performance, each motor before shipment all after high precision dynamic balancing test, to ensure the stability of operation of the motor. The motor base mounting holes 12MM/16MM, compatible with the current market mainstream rack installation, retains the appearance and consistency of traditional motor, high hanging to protect the coil.

Product parameters:
- Support lithium section number: 3S
- Propeller installation diameter: 5M
- Propeller: 5 inch three blade
- Interphase resistance: 4m ohm
- Stator diameter: 18MM
- No load current: 0.4A-0.8A
- Stator thickness: 6
- Stator end number: 12
- Motor pole number: 14
- Speed: 2280KV + 5%
- Motor outer diameter: 22.5MM
- Axis diameter: 3MM
- Motor height: 32MM
- Motor weight: 17.3G

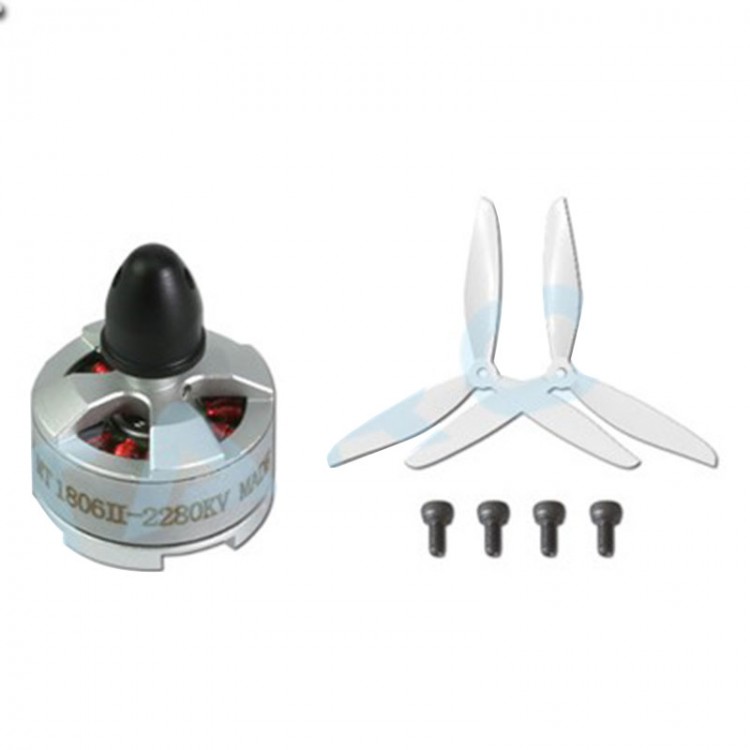

Packge includes:
- MT1806II-2280KV motor * 1
- M2 * 4MM Cup head six angle screw x 4
- 5 inch 3-blade propeller x 2
