Tarot MT2204 II 2300KV Brushless Motor for Mini QAV250 QAV280 Robocat 270 Drone 4 Pcs

Availability: In stock, usually dispatched in 1 business day

  • Price:$31.88
  • Price in reward points: 319 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $31.24 $30.60 $29.65 $28.37 Contact US
Quantity:

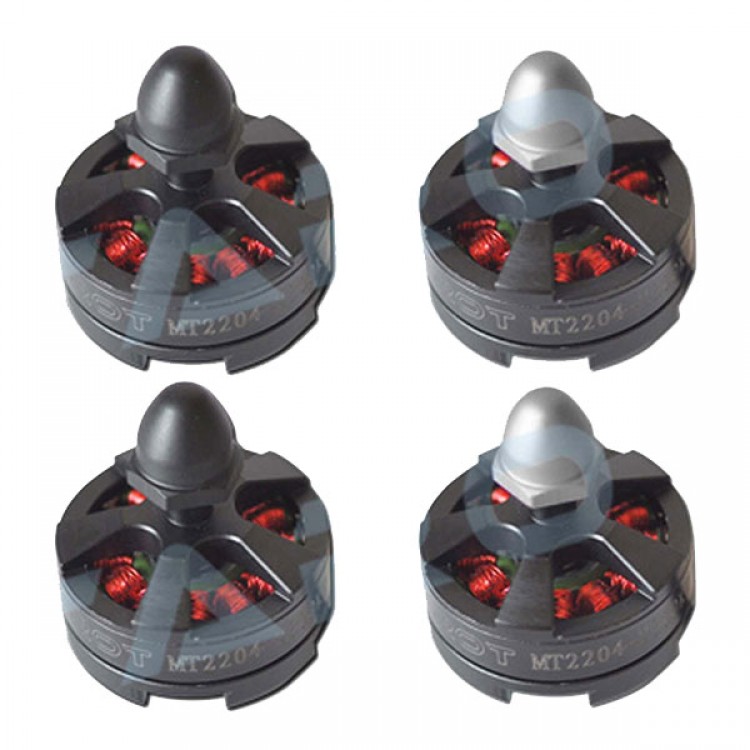

Tarot MT2204 II 2300KV Brushless Motor for Mini QAV250 QAV280 Robocat 270 Drone 4 Pcs

Description:

Tarot  MT2204Ⅱ motor is designed for Mini multicopter 250/270/280/300. Tarot optimizes the brushless motor, which makes its gravity lower, more consistent with the design requirements of the multi rotor aircraft.

MT2204Ⅱ brushless motor adopts 0.20mm ultra-thin high efficiency silicon steel sheet with thin silicon steel piece can make the motors have the characteristics of low calorific value, high efficiency. The screw mounting base is integrated with the motor end cover, and the screw shaft can be directly mounted on the motor. The motor cover is with a high efficiency of active pad design, in order to get lower operating temperature means that higher working efficiency.

MT2204Ⅱ brushless motor with the dynamic balance performance, and has been made a testing with high precision dynamic balancing tester to ensure the stability of the motor running. The bottom mounting hole is 16MM/19MM, and is compatible with the main frame of the market, which is compatible with the traditional motor.

Product parameters:
- Support lithium battery: 3S
- Paddle diameter: 5MM
- Propeller: 6 inch 3 blades propeller TL300E
- Interphase resistance: <=4m ohm
- Stator diameter: 22MM
- No-load current: 0.4A-0.8A
- Stator thickness: 4
- Stator number: 12
- N.o of Motor pole: 14
- Speed: 2300KV
- Motor outer diameter: 28MM
- Axis diameter: 2MM
- Motor length: 39MM
- Motor weight: 24.5G

Package includes:
- 2x MT2204Ⅱ2300KV CCW thread motor
- 2x MT2204Ⅱ2300KV CW thread motor
- 2x 6045 3-blades CCW propeller
- 2x 6045 3-blades CW propeller
