Description:

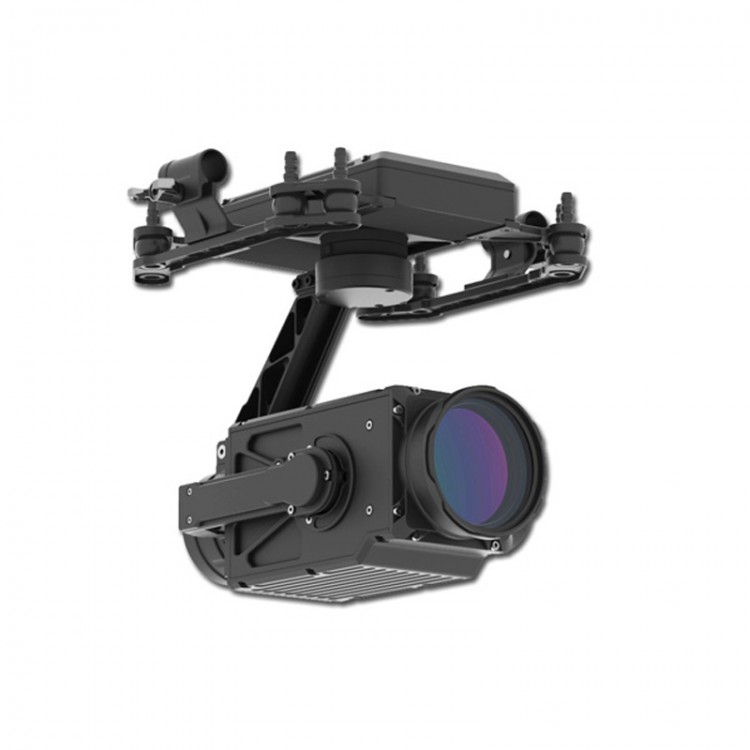

PEEPER T30X HD 3-axis gimbal is specially designed for industry applications. Equipped with a professional star-level optical zoom camera, it can restore more picture details in low-light environments. The gimbal adopts full CNC aluminum alloy structure and brings light weight and the strongest stability.

It boasts built-in 30x optical zoom lens (aperture value F2.0) and high performance 1/2 class sensor for SONY CMOS. The 30x optical zoom gives a new visual dimension, enabling clear and precise large-area search areas anytime, anywhere, making work more efficient, easier and safer.

Additionally, its control frequency is up to 2000Hz. The dedicated decoupling EKF attitude algorithm and servo motor vector control algorithm can control the jitter range of the gimbal within 0.01 degrees, so that the gimbal has excellent three-axis image stabilization at the farthest focal length.

The unique GPS/gyroscope can control and stabilize the direction axis to prevent the missing of target objects caused by drift. The direction axis can be rotated 360 degrees infinitely. It supports 3-6S wide voltage input, has network port video output and SD card slot on the top. And the pitch axis and roll axis waterproof level is IP43, which can protect against light rain.

When it is used with Tarot X6II aircraft platform, the details in the distance are clearly presented, and there is no need to approach the target for observation, and it is easy to switch between wide-angle and telephoto. It can clearly present the scene 100m/328.1ft away, and realize the integrated solution required by industry users.

Specifications:
* Product name: TAROT PEEPER T30X-200W
* Input power: 6S-12S LiPo (20V-52V)
* Working current: 25 at 300mA
* Average power consumption: 8W
* Weight: 1000G/2.2LB
* Dimensions: 104 x 185 x 163mm/4.1 x 7.3 x 6.4" (LxWxH)
* Controllable rotation range: Pitch: -120 degrees to +35 degrees; Roll: -48 degrees to +48 degrees; Pointing: ∞ degrees
* Attitude control accuracy: ±0.01 degrees
* Working environment temperature: -20℃ to +60℃
* Storage ambient temperature: -20°C to +70°C
* Working environment humidity: ≤ 85% (non-condensing)

Camera Parameters:
Sensor:
* Size: 1/1.9" for CMOS
* Total Pixels: 2.38MP
* Maximum Resolution: 1945 (H) x 1225 (V)

Lens:
* Optical zoom: f: 6~180mm
* Aperture: FNo: 1.5~4.3
* Minimum shooting distance: 1m-1.5m/3.3-4.9ft (close focus~telephoto)
* Field of view (horizontal): 61~2.3 (degrees)

Video Network:
* Video compression mode: support H.265/H.264/H.264H
* Storage function: support SD card
* Network Protocols: IPv4/IPv6, HTTP, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP and PPPoE
* Intelligent alarm: motion detection, occlusion alarm,and storage expires

Highest real-time resolution:
* 50Hz: 25fps(1920x1080) and 25fps(1280x720)
* 60Hz: 30fps (1920x1080) and 30fps (1280x720)

SNR:
* ≥55dB (AGC Off, Weight ON)

Others:
* Minimum illumination: Color: 0.01Lux/F1.5; Black and White: 0.001Lux/F1.5
* Image stabilization: Support electronic image stabilization on/off
* Mist Through: On/Off
* Exposure Compensation: On/Off
* Strong light suppression: support
* Privacy mask: support
* Day/Night conversion: Automatic/Manual
* Zoom speed: about 3.5S (optical, wide-angle-telephoto)
* White Balance: Automatic/Manual/Tracking/Outdoor/Indoor/Outdoor Automatic/Sodium Automatic/Sodium Lamp
* Electronic Shutter: Automatic Electronic Shutter (1/3~1/30,000sec); Manual Electronic Shutter (1/3~1/30,000sec)
* Exposure: Support both automatic and manual modes
* 2D noise reduction function: support
* 3D noise reduction function: support
* Image flip: support
* External control: RS232
* Communication interface: Compatible protocol for SONY VISCA
* Focus Mode: Automatic/Manual/One Shot Automatic Focus
* Digital zoom: support 4X digital zoom
* Analog video: support
* Through the fog function: support
* Power consumption: Static power consumption: 4.5W; Motion power consumption: 5.5W
* Output format: 1920*1080P
* Working mode: video mode and photo mode
* Supported memory card types: up to 128GB
* Supported file system: FAT32 (s32GB) /exFAT (>32GB)
* Assistant software support platform: for Windows XP/VISTA/7/8/10

Attention:
* The gimbal only supports network port video signal output, and does not support network port signal control of the gimbal. The PTZ control mode only supports the SBUS1 signal of the remote controller.

Package Included:
1. Gimbal network port version x 1
2. Parameter adjustment module x 1
3. External GPS module x 1
4. SBUS receiver cable x 1
5. 4P cable to gimbal network port x 1
6. Serial cable x 1
7. Ethernet port conversion module x 1
8. Suspension protection metal parts x 2
