Tarot T30X-3ATL 30X 1080P 3-Axis Gimbal Camera + 640*512 Thermal Imaging + Laser Range Finder

Tarot T30X-3ATL 30X 1080P 3-Axis Gimbal Camera + 640*512 Thermal Imaging + Laser Range Finder

Description:

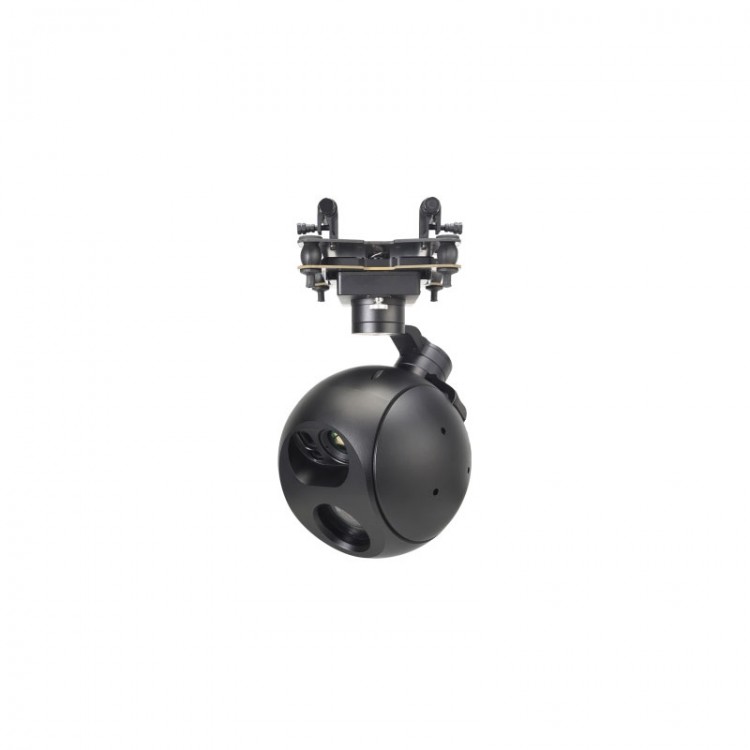

Tarot T30X-3ATL is a 3-axis zoom camera gimbal developed specifically for industrial applications. Visible light supports 30X optical zoom. It uses a 1/2.8 CMOS sensor with 2.13 million effective pixels. It can clearly show the scenery from hundreds of meters away. With 19mm 640*512 resolution thermal imaging and a 2000m laser ranging module, it supports human and vehicle recognition, target positioning, ranging and target tracking. Its pod adopts professional three-axis mechanical stabilization technology. It can be applied to many industries such as fire protection, forest public security, public security monitoring, search and rescue, and environmental law enforcement.

Features:
- Weight: 910g;
- Visible light: the camera supports 30X optical zoom, with 2.13 million effective pixels;
- Visible light: field of view range of 63.7°~2.3°; optical zoom range f: 4.3~129mm;
- Visible light: video resolution 1080P at 30fps; photo resolution 1920*1080;
- Visible light: minimum illumination for color 0.01Lux/f1.6;
- Thermal imaging: 19mm; 640*512；
- Picture-in-picture display with visible light and thermal imaging;
- Supports human and vehicle identification, target positioning, ranging and target tracking;
- Highly optimized servo motor vector control algorithm;
- Mechanical three-axis image stabilization and ± 0.01° image stabilization accuracy;
- Aluminum alloy structure is light and strong, with good heat dissipation performance;
- The pointing axis supports ± 360° infinite rotation;
- Supports one-key execution of one-key downward-facing 90-degree overhead operation;
- Supports S.BUS, serial port UART protocol, network port TCP protocol control and CAN protocol information feedback;
- Supports automatic/manual picture focusing;
- Customized dedicated ground station PC/TCA software for Android end can show control and operation;
- Display and control software TCA: Version for Android supports display and touch screen to control gimbal. The version for Windows supports display and control via a mouse and a peripheral gamepad;
- Compatible with the screen display of mainstream ground station software on the market (such as SKYDROID FPV software, SIYI FPV software, QGC, AheadX Ground Station, JIYI Ground Station, Hankun Ground Station, etc.). It also supports player software (such as VLC) with RTSP video streaming function;
- Compatible with MAVlink2 communication protocol, open source flight controller QGC and Mission planner to realize the image display of the gimbal camera, and realize the video overlay of the coordinates and altitude of the open source flight controller.

Specifications:
Functional Indicators:
- Video output: network ETH (default 1080P at 60fps) (1080P/720P, 60fps/30fps optional)
- Supported control types: S.Bus, UART (TTL level), TCP and CAN (CAN only supports information feedback for the time being)
- Advanced functions: one-key downward, automatic/manual focus, 640 thermal imaging, person-vehicle recognition and tracking and positioning

Camera Specifications/Visible Light:
- Sensor size: For Sony 1/2.8-inch "ExmorR" CMOS
- Total pixels: 2.13MP
- Video resolution: MP4; 1080P/30fps
- Photo resolution: JPG/1920*1080
- Focal length: 4.3~129mm
- Aperture: F1.7~F3.2
- Horizontal viewing angle: 63.7°~2.3°
- Focusing range: 10mm-1200mm; The default is 300mm
- Signal-to-noise ratio: >50dB
- Electronic shutter speed: 1~1/10000s
- Optical zoom factor: 30X
- Digital zoom equivalent: 4X (120x optical zoom) is off by default
- Minimum illumination: Color: 0.01Lux/F1.6
- Storage function: Supports Micro SD card up to 128GB. The speed class is not less than Speed Class 10
- Video stream encoding mode: H.264/H.265

Camera Specifications/Thermal Imaging:
- Resolution: 640*512
- Lens type: 19mm
- Field of view (horizontal x vertical): 22.9°x18.4°
- Working mode: Uncooled VOx long wave (8μm~14μm) thermal imager
- Pixel: 12μm

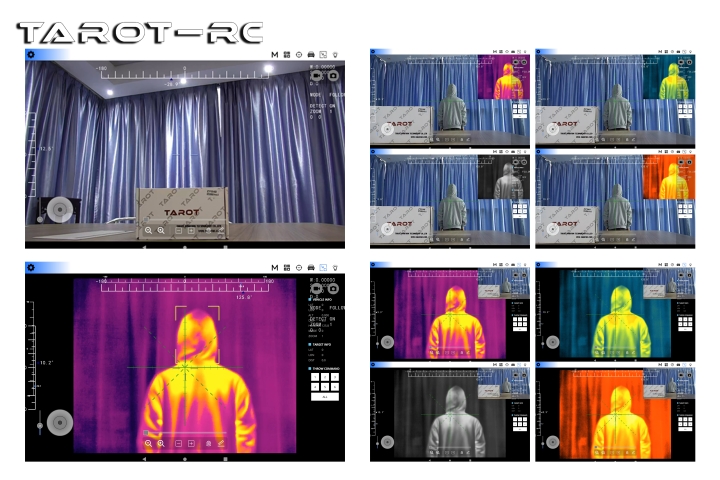

- Pseudo color types: White hot, rainbow, lava and iron red

Laser Rangefinder:
- Range: 5-2000 meters
- Operating current: 80MA (MAX.)
- Speed of light: 905nm pulsed laser
- Divergence angle: 3 mrad
- Laser pulse frequency: 1 hour
- Power: <1mW (safe for eyes)
- Ranging mode: Pulse
- Position resolution: The latitude and longitude of the target
- Ranging: Measurement of the distance to the target

Target Tracking:
- Deviation pixel update rate: 30HZ
- Output delay for deviated pixels: <30 ms
- Minimum supported focus ratio: 5%
- Minimum supported focus size: 16*16 pixels
- Maximum supported image size: 256*256 pixels
- Tracking speed: <32 pixels/frame
- RAM time: 100 frames

AI Recognition Performance:
- Target type: Cars and people
- Number of simultaneous detections: ≥ 10 targets
- Minimum target size: 5x5 pixels
- Vehicle detection rate: ≥85%
- Error rate: ≤10%

Gimbal Technical Indicators:
- Image stabilization accuracy: ±0.01°
- Mechanical range: Pitch: -60° to 150°; Roll: ±70°; Yaw: ±360°
- Maximum controllable speed: Yaw: 5~60°/s; Pitch: 5~60°/s
- Controllable rotation range: Pitch: -45° to 90°; Yaw: ±360°

Overall Specifications:
- Operating ambient temperature: -20°C to 60°C

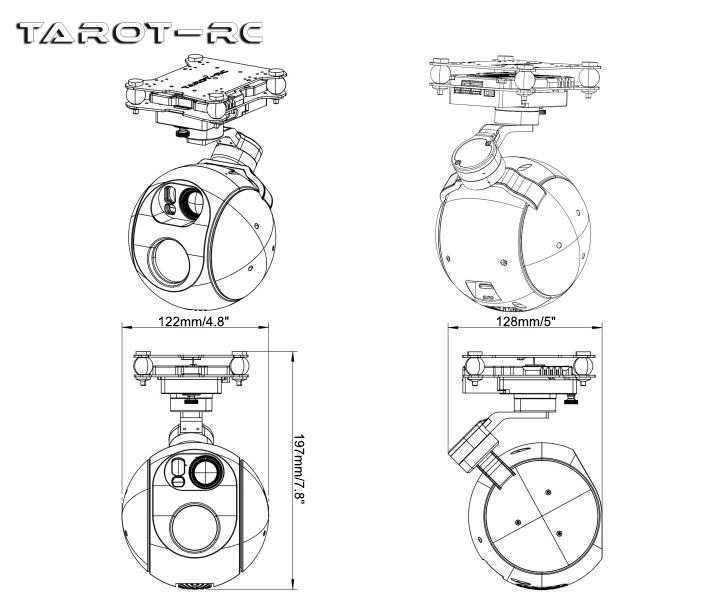

- Dimensions (LxWxH): 197x122x128mm
- Weight: 910g
- Operating Voltage: 4-14S (15~60V)
- Average power consumption: 12V 900MA
- Debugging software support: For Windows 7 and above

Package Included:
- 1 x T30X-3ATL Gimbal
- 1 x Gimbal power cord/XT30-2P
- 1 x S.Bus receiver and serial debugging cable/6P
- 1 x ETH output and debugging cable/4P-RJ45
- 1 x ETH connection cable/4P-5P
- 1 x UART serial control and CAN cable/5P
- 1 x Micro-SD memory card/64G

Packaging Details:
- G.W.: 2kg
