Tarot TL300N5-02 1.2G 8CH 1600mW Video Transmitter Drone VTX Transmitter with Adjustable Power

Tarot TL300N5-02 1.2G 8CH 1600mW Video Transmitter Drone VTX Transmitter with Adjustable Power

Description:
This is Tarot's newly upgraded 8CH, 1600mW 1.2G audio and video transmission system. It has an ultra small size and ultra-light weight. Using 6061T6 aluminum alloy shell for heat dissipation, it is especially suitable for multi-rotor drones and FPV drones for long-distance use.

Features:
- The 8-channel output can be changed by DIP switches. Compatible with regular frequencies;
- Provides 1-way video signal and 2-way audio signal input;
- Provides 1-way 5V/0.5A power supply output to supply power to conventional cameras (please confirm the voltage and current of related equipment to avoid burning);
- Compared with Tarot 800mW video transmitter, it increases the transmission power and greatly increases the transmission distance. Thus, it is more suitable for long-distance image transmission;
- 6061T6 aluminum alloy shell dissipates heat to make its performance more stable.

Specifications:
Transmitter (Sky End):
- Input voltage: 7-26V DC(2-6S)
- Output voltage: including one 5V/0.5A
- Weight: 8.2g (without metal case), 16g (with case, but without antenna)
- Size (LxWxH): 45mm*26*mm*8.5mm
- Number of channels: 8 channels
- Channel selection: 3 mini DIP switches for switching (Positions 1-3)
- Transmitting frequency: 1080MHZ/1120MHz/1160MHz/1200MHz/1240MHz/1280MHz/1320MHz/1360MHz
- Transmit power: 32dBm±1dBm (1600mW)
- Power adjustment: 2 mini DIP switches for switching (positions 4-5)
- Four power gears: micro power/25mW/200mW/1600mW
- Antenna interface: RP-SMA (with external thread and internal needle) 50Ω
- Operating ambient temperature: -10°C to 60°C
- Modulation Type: FM

Attention:
1. Install the antenna and then power on to avoid equipment failure;
2. Select the appropriate working frequency, and set the transmitter and your receiver to the same frequency;
3. Because the transmitter has a large power, please not touch the shell with your hands to avoid burns when it is working (it is normal for the shell to be hot and please feel free to use it);
4. The product can be used normally if the shell is removed for installation because the weight needs to be reduced. However, the transmit power will decrease slightly due to the increase in the temperature of the transmitter;
5. The input voltage is 7-26V (2-6S) and please do not use it beyond the voltage range;
6. The output voltage and current is 5V/0.5A, please pay attention to whether the camera is within the voltage and current range. If the current of the product is greater than the limit of 0.5A, do not use the voltage output terminal of the product, otherwise it may cause damage to the power supply module of the transmitter.

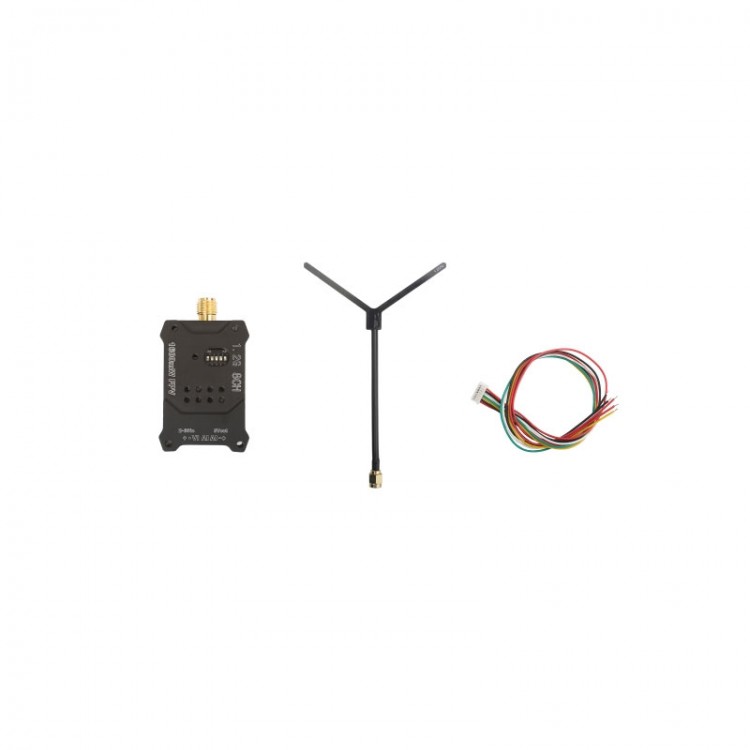

Package Included:
- 1 x 1.2G 1600mW video transmitter
- 1 x TX connection cable/7P (200mm)
- 1 x 1.2G antenna/Y-shaped

Packaging Details:
- G.W.: 0.2kg
