Product Description:

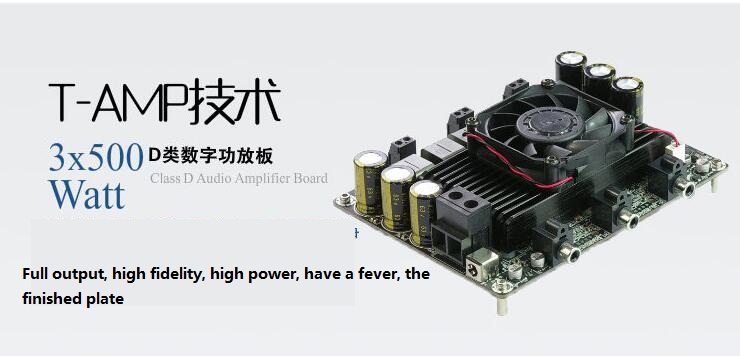

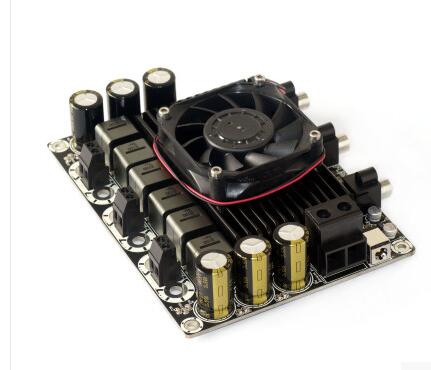

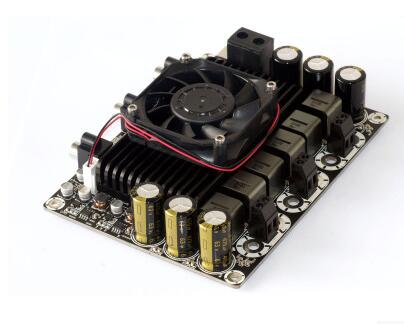

- 3x 500 Watt Class D Audio Amplifier Board
- Full output, high fidelity, high power, have a fever, the finished plate
- T-amp Digital Power amplifier board 2.1 HiFi subwoofer 3*500W
- Three channel Stereo
- The power plate is three channels, 3x500W, high power D Type digital amplifier board, stereo,load 3 ohm, DC48V power supply, guaranteeing each sound hassufficient power output.

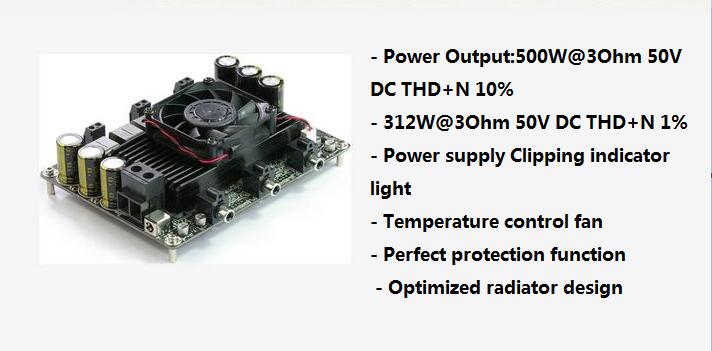

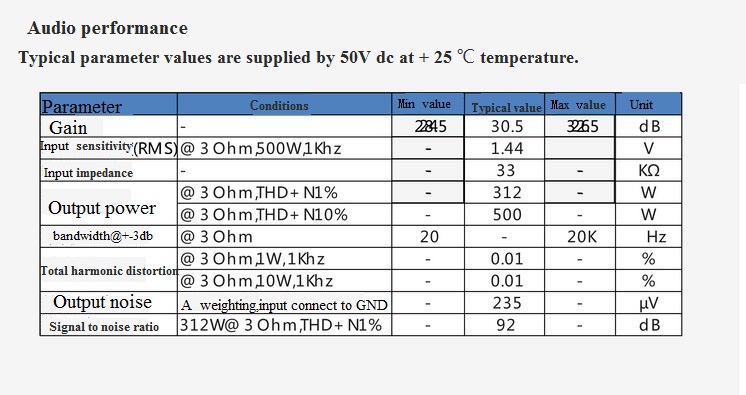

- Power Output:500W@3Ohm 50V DC THD+N 10%
- 312W@3Ohm 50V DC THD+N 1%
- Power supply Clipping indicator light
- Temperature control fan
- Perfect protection function
- Optimized radiator design

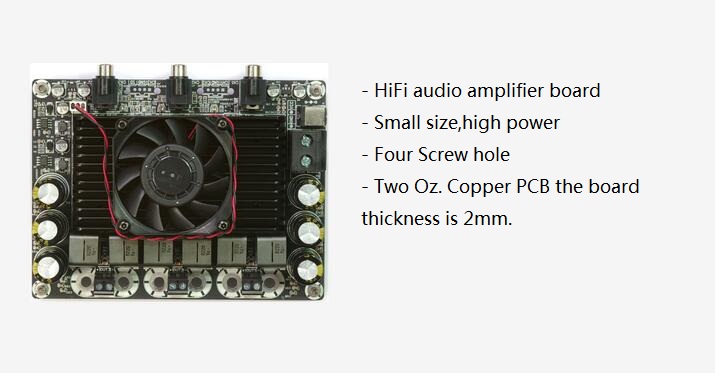

- HiFi audio amplifier board
- Small size,high power
- Four Screw hole
- Two Oz. Copper PCB the board thickness is 2mm.
- Japan inport Sganmi inductance
- High frequency low resistance capacitance

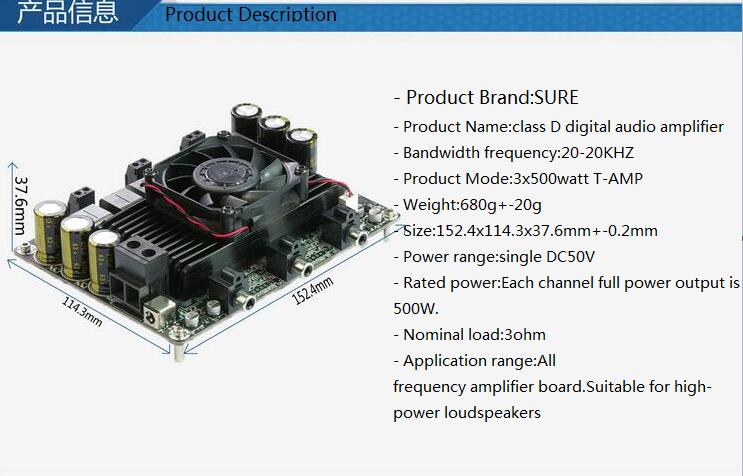

Specification:
- Product Brand:SURE
- Product Name:class D digital audio amplifier
- Bandwidth frequency:20-20KHZ
- Product Mode:3x500watt T-AMP
- Weight:680g+-20g
- Size:152.4x114.3x37.6mm+-0.2mm
- Power range:single DC50V
- Rated power:Each channel full power output is 500W.
- Nominal load:3ohm
- Application range:All frequency amplifier board.Suitable for high-power loudspeakers
Package List:
- 1 x Class D Audio Amplifier Board
