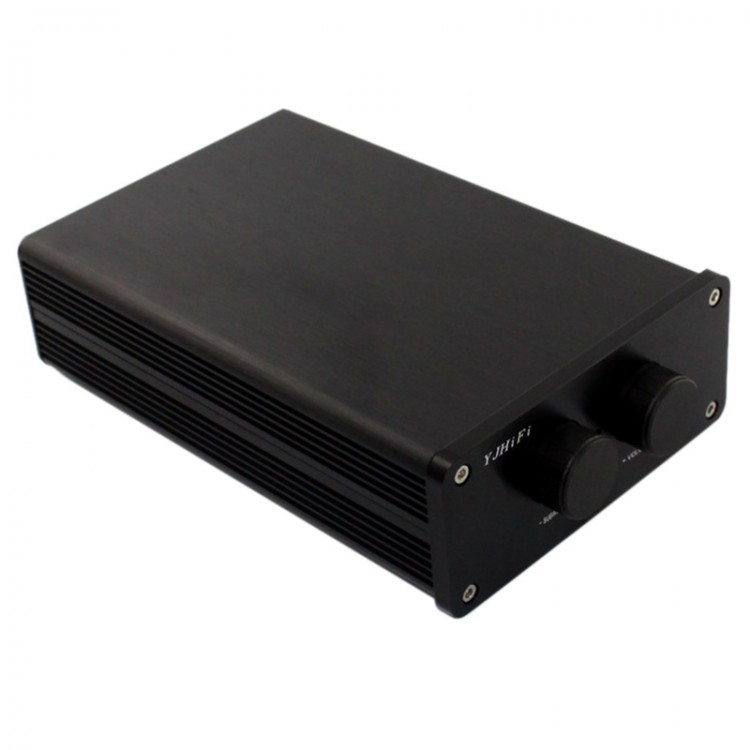

TAS5630 Class D DC48V 600W Subwoofer Amplifier Digital Stereo Audio Amp

TAS5630 Class D DC48V 600W Subwoofer Amplifier Digital Stereo Audio Amp

Description:
OPA1632 is a fully differential amplifier for driving high performance audio analog-to-digital conversion (ADCs).The gain bandwidth of OPA1632, 180MHz 50V/ s, very fast conversion speed, very low distortion 0.000022%. input noise,1.3nV/ root Hz to ensure the ratio and dynamic range. Full differential structure flexibility, can easily realize single ended differential output differential output pair lower conversion. Harmonic, ADCs provides high performance audio PCM1804. excellent performance drive to reduce common mode noise of OPA1632, such as the use of shutdown function also enhances the flexibility.It is integrated analog input 300W stereo (600W total power) of the class D amplifier. Its SNR is greater than 100dB, PSRR is 80dB, the efficiency of power level is up to 88%.

Features:
- Original TAS5630,OPA1632DR,TL072
- Main filter electrolytic capacitor: 470UF/100V*4
- Resistance: five ring metal resistor
- PAC adopts 1.6mm double thick plate,2.0 ounce
- Fully enclosed dust-proof potentiometer
- Specil current inductance
- Aluminum case

Parameters:
- Working mode: D class
- Quiescent current: 65mA
- Working efficiency: 88%
- Output power: 600W/4 10% THD
- Frequency response: 20Hz to 20KHz
- Dynamic range: dB >100
- Signal to noise ratio: 100dB (A-Weighted)
- Working voltage: DC48V

Package included:
- 1 x Digital Amplifier
