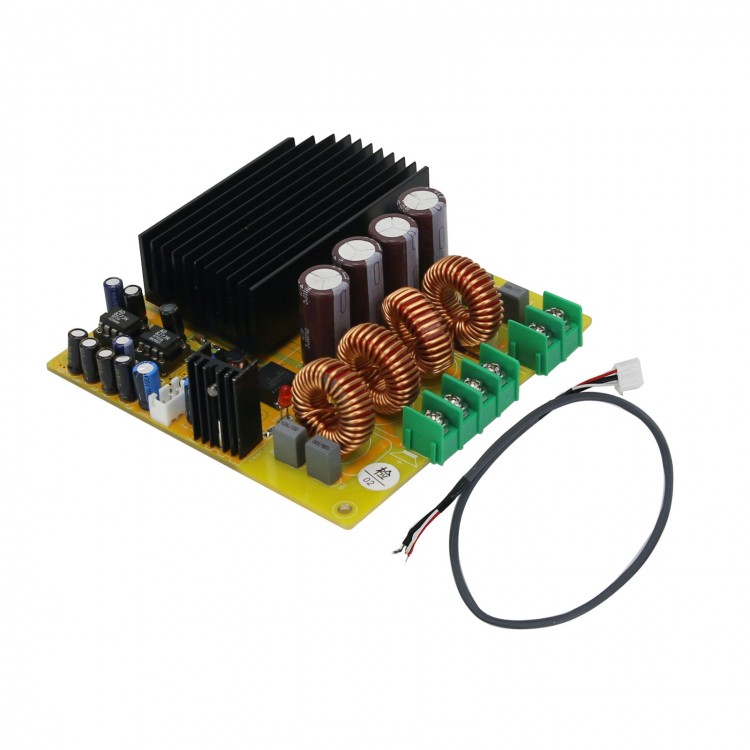

TAS5630 Digital Amplifier Board 2 Channel Class D HIFI Power Amplifier 2x300W with AD827 Pre-amp

TAS5630 Digital Amplifier Board 2 Channel Class D HIFI Power Amplifier 2x300W with AD827 Pre-amp

Description:
The TAS5630D amplifiers can provide 300W+300W of stereo output power under a DC48V 4 ohm load. They adopt PurePath™ HD technology and TI advanced closed-loop architecture to realize the next-generation Blu-ray home theater system, stand-alone home theater, and professional audio system. With high-definition media playback and ultra-low distortion, it is the current advanced digital amplifier.

Parameter:
DC=50V, R=4Ω, THD+N=10%, P=300W
DC=50V, R=6Ω, THD+N=10%, P=210W
DC=50V, R=8Ω, THD+N=10%, P=160W
DC=50V, R=4Ω, THD+N=1%, P=240W
DC=50V, R=6Ω, THD+N=1%, P=160W
DC=50V, R=8Ω, THD+N=1%, P=125W

Specification:
Total harmonic distortion (THD+N):﹤1%
Signal to noise ratio (SNR): >100dB
Input impedance: 20KΩ
Output offset voltage:﹤150mV
Voltage gain: adjustable
Conversion rate (SR): 50V/us
Frequency response range: 20Hz--20kHz
Power supply range: DC20--DC50V (recommended 20-45V range, not recommended for 48-50V limit voltage)
PCB size: 101.6*98.5

Features:
-300W+300W low distortion high power amplifier.
-With the AD827 high-speed operational op amp as the pre-stage, the amplifier level, details, music sense, etc. are very good.
-A large number of imported components are used to ensure safe and reliable work and guaranteed sound quality.
-Low magnetic flux leakage red ring inductance, low loss, high frequency transparency, powerful low frequency.

Package List:
1 x Amplifier Board

Note:
1. The amplifier board is a finished product.
2. The board is powered by DC. Do not directly input AC. Use an AC transformer. Plug in a rectifier bridge and filter capacitor. In addition, the DC power supply should not exceed 50V, and should not be lower than 20V. If lower than 20V, it will not start. In addition, the output power is related to the power supply. 50V will be more than 4 times the power at 20V.
