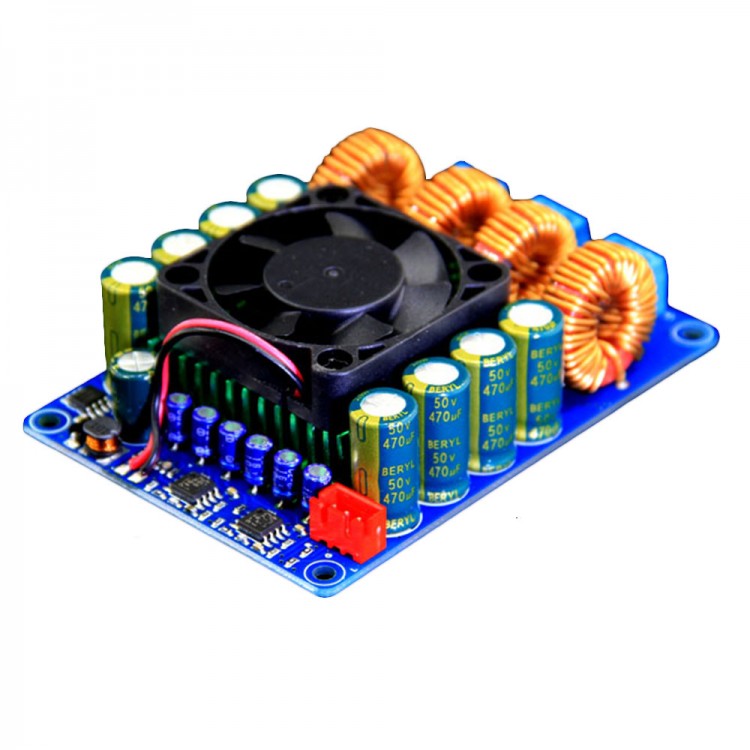

TAS5630 Dual Channel 2x300W Class D Digital Audio Amplifier Board HIFI AD827 for DIY
Specifications:
- When DC = 50V, R = 4Ω, THD + N = 10% , P = 300W
- When DC = 50V, R = 6Ω, THD + N = 10% , P = 210W
- When DC = 50V, R = 8Ω, THD + N = 10% , P = 160W
- When DC = 50V, R = 4Ω, THD + N = 1% , P = 240W
- When DC = 50V, R = 6Ω, THD + N = 1% , P = 160W
- When DC = 50V, R = 8Ω, THD + N = 1% , P = 125W
- Total harmonic distortion (THD + N): <1%
- Noise ratio (SNR):> 100dB
- Input impedance: 20KΩ
- Output offset voltage: <150mV
- Voltage gain: Adjustable
- Conversion rate (SR): 50V / us
- Frequency Response: 20Hz - 20kHz
- Power Range: DC20 - DC50V
Package included:
- 1 x Amplifier Board
