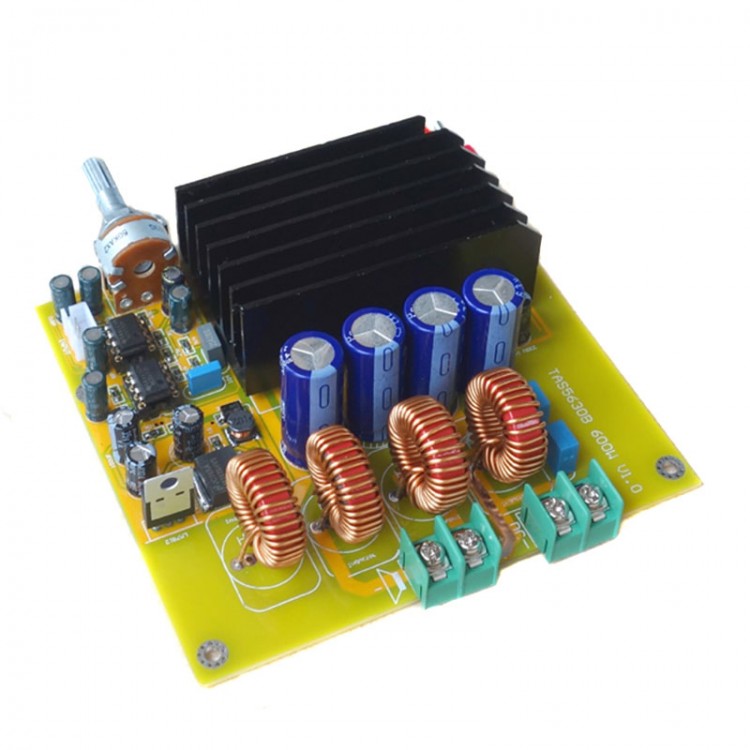

TAS5630 Power Amplifier Board Mono Channel 600W High Power Bass Audio AMP
Description:
- DC input voltage DC18-50V, recommend 24-45V, >6A,transformer 15-33V.
- Input signal can be 2 channel input or mono channel input.
Features:
- Red ring low loss inductance
- Japan ALPS16 potentiometer
- Aluminum alloy cooling system
- Japan Chemical KINGBOX decoupling capacitor
Specification:
- When DC = 50V, R = 2Ohm, THD + N = 10%, P = 600W
R = 4Ohm, THD + N = 10%, P = 350W
DC = 50V, R = 6Ohm, THD + N = 10%, P = 250W
DC = 50V, R = 8Ohm, THD + N = 10%, P = 200W
- Total harmonic distortion (THD + N): <0.1%
- Signal to noise ratio (SNR):> 100dB
- Input impedance: 20KOhm
- Output offset voltage: <150mV
- Voltage gain: adjustable
- Conversion rate (SR): 50V / us
- Frequency response range: 20Hz - 20kHz
- Power supply range: DC20 - DC50V
- PCB size: 111.6mm * 103.5mm
- Crossover frequency: 60HZ
NOTE:
The amplifier board using DC power supply, can not be directly input AC; To use AC power supply, please use the AC adapter, plug a rectifier bridge and filter capacitor can be.
Package Contents:
- 1 x TAS5630 Power Amplifier Board
