TB3-HL66 GPU Expansion Dock Graphics Card USB External Expansion Dock PCIE with 1m Thunderbolt4 Cable and ATX Bracket

TB3-HL66 GPU Expansion Dock Graphics Card USB External Expansion Dock PCIE with 1m Thunderbolt4 Cable and ATX Bracket

Description:
- The main function of TB3-HL6 expansion dock is to allow the computer to expand a PCIE interface. The PCIE interface can be used to connect external PCIE graphics cards (desktop graphics cards), PCIE sound cards, PCIE network cards, etc. Among them, the integrated graphics processor laptop is connected to a PCIE graphics card externally, which can improve the performance of the graphics card and achieve a similar effect of turning a lightweight laptop into a gaming laptop in seconds.

Compatibility:
- Computers with Thunderbolt 3, Thunderbolt 4, USB4 (laptops/Mini consoles/handheld devices, etc.) can be used.
- Note:
1) All 10G and 20G speed interfaces such as USB2.0/USB3.0/USB3.1/USB3.2/full-featured interfaces are not available for use.
2) For Apple computers with processors for Intel can be used (i3 i5 i7 i9 and other computers with Thunderbolt 3 interface); All computers for Apple with M1/M2 CPUs are unusable. (Due to physical limitations for Apple CPU, it cannot be recognized)

Supported System and GPU:
- Supports for Windows 10 and Windows 11, and can use for AMD and NVIDIA graphics cards. For N cards, the 10/16/20/30/40 series is recommended, while for A cards, the RX full series graphics card is recommended.
- Supports black and white system for MAC OS, which only supports for AMD drive-free graphics card models. (Baidu for details: for MAC OS drive-free graphics card list) We do not recommend external graphics cards for this system because customer service is not familiar with this system and cannot provide technical support.

Specification:
- Model: TB3-HL66
- Master control: for Intel JHL 6540
- Expansion: PCIE 16X clot (speed rate PCIE3.0 x 4 Max)
- Applicable: Supports 6-10 generations of Thunderbolt3 computers, 11-12 generations of Thunderbolt 4/USB4 computers, full USB4 computers for AMD Ryzen 6000, and some computers for Ryzen 7000. For Intel 13-14 generation CPU computers are not supported, AMD Ryzen 8000 computers are not supported (JHL7440 controller is required).
- PCIE 16x slot compatible expansion: for AMD graphics card (RX series), NVIDIA graphics card (7 - 40 series), Intel graphics card (please contact the graphics card customer service for the applicable models), PCIE X4 solid-state drive, PCIE sound card, PCIE network card (10G), etc. (Special note: Not supporting DMA card, chip protection restriction, unable to connect to the secondary unit.)
- Other instructions: HL66 does not support reverse charging.
- Start method: Activate the docking station by identifying the Thunderbolt interface of the computer. If shutdown charging is supported: connect the Thunderbolt4 data cable to turn on the power supply, disconnect the Thunderbolt4 data cable to turn off the power supply. If shutdown charging is not supported: synchronize the power on and off with the computer.

Instruction:
Step 1: Hardware preparation
- Prepare a computer (laptop/MINI host/handheld) with Thunderbolt 3, Thunderbolt 4, or USB4 interfaces.
- Prepare a graphics card dock (this product).
- A PCIE device that supports for NVIDIA graphics cards, for AMD graphics cards, PCIE network cards, sound cards, DMA cards, etc.
- One ATX power supply (not included) is recommended to be prepared according to the requirements of the desktop computer.

Step 2: For Windows installation and use

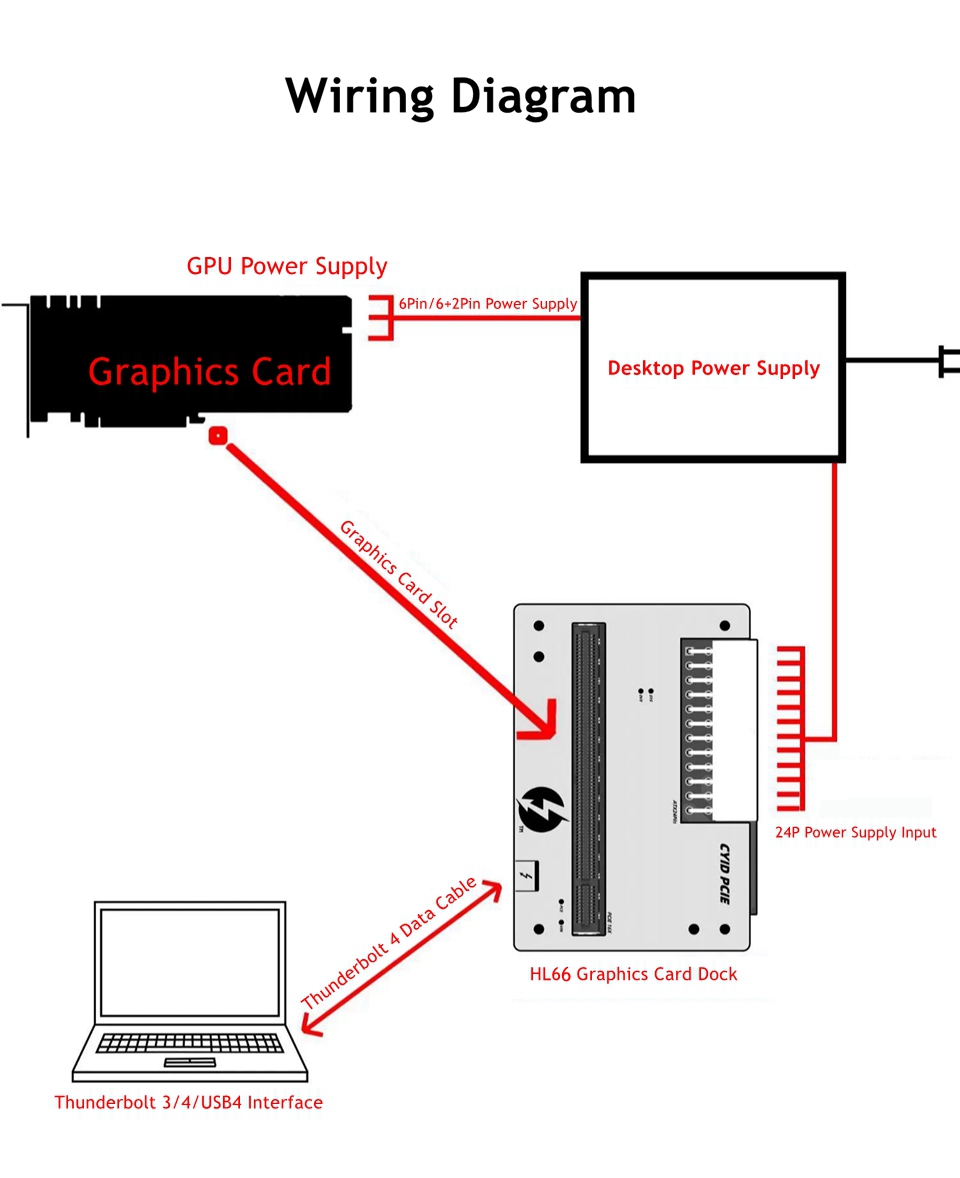

- Insert the graphics card into the graphics card dock, connect the 24Pin of the power supply to the expansion dock, and if the graphics card needs power supply, please connect it fully.
- Connect the Thunderbolt data cable, with one end connected to the expansion dock and the other end connected to the computer. Once connected, the power will automatically start.
- Identify new hardware, update drivers, use the "360 Driver Master" app to install graphics card drivers with one click, then it is completed.

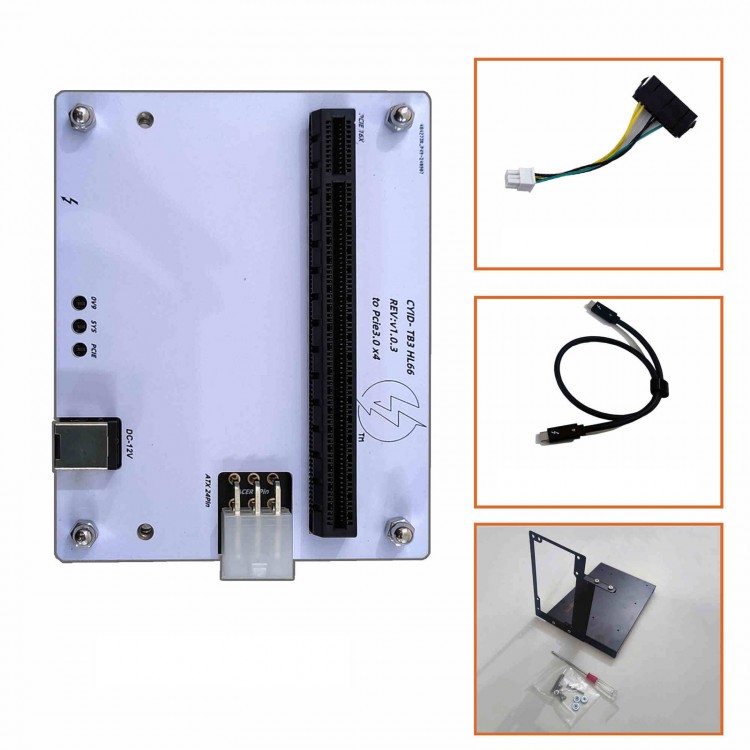

Package Included:
- 1 x Expansion Dock
- 1 x 1-meter Thunderbolt4 Cable
- 1 x ATX Bracket
- 1 x Tool Kit
