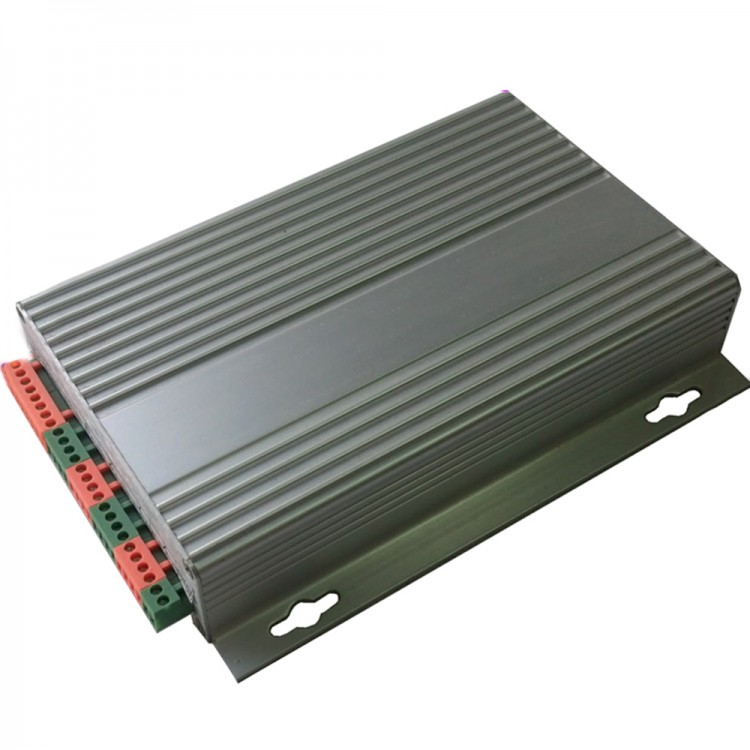

TB6560 3A 3-Axis Engraving Machine Driver CNC Stepper Motor Driver Controller w/Parallel Cable
Specification:
- 2 Phase
- Operating voltage: DC12-24V
- Current: 0.6-3.0A
- Microstep: 16
- For 42/ 57 motor
- 25pin computer parallel port/Mach3 software is compatible
- For 3 axis
Features:
- X,Y,Z, 3-axis driver, up to 3.0A for each axis
- For engraving machine, dispenser, CNC devices etc.
- PC parallel port signal, can be controlled by CAM software
- 5 channels input
- Integrate Isolation module and control drive part
- 3 axis current, microstep and attenuation are adjustable
- Anodic oxidation aluminum case, good radiation
Electrical Specifications (Temperature Ta=25 deg C):
- Input voltage: 12-24VDC , recommended current capacity>15A
- Output current: 0.5-3.0A,adjustable
- Pulse frequency response: 200KHz
- Insulation resistance: >500MOhm
- Weight: About 500g
Microstep setting:
| SW5 | SW6 | Microstep |
| ON | ON | 1 |
| ON | OFF | 1/2 |
| OFF | OFF | 1/8 |
| OFF | ON | 1/16 |
Current output setting:
| Full current | Half current | SW1 | SW2 | SW3 | SW4 |
| 100% | 50% | OFF | OFF | OFF | OFF |
| 100% | 20% | OFF | ON | OFF | OFF |
| 75% | 50% | ON | OFF | OFF | OFF |
| 75% | 20% | OFF | OFF | ON | OFF |
| 50% | 20% | OFF | ON | OFF | ON |
| 20% | 20% | OFF | OFF | ON | ON |
Attenuation setting
| SW7 | SW8 | Mode |
| ON | ON | No attenuation |
| ON | OFF | Slow attenuation |
| OFF | ON | Medium attenuation |
| OFF | OFF | Quick attenuation |

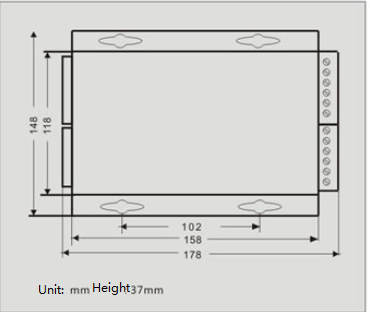

Mounting dimension:
Signal interface function:
- DB25 parallel port is pulse, direction, limitation and relay control interfae=ce
- DB15 interface is hand control panel signal interface
- IN1-IN5 is low level limitation output
- Power: Input 12V-24VDC
- Two channel relay control interface for system like main axis and cooling to control
- Can extend to 4 axis control output
Package included:
- 1 x Driver
- 1 x Parallel Cable
