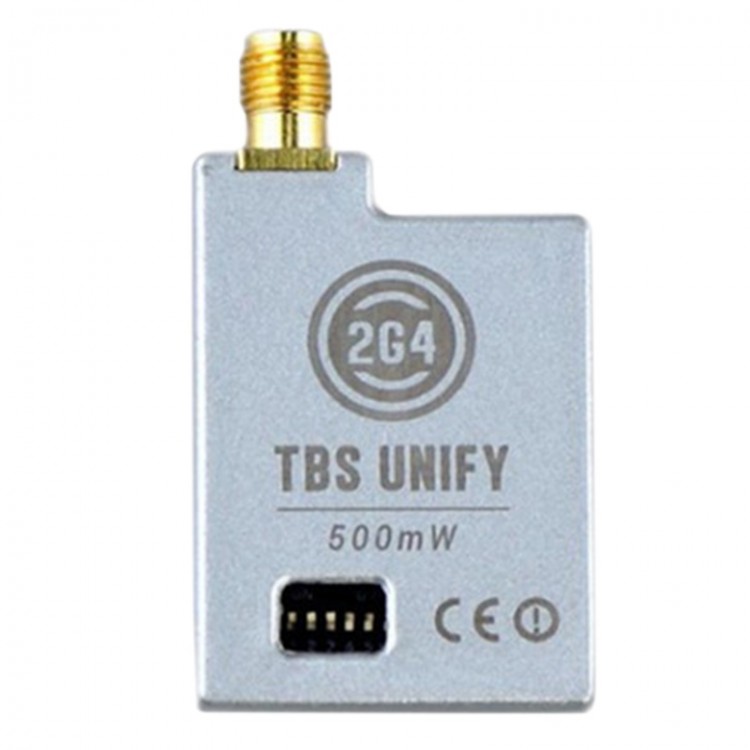

TBS UNIFY 2G4 2.4G 500MW 16CH Wireless Audio Video AV Transmitter Tx SMA Plug for FPV Multicopter

TBS UNIFY 2G4 2.4G 500MW 16CH Wireless Audio Video AV Transmitter Tx SMA Plug for FPV Multicopter

Description:
The TBS Unify 2G4 500mW 16ch A/V transmitter has been designed from the outset to provide high quality and long range in a compact package suitable for small multirotors as well as their bigger bretheren.

Its rugged aluminum case acts as a heatsink as well as providing exceptional protection for the electronics inside, while the compact dimensions allow for mounting in all but the smallest of spaces.

This video transmitter operates on frequencies outside of the band of regular FPV video transmitters. You can therefore fly together with your friends on 2G4 R/C. A few meters of clearance is enough for uninterrupted video signal, even when flying long range.

If you're into customization, this video transmitter is also for you!
You can pop the PCB out of the case, solder on a tin shield and save yet another few grams and a few millimeters off the edges for the ultimately compact setup.

As if this wasn't enough, there are also another 16 undocumented frequencies alloted. If you're the sort of guy that loves to hack into your receivers, you can choose from 16 totally unsupported frequencies, ensuring that you can be the guy flying at all times, even on the biggest meetups.

Features:
- Robust construction
- Compact size
- Exceptional range
- Excellent video clarity
- Customizable frequencies

Specification:
- Input voltage: 5V
- Output power: 500mW
- Channels: 16Ch 2370~2510MHz
- Transmission: PAL or NTSC Video, Mono audio
- Receiver compatibility: TBS Groundstation, Lawmate 2.4, ImmersionRC 2.4 Uno & Duo, Iftron 2.4 & others
- Antenna connector: SMA Female
- Port connector: JST-XH socket, 4 pin
- Working temperature: 0~40°C
- Dimensions:  37 x 26 x 8mm
- Weight: 22.2g including antenna

Channels:
- Ch 1    2410 MHz
- Ch 2    2430 MHz
- Ch 3    2450 MHz
- Ch 4    2470 MHz
- Ch 5    2370 MHz
- Ch 6    2390 MHz
- Ch 7    2490 MHz
- Ch 8    2510 MHz
- Ch 9    2414 MHz
- Ch 10  2432 MHz
- Ch 11  2450 MHz
- Ch 12  2468 MHz
- Ch 13  2411 MHz
- Ch 14  2433 MHz
- Ch 15  2453 MHz
- Ch 16  2473 MHz

Package Included:
- 1x TBS Unify 2G4 VTx
- 1x TBS Unify tin shield
- 1x 5V cable
- 1x 2G4 2.5dBi whip antenna
