TC-1000 HD Video Card DVI V3.0 for Conference Metting Broadcast
Product characteristics:
- Collect HDMI,DVI,VGA,component,AV,S terminal signal,1-channel analog audio signal
- Simultaneously loop HDMI,DVI,VGA,component,AV,S terminal signal,1-channel analog audio signal
- Input video signal can reach 1920*1080p@60 Hz
- Can collect HDMI audio signal
- Can collect 1-channel analog audio signal
- Provide SDK econd development,High performance plotting engine,achieve image acquisition,cutting,zooming,Achieve image and text superposition,Support for multi code streaming live broadcast:RTSP,RTMP,HLS
- Support main board GPU acculation
- Development routine support VC++/.NET/VB/V4L2
Product Parameter:
- Geometric dimenion:134mmx56mm
- Main unit interface:PCI-Express x1
- Input interface:1 pc DVI interface (can change to HDMI,VGA )
- 1pcs S terminal interface (can change component,composite video CVBS/AV,S terminal signal) 1-channel none-balance stere audio routine
- Loop interface:1 pcs DVI interface (can change to HDMI,VGA )
- 1 pcs S terminal sub-interface (can change component,composite video CVBS/AV,S terminal signal) 1-channel none-balance stere audio routine
- The max sampling rate:1920x1200p@60Hz
- Output image format Size:160x120-1920x1200,pin rate:1-100 fps,colour:YUY2
- Operating system support:support the following operating system x86 & x64 version:
- Windows® XP Professional
- Windows® Server 2003
- Windows Vista®,
- Windows® Server 2008
- Windows® 7
- Windows® Server 2008 R2
- Linux 2.6.14 or Higher
- Power consumption:<= 15W
- Working temperature range:0℃~50 ℃
- Storage temperature range:-20℃-70℃
- Relative humidity range:5%-90%
Note:
- PCI-Express actual transmission bandwidth is related to main unit chip group and computer motherboard.It may be lower than the value here.
- Actual output frame rate is limited by PCI-Express interface transmission bandwidth.It may be lower than the set point.

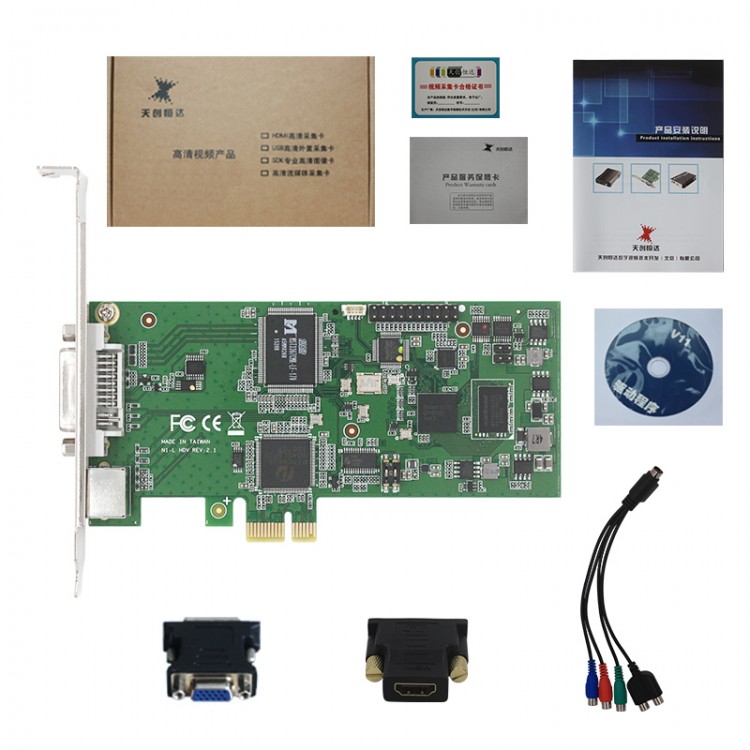

Package List:
- 1 x TC-1000 HD Video Card
- 1 x Cable
- 2 x Connect adapter
- 1 x User manual
- 1 x CD
- 1 x Intruction
