TC-500S 4W UHF Radio Walkie Talkie Handheld Transceiver for Outdoor Uses Smooth Communication

TC-500S 4W UHF Radio Walkie Talkie Handheld Transceiver for Outdoor Uses Smooth Communication

Specifications:
1. General Parameters
- Frequency Range: 400-420mhz (by default); 450mhz-470mhz (optional)
- Channel Capacity: 16
- Channel Spacing: 25/12.5KHz
- Operating Voltage: 7.4V

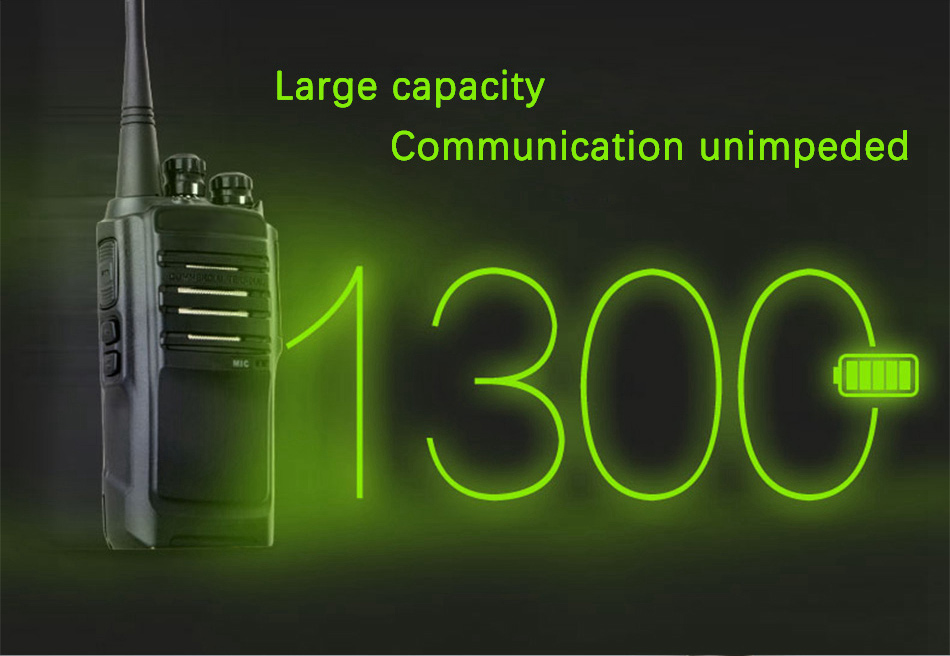

- Battery: 1300mAh (Li-ion)
- Endurance time: 14 hours
- Frequency Stability: ±2.5ppm
- Operating Temperature: -20℃ to +65℃
- Antenna Impedance: 50Ω

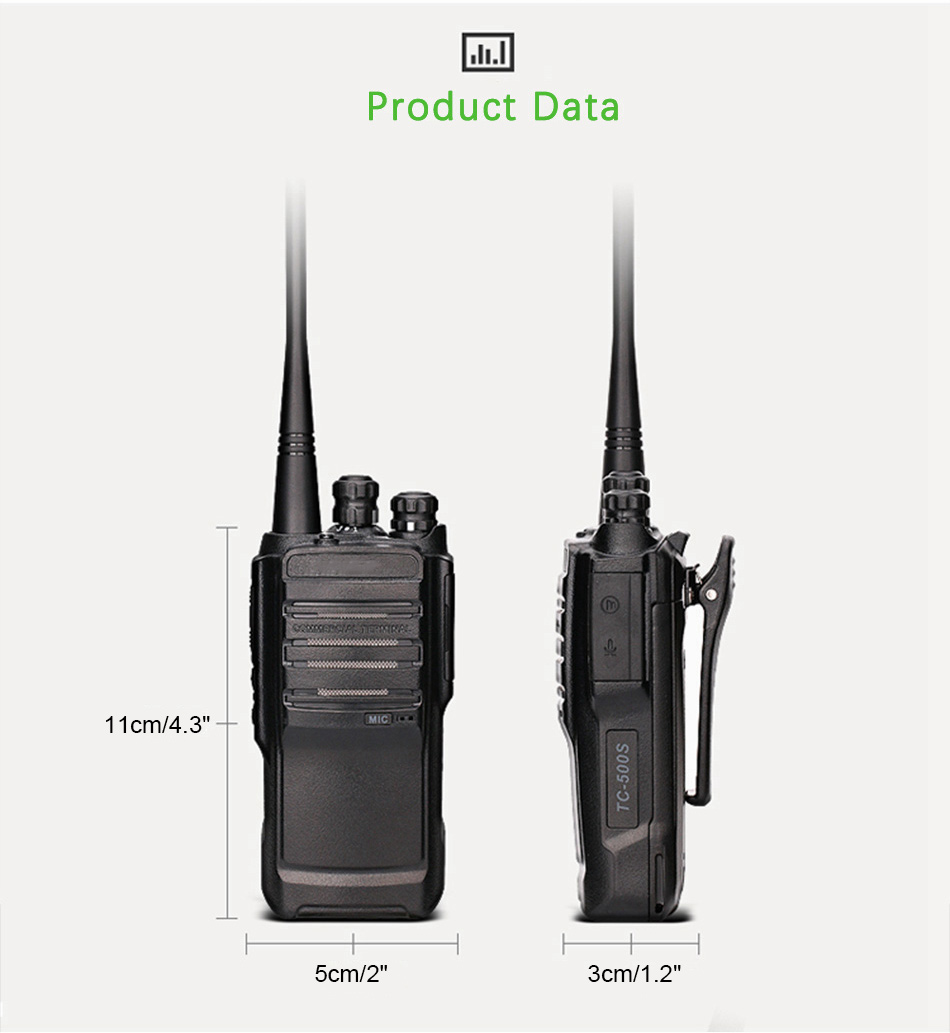

- Dimensions (With standard battery. Excluding the size of antenna): 11x5x3cm/4.3x2x1.2"
- Weight (with antenna & standard battery): 280G/0.6LB

2. Transmitter
- RF Output Power: 4W/2W (UHF)
- Modulation: 16K0F3E/11K0F3E
- Spurious and Harmonics: ≤ -26dBm (<1G)
- FM Noise: 40/35dB
- Audio Distortion: ≤ 5%
- Modulation Limiting: ≤ 5KHz (25KHz); ≤ 2.5KHz (12.5KHz)

3. Receiver
- Sensitivity: ≤ 0.251uV/0.282uV
- Adjacent Channel Selectivity: 70dB/60dB
- Intermodulation: 65dB
- Spurious Response Rejection: 70dB
- SNR: 45dB/40dB
- Rated Audio Power Output: 0.5W (Speaker impedance: 16Ohm)
- Rated Audio Distortion: ≤5% (0.5W)
- Conducted Spurious Emission: -57dBm<1GHz; -47dBm>1GHz

Applications:
- Facilities
- Hospitality
- Manufacturing
- Retail
- Education
- Construction

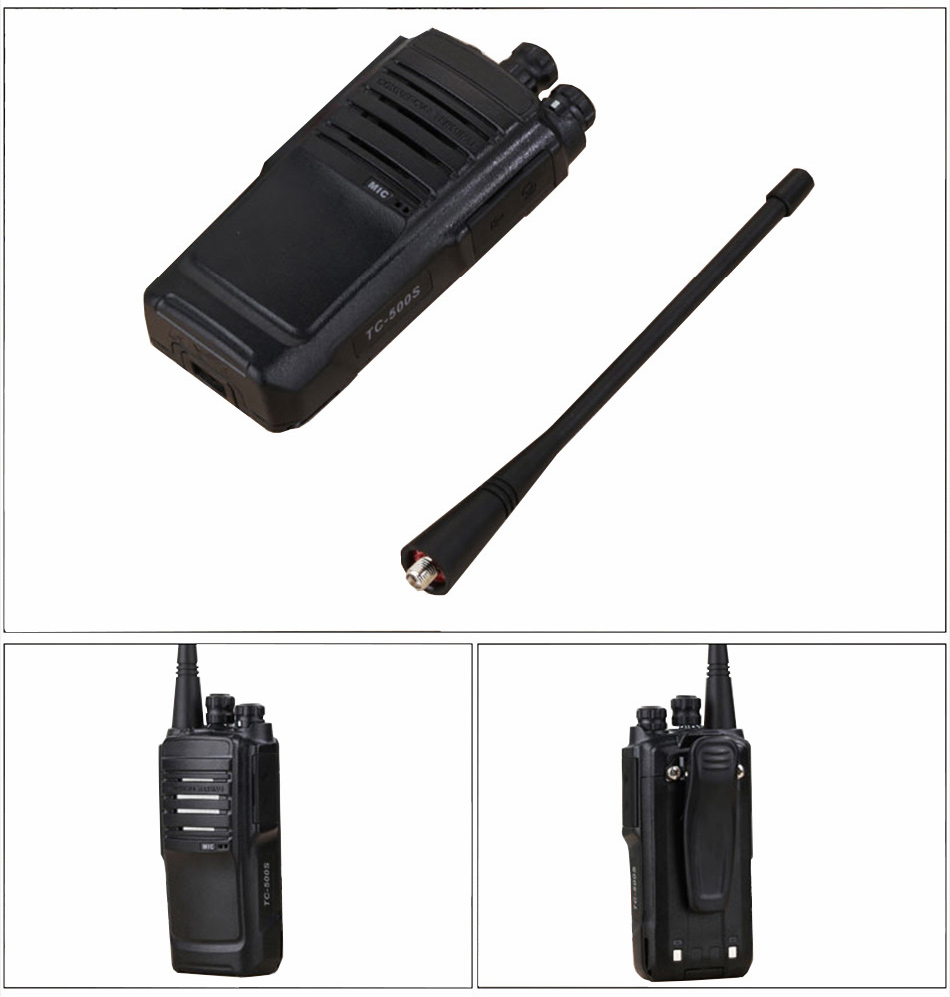

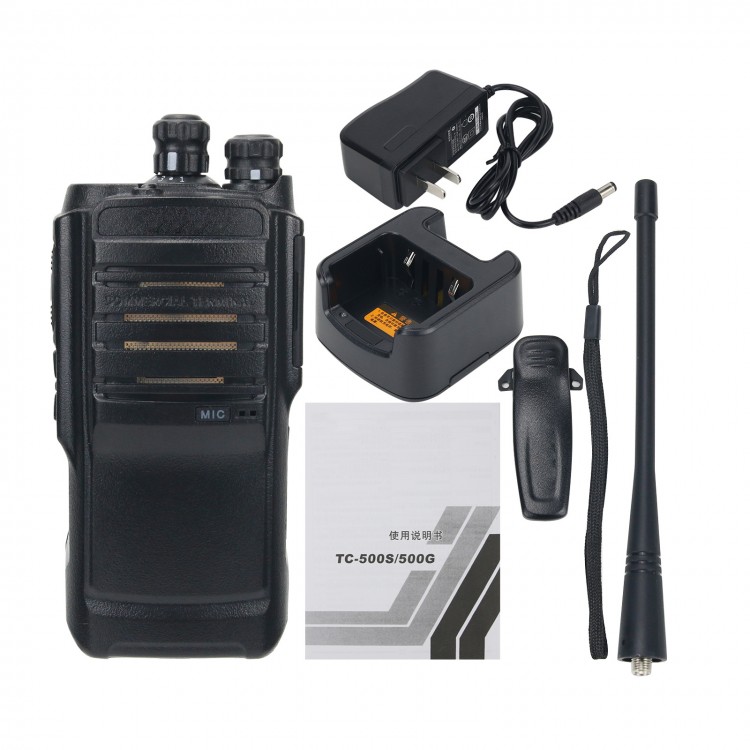

Package Included:
- 1 x Walkie Talkie Body
- 1 x Battery
- 1 x Power Adapter
- 1 x Charger Dock
- 1 x Belt Clip
- 1 x Strap
- 1 x Antenna
- 1 x User Manual

Note:
- The frequency range of the walkie talkie is 400-420mhz by default. 450mhz-470mhz is optional. Please contact us if you want to change the frequency. Thank you!
