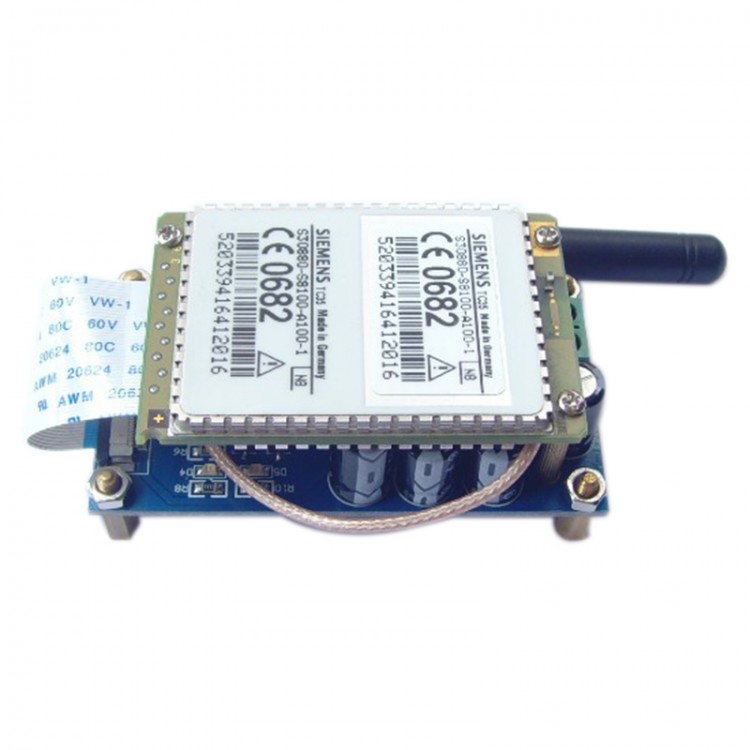

TC35 GSM Module GSM Development Board Mobile Phone Development Board with Voice Interface Antenna

Availability: In stock, usually dispatched in 1 business day

  • Price:$44.01
  • Price in reward points: 440 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $43.13 $42.25 $40.93 $39.17 Contact US
Quantity:

TC35 GSM Module GSM Development Board Mobile Phone Development Board with Voice Interface Antenna

Description:
1. Onboard TC35 dual-frequency 900/1800MHZ highly integrated GSM module;
2. Onboard LM2596 high-power power supply chip, powerful enough to guarantee the modules working stably for a long time;
3. Onboard flip type SIM card, SIM card users convenient loading and unloading;
4. Onboard terminals or DC power supply (the default is terminal),  input voltage: 7.5- 12V;
5. Onboard audio interface and a microphone, is convenient for the user to do a test call;
6. Onboard UART interface to meet the needs of different users;
7. Onboard  three LED lights: the power indicator light, signal light, call indicator light;
8. PCB board size: 68.5 mm x38.5 mm

Package included:
- 1 x TC35 GSM Module GSM Development Board
