TC50M 50KHz CNC USB MACH3 Motion Control Board Driver 6 Axis Card Controller for Engraving Machine

TZT TC50M 50KHz CNC USB MACH3 Motion Control Board Driver 6 Axis Card Controller for Engraving Machine

User Manual: Click here

Description:
- This TC-50M is the 6 axis motion controller
- TC-50M support Mach3 software and standard MPG, through USB to communicate with computer.
- TC-50M motion controller adopts the ARM design framework. The ARM design includes communication, code analytic, underlying algorithm and pulse generation. Rational design, reliable control, convenient operation.
- This manual introduces operation, connection and usage schedule of our professional motion controller for engraving machine. Through a lot of the drawing the users can learn quickly how to use this motion controller.

Products specification
- Support USB;
- 10 ports photoelectric isolated input interface for ordinary digital data；
- 3  ports photoelectric isolated output interface for ordinary digital data；
- 1 port 0-10V spindle speed analog output interface(can change to PWM output)；
- Can support 6 axis stepper systems,50KHz pulse output for every axis；
- ARM motion control chip；
- Compatible with MPG input, support the digital display MPG (NVMPG)from our company。


DownLoad: Click Here


Products Appearance and size
- TC-50M motion controller is with the sealed shell structure, there are 4pcs setting holes at the button. We can fix 4pcs 4mm diameter holes at the cabinet, and install the controller into the cabinet. The controller appearance as the Figure 1-1 and Figure 1-2 show:

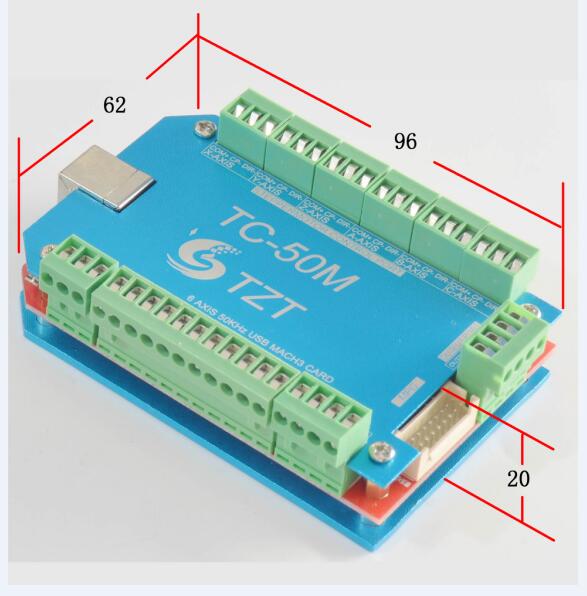

- The products overall size is 96mm*62mm*20mm；

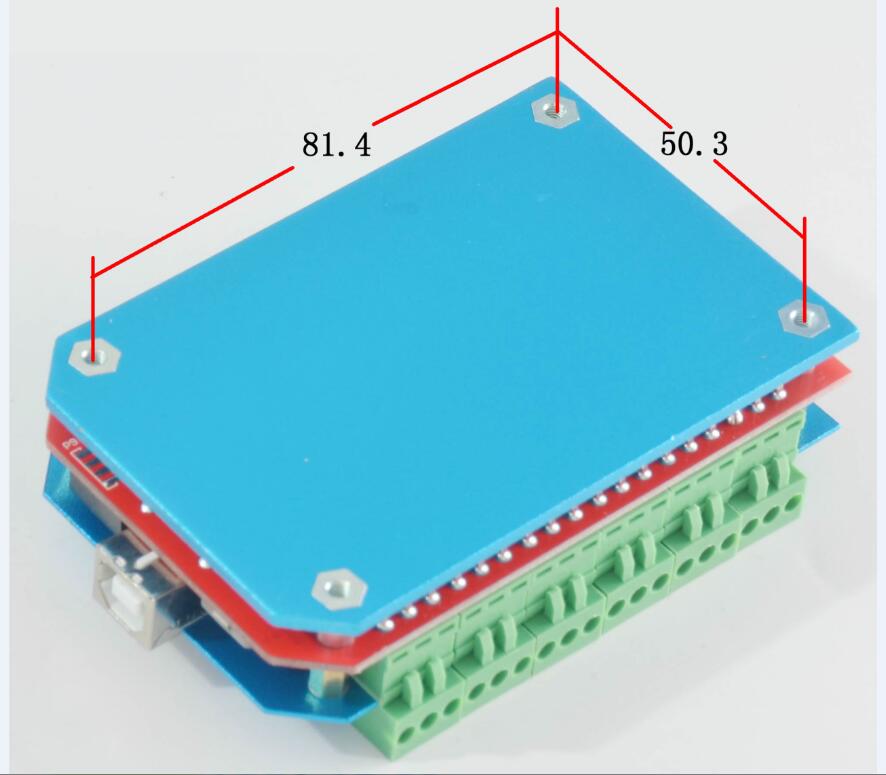

- The bottom install size is 50.3mm*81.4mm。

Package Contents:

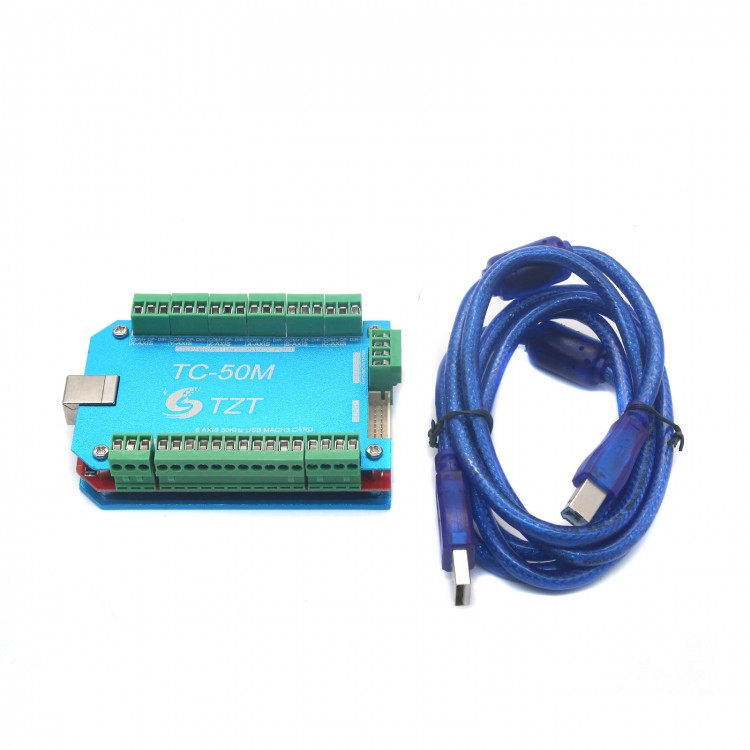

- 1 x TC-50M Controller Card
