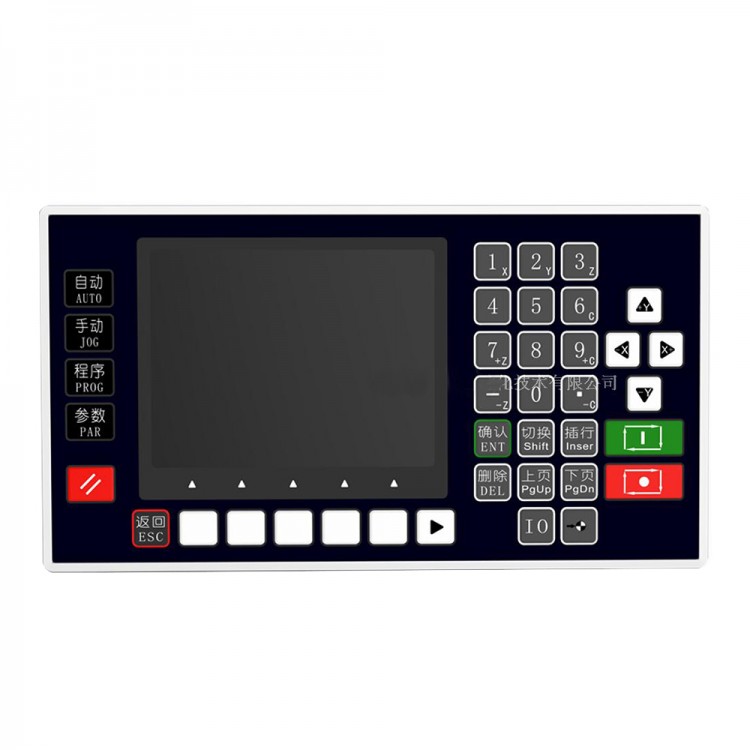

TC5510V Single Axis Stepper Motor Controller Programmable Multi-Rotor Motion Control System for Motor Servo CNC

TC5510V Single Axis Stepper Motor Controller Programmable Multi-Rotor Motion Control System for Motor Servo CNC

Description:
The TC55 New version panel-type motion controller (CNC system) uses high-performance 32bit CPU. The drive device adopts subdivision stepping motor or AC servo motor. It is equipped with LCD monitor and fully enclosed touch-type operating keyboard. The system has high reliability, high precision, low noise, it is easy to operate etc.

Different with CNC controllers of Fanuc and Siemens, this controller use revolutionary conversational programming, which is easy to learn and use.

Main Functions
- Automatically execute:Actual running, Dry running, Single-step execution, Terminate program, Start and Pause function
- Manual operation:Manual high speed, Manual low speed, Jog operation, Back to program zero, Back to machine zero
- Program management:absolute programming, Incremental programming, linear and circular interpolation, back to machine zero, sub-program call,register, delay, repeat, Output, PLC set, Pause
- Parameter settings:Set various control parameters of processing and operation, get the best status of processing effect
- Exterior Manual Operation: control motor clockwise and counter-clockwise spinning, Start, Pause, Alert and Emergency Stop.
- USB Connection and upgrade
- PLC Extension
- I/O Extension
- Isolated I/O port
- Chinese/English panel display

Technical Specifications
- Minimum data unit 0.001 mm
- Maximum data size ± 99999.999mm
- Maximum Speed: 9000mm/min (pulse is 0.001mm)
- Maximum pulse output frequency 150KHz
- 1-Axis
- X,Y,Z,C axis can conduct linear interpolation, X,Y can do circular interpolation.
- Electric Gear: numerator :1-99999 denominator: 1-99999
- System main functions are automatic, manual, program editing, system parameters, self-check, settings, etc.

Package included:
- 1 x  Stepper Motor Controller
