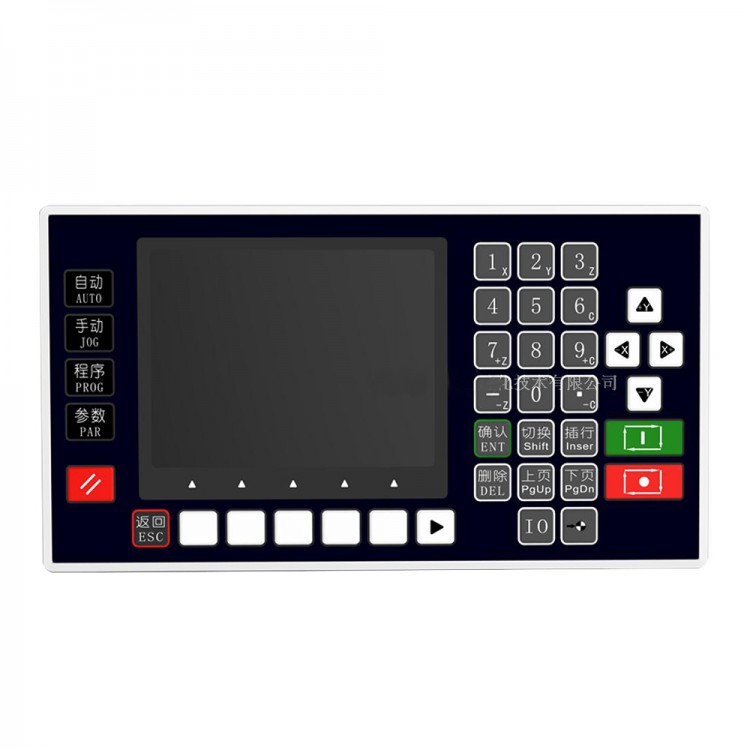

TC5540V 4-Axis Stepper Motor Controller Programmable Multi-Rotor Motion Control System for Motor Servo CNC
Product Introduction
TC55V stepper/servo motor controller is an upgrading version of TC55. It is equipped with 3.5 inch color screen, RS 485 communication, Chinese/English Switch, and USB connection. It is highly reliable, highly accurate, low noise and easy to use.
It is a stand alone controller, it does not need computer to operate.This is not a G code based controller, it is a conversational programming controller. If you want to use G code controller, please buy TC55H of our store.
Programming method
Different with CNC controllers of Fanuc and Siemens, this controller use revolutionary conversational programming, which is easy to learn and use, automatically lead you to finish programming.
Main Functions
- Automatically execute:Actual running, Dry running, Single-step execution, Terminate program, Start and Pause function
- Manual operation:Manual high speed, Manual low speed, Jog operation, Back to program zero, Back to machine zero
- Program management:absolute programming, Incremental programming, linear and circular interpolation, back to machine zero, sub-program call,register, delay, repeat, Output, PLC set, Pause
- Parameter settings:Set various control parameters of processing and operation, get the best status of processing effectExterior Manual Operation: control motor clockwise and counter-clockwise spinning, Start, Pause, Alert and Emergency Stop.
- USB Connection and upgrade
- PLC Extension
- I/O Extension
- Isolated I/O port
- Chinese/English panel display
- Free change of boot picture
Technical Specifications
- Minimum data unit 0.001 mm
- Maximum data size ± 99999.999mm
- Maximum Speed: 9000mm/min (pulse is 0.001mm)
- Maximum pulse output frequency 150KHz
- Axis 1-4 (X,YZ,C)
- X,Y,Z,C axis can conduct linear interpolation, X,Y can do circular interpolation.
- Electric Gear: numerator :1-99999 denominator: 1-99999
- System main functions are automatic, manual, program editing, system parameters, self-check, settings, etc.
- Outside Size 172×94×48mm
- Installing Size: 162×84mm,Front Panel: 4mm
Package included:
- 1 x Stepper Motor Controller
