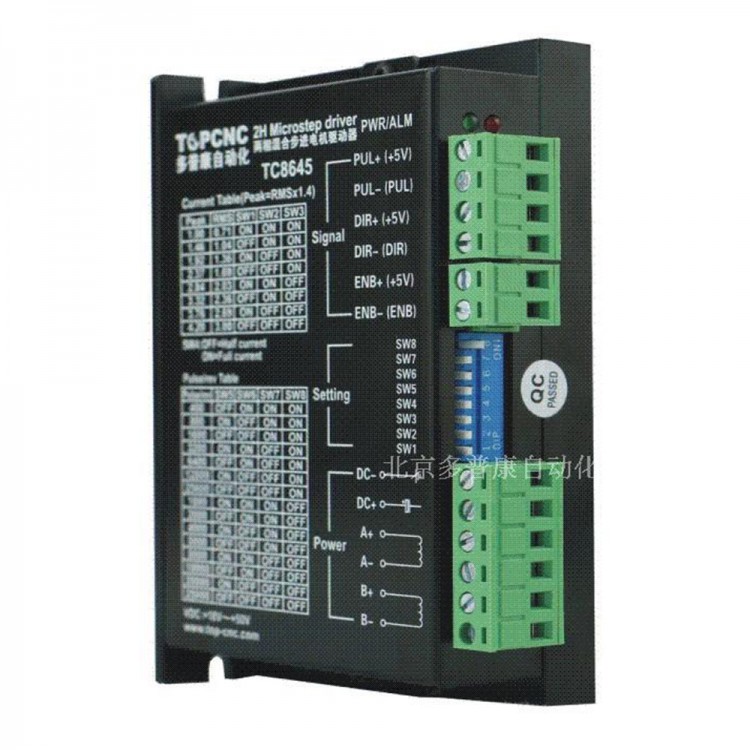

TC8645 2-Phase Microstep Driver Hybrid Stepper Motor Drive for Engraving Machine CNC
Description:
TC8648A, 2 phase hybrid step motor driver, power supply DC18-50V, suitable for motor that drive voltage is 18-50V, current is less than 4.2A, outter diameter is 42-66mm.
For engraving machine, CNC,packaging machinery,medical apparatus and instruments and other devices.
Parameters:
- Input voltage: DC 18-50V
- Output current: 1.0A-4.2A,resolution 0.5A
- Drive: PWM drive output
- Insulation resistance: >500MOhm
- Insulation strength: 500V/minute
- Cooling: Natural cooling
- Ambient humidity: <80%RH
- Vibration: <5.7m/sec/ sec
- Operating Temperature: 0~50 deg C
- Storage Temperature: -20~125 deg C
- Weight: About 200g
Features:
- Bipolar constant current chopping drive technology
- No load start speed: 300-420r/min,maximum speed up to 3500r/min
- Auto half current function
- Maximum 128 microsetp
- Input pulse is compatible with 3.5-24V TTL level
- Over voltage,under voltage,output over current,interphase short circuit and over heating alarm protection
- Low noise
Package included:
- 1 x Microstep Driver
