TCG TRD3 PLUS Decoder Headphone Amplifier USB Optical Coaxial DAC 32bit 384k Asynchronous USB Decoding-Black

TCG TRD3 PLUS Decoder Headphone Amplifier USB Optical Coaxial DAC 32bit 384k Asynchronous USB Decoding-Black

Description:
TRD3 plus is 2015 TCG company launched the latest hifi desktop digital decoding amp one machine, taking into account the Android / USB / fiber / coaxial decode interface is a maximum of up to 32bit/384k asynchronous high-quality decoder, built-in thousand yuan headphone amplifier with (less than 300 ohm hifi earphone), show the TRD3 let you enjoy a carefree music strength.

TRD3 PLUS uses a patented power modules, not the USB-powered decoder comparable to the excellent quality, the use of rave reviews CM6631A upgraded version + AKM4390 digital interface combinations, independent left and right channel filtering, balanced circuit design. A full-function key MCU control both practical and peace of mind (with memory). Famous electronic components constructed using countries, plus TCG team good circuit design and tuning, it must be an ideal choice for you to enjoy high-quality music!
Technology companies have been listening to R & D HIFI sound system for several years, as the name suggests is a "listening experience" as science and technology. Since we launched the TRD / TRD2 / TRD3 decoding amp one, has been loved by the fans, this is no exception, we TRD3 PLUS upgrade an updated digital decoding scheme, the indicators are improved accordingly. Let's take a closer look at it.

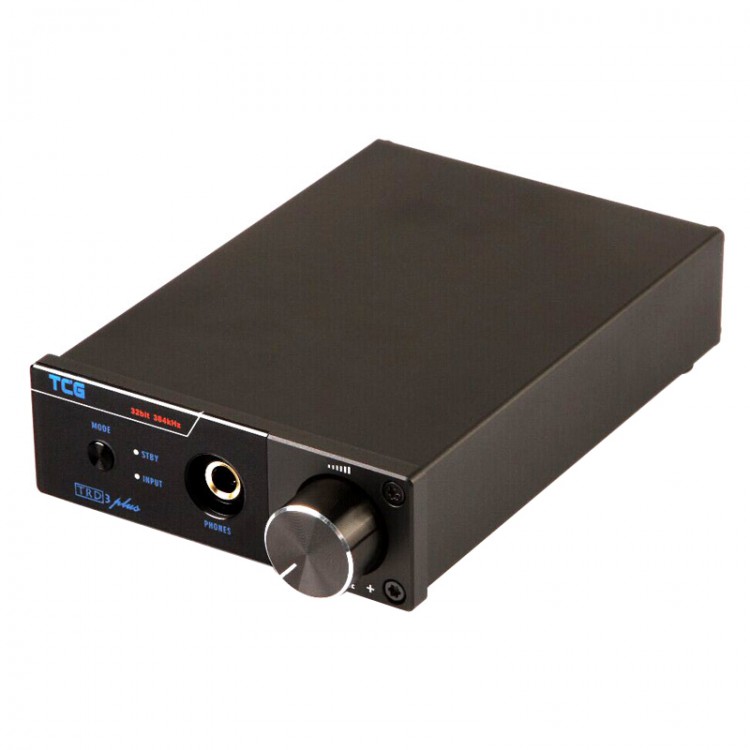

 PLUS TRD3 aluminum alloy body, fine sand blasting process surface treatment, elegant appearance, feel fine. Especially the new design front panel structure process, acrylic hybrid aluminum alloy +, diamond cutting a seamless heavenly robe.

TRD3 PLUS, the operation is simple and convenient, the design key touch full function (operation instructions attached).

Rich interface (USB/ Android, optical fiber, coaxial input), to meet a variety of mainstream digital audio fancier access.

High quality power adapter, powerful output dc9v to 1.3A, power of 12W, coupled with internal machine patent power processing module, TRD3 plus provides excellent power supply, adapter can be used for line design (enthusiasts can upgrade their own before the power line), popular authentication, global general.

TCG TRD3 PLUS Specifications:
- USB Input: 16bit-32bit 32kHz-384kHz
- Optical fiber, coaxial input: 16bit-24bit32kHz-192kHz
- Output level: 2 Vrms
- THD + N: <0.0018%
- Dynamic Range:> 116dB
- SNR:> 117dB
- Channel separation:> 110dB
- Amp output: 32Ω  210mW, 64Ω  270mW, 150Ω  220mW, 300Ω  120mW
- Adaptation Impedance: 32Ω-300Ω
- THD + N: 0.001% @ 10mW
- Machine dimensions: 95 * 137 * 27mm (not including protruding parts)
- Weight: 0.85kg
- Power adapter: Output DC9V (12W) / Input: AC100-240V (CE, FCC, CCC, PSE certification)
- Standard accessories: host, power adapter, USB cable, manual, certificate.
- Giveaway: Android phones OTG adapter cable
- Color: Black

Package included:
- 1 x Decoder
- 1 x Power adapter
- 1 x USB cable
- 1 x Manual
