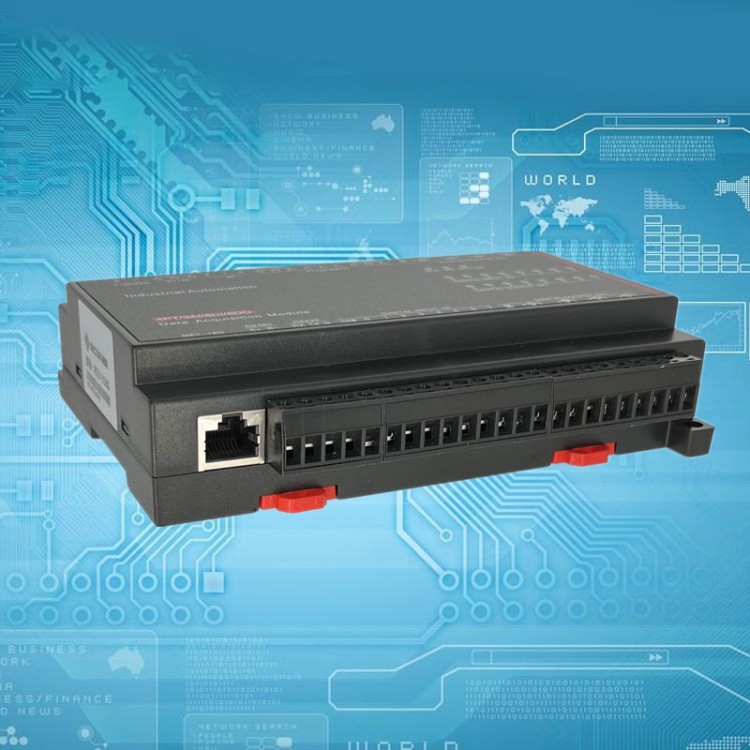

TCP-518R2 8-Channel PT100 Data Acquisition Module 8 Digital Input and 8 Digital Output NPN Transistor Output IO Module

TCP-518R2 8-Channel PT100 Data Acquisition Module 8 Digital Input and 8 Digital Output NPN Transistor Output IO Module

Description:
- The general data acquisition module is widely used in building, heating and ventilation, fire protection, water supply, petrochemical, environmental protection and other industries. It is adopted by most system integrators, automation companies and research institutes. It is a stable and reliable data acquisition module with high personality ratio.
- Support PLC for Siemens and others.
- Support configuration software for KingView, for Force Control, for MCGS and etc.
- Support RS232 and RS485 interfaces, Modbus protocol touch screen and text screen.
- Support online communication of all standard Modbus devices.

Specifications:
- 518R 1: 8PT+8DI+8DO【Ethernet】
- 518R 2: 8PT+8DI+8DO【Ethernet+485】
- 518R 3: 8PT+8DI+8DO【Ethernet+485+232】

System Parameter:
- CPU: 32 bit for ATMEL ARM high speed processor, 72MHz
- Operation system: GCOS, 10ms scheduling mechanism
- Power supply voltage: 7-30VDC at 3w, reverse power supply protection, isolation design
- Communication interface: DCDC isolation design, 2500V lightning protection, ESD, overvoltage, overcurrent protection
- Dimensions: Volume (L x W x H): 155x 95 x 39 (mm)
- Installation method: screw fixing, rail installation, two ways
- Environmental index: -40 ~ 85℃, 5% ~ 95%RH non-condensing, IP20 protection
- Hardware watchdog: 1 second hardware watchdog protection system
- Channel isolation: 2500VDC isolation, anti-interference protection design

RS485/RS232 Parameter:
- Baud rate: 1200 ~ 115200
- Communication protocol: Modbus RTU
- Default: 9600.N.8.1, station no.: 1

Ethernet parameter:
- Communication interface: RJ45 interface
- Communication protocol: Modbus TCP protocol
- Communication speed rate: Communication with upper computer, 100 times/second above
- Communication bandwidth: 10M/100Mbps
- IP address: 192.168.1.75
- Terminal no.: 502
- TCP link: It can establish links with 8 computer clients at the same time and communicate at the same time
- Support internet cable: Crossover cable / Direct network cable
- Configured software:
  IP Address: 192. 168. 1. 75
  Port number: 502
  Subnet-mask: 255. 255. 255. 0
  Default gateway: 192. 168. 1. 1

Digital Input:
- Input mode: NPN, PNP, Dry Contact, Wet Contact
- On level: 5-30VDC
- OFF level: 0-1VDC
- Refresh frequency: Update all I/O data once every 0.1 second
- Application design: Industrial-grade anti-interference design, stable and reliable data, and anti-misconnection protection design.


Transistor output:
- Output method: Collector NPN output
- Load voltage: 5-30VDC, 100mA
- Isolation protection: Optocoupler isolation
- Response speed: 0.01s (10ms)
- Application design: Industrial-grade anti-interference design, stable and reliable


PT100 Thermal resistance acquisition:
- Input method: Two/Three-wire system: PT100 sensor
- Temperature measuring precision: 0.1℃
- Temperature measuring range: -200 ~ 320℃
- Application design: Industrial-grade anti-interference design, stable and reliable data

More Information: http://pan.baidu.com/s/1i5BgUsH

Package Included:
- 1 x Module
