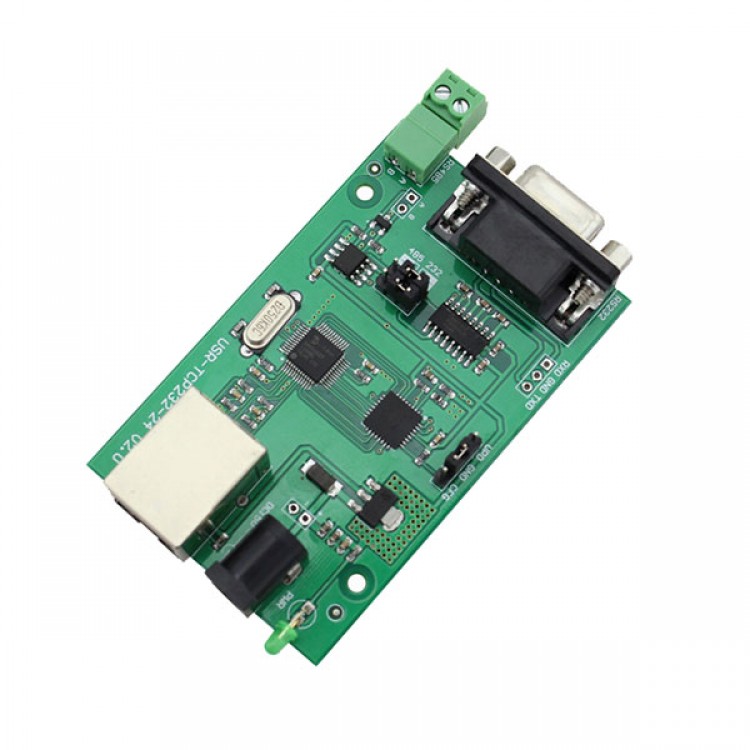

TCP/IP to RS232 RS485 Module with free software Serial-Ethernet USR-TCP232-24

TCP/IP to RS232 RS485 Module with free software Serial-Ethernet USR-TCP232-24

Products:
- USR-TCP232-24
- RS232 serial to ethernet converter module is a multi-functional embedded ethernet serial data conversion module, which integrates a TCP / IP protocol stack, the user can easily use it to send data from serial to ethernet.
- Unique " virtual serial port" software,easy to operate our module
- Virtual serial port program support windows NT4,windows7 64 bit
- Sound PCB Library File
- Original import core

Features:
- Auto detected 10/100M High speed ethernet
- support RS232 and RS485 interface, choose by jumper
- AUTO MDI/MDIX,Use crossover cable or parallel cable connection;
- Bandrate RS232 300 ~ 256000 bps, RS485, 300 ~ 115200 bps
- Work mode: TCP Server, TCP Client, UDP mode, UDP Server mode;
- Support for virtual serial port mode
- Work mode and ip and port can be set easily;
- Free setup software and setup Agreement available.
- Auto connect when in tcp mode, take a Safe and reliable link all the time
- Supply demo code for TCPIP programm , and can support you to do it.
- Agreement: ETHERNET、ARP、IP、UDP、TCP;
- Power: 5V DC.
- Size (L×W×H): 80×50×13.6(mm).
- Operating temperature: -25~75°C.
- Preservation: -40~85°C, 5~95%RH.

Character:
- 32 bits ARM CPU inside;
- LAN : 10/100Mbps; protect: Built-2KV isolated electromagnetic;
- RS232 x 1: TXD RXD GND;
- network protocol: ETHERNET ARP IP UDP TCP ICMP;
- Software tool: configuration software, TCP/UDP test soft, RS232 debug soft.
- Configuration method: RS232 or via Ethernet, free software available.
- Power : DC 5V / 500mA
- Size (L×W×H): 90×83×25(mm)
