TCS CDP Pro Plus 2015.3 Delphi DS150 E VCI for Autocom Car and Truck Auto OBD2 Diagnostic Tool

TCS CDP Pro Plus 2015.3 Delphi DS150 E VCI for Autocom Car and Truck Auto OBD2 Diagnostic Tool

Product Description:
- For Autocom CDP+ is a diagnostic tool used with a PC or Pocket PC and Autocoms powerful CARS Diagnostic software, making it a powerful and flexible tool for all vehicle shops,fleet owners, vehicle testing, road service, police and armed forces.
- CDP+ is a quick and reliable diagnostic tool serving as a link between vehicle and computer. It works on both old and new vehicles.
- Simply connect CDP+ to the diagnostic socket in the vehicle and it will communicate with the diagnostic software installed on your PC.
- With CARS, you are able to perform brand specific diagnostics for cars and light vans from 1988 onwards. A total of 47 different brands. With TRUCKS software package, you are able to perform brand specific diagnostics for light and heavy commercial vehicles, buses and trailers from 1995 onwards. A total of 37 different brands. The diagnostic program GENERIC is designed for the legislation based diagnostics, specially targeted for emission related fault codes. GENERIC is included in CARS and TRUCKS packages.Multiplexer function, 2xHS CAN (ISO 11898-2), SW CAN (SAE J2411), K/L (ISO 9141-2), VPW (J1850), PWM (J1850), RS485 (J1708), TTL and (SPI, analog in, 5volt out)

Features and Benefits:
- FLIGHT RECORDER. With the flight recorder function, you can record parameters in real time while you are driving a vehicle.
- During recording, you can, with a press of a button, highlight the specific error so that you can investigate the detected error at a later time. - CDP+ is equipped with built-in memory thus removing the need to bring a computer. Memory card not include in package.

Multi Colour Indicator:
- With the multi colour indicator on CDP+, you have full control of the diagnostic process. Different colors and sound communicates the status and the placement of the indicator allows you to see it from a far. For example, if the indicator alternates between blue and green the CDP+ is in communication with the vehicle control unit.
- CONNECTOR WITH LED.To locate the diagnostic connector in the vehicle with ease, even if it’s located in a dark and inaccessible place, there is a LED on the 16-pin connector to help you along. The location and the design allows the light to function even when using the adaptor cable for vehicles without a 16-pin diagnostic socket.VOLTAGE CHECK.
- When CDP+ is connected to the vehicle, the unit will check the battery voltage of the vehicle and automatically adjusts itself to the vehicle’s voltage level of 12 or 24 volts. If the voltage gets too high or too low, CDP+ will warn you with both sound and light and you will also be alerted through the battery icon in our diagnostic software.
- CHASSIS NUMBER VIN. In our CARS software, we have a smart function that allows you to read out the chassis number from the vehicle that you would like to diagnose. This ensures that the right model and year is selected automatically. In addition, engine code for vehicles, which are commonly available on the markets, is also selected automatically.

Language support: English, Bulgarian, Cesky, Dansk, Deutsch, Romana, Russian, Srpski, Sumenn Kieli, Svenska, Turkish, Espanol, Francais, Greek, Hrvatski, Hungarian, Italiano, Nederlands, Nosk, Polish, Portugues.

Note:
-TURN OFF your internet connection.
- 1-  SETUP software ( start.exe ),
- write product id ( for cars + : a-710-142 ) ,
                             ( for trucks +: a-710-210 )
- Write the S/N and Hardware Key
- Cars + : serial number; 100251, HW key;  EYGRNVNMRBAO
- Trucks + : serial number; 100251, HW key; VTLOAGIDAIWF
- continue
- will open to Software activation page
- 2 - in CD have Autocom2015_Patch.exe
Autocom2015_Patch.exe
- Software activation page on ( Cars CDP+.exe )
- click to Activate via USB
- click to Manuel mode
- click to Save file
- click  to Manuel mode ,
- click to Open file
- and software will run

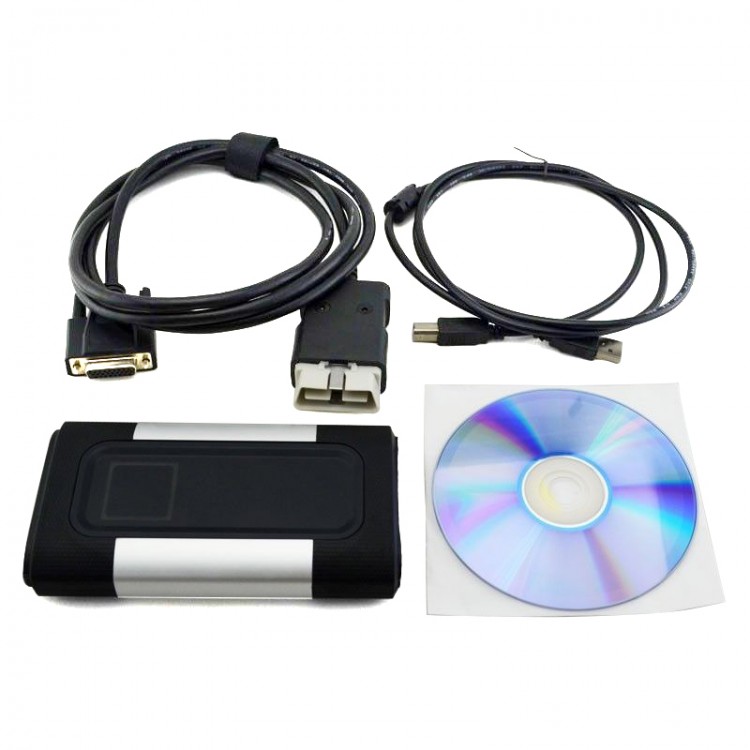

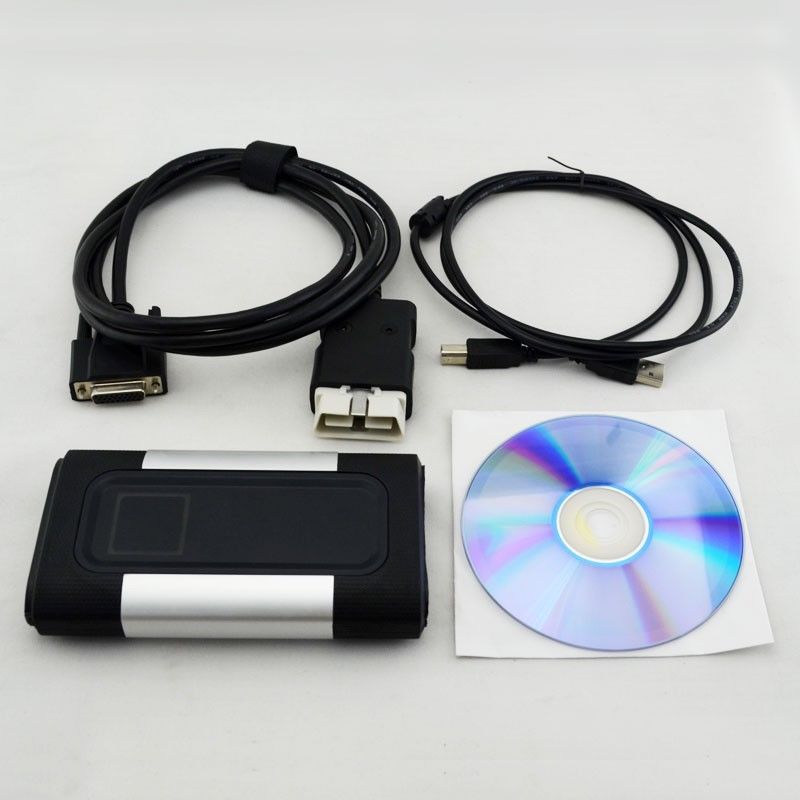

Package List:

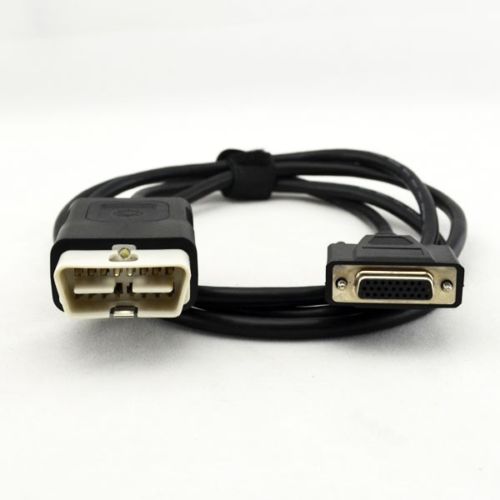

- 1  x   2015.3 For AUTOCOM CDP PRO+ with OBD2 cable
- 1  x   USB Cable
- 1  x   CD
