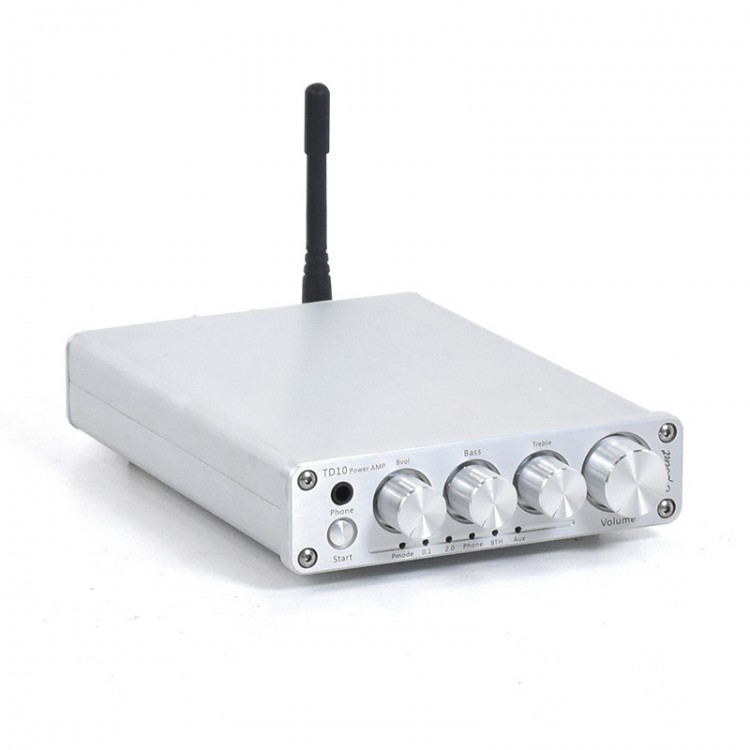

TD10 70W+70W+140W 2.1CH Power Amp Hifi Digital Power Amplifier BT5.0 Small Amplifier For Subwoofer

TD10 70W+70W+140W 2.1CH Power Amp Hifi Digital Power Amplifier BT5.0 Small Amplifier For Subwoofer

Features:
* 2.1-channel digital bluetooth amplifier
* Small and portable power amp
* Hifi sound effect
* Shocking treble and powerful bass. 360° surround sound for an immersive feeling
* Can be used to drive a 12" subwoofer
* Durable aluminum alloy housing is dust-proof, drop-resistant and waterproof
* QCC3031 Bluetooth 5.0 chip enables more stable connection and higher quality music transmission. Support for SBC/AAC/APTX/APTX-LL/APTX-HD
* Dedicated for digital circuits, customized pure copper high-power loop-closed anti-jamming inductors to ensure long-term high-current output
* QCC3031 HD lossless 5.0 Bluetooth module: new technology supports for connection to Android and Apple mobile phones, and easily transmits lossless music
* HIFI DAC chip ES9018K2M is adopted, and it supports 384kHz/32bit sampling, the SNR is as high as 127dB, and the distortion is lower than -120dB, providing listeners with abundant information, ultra-high quality, and faithful reproduction
* Dual TPA3156 power amplifier IC, total power up to 280W, high-frequency and high-current output, and amazing low frequency
* 4pcs 5532 op amps. It integrates preamp and tone adjustment. Its timbre is round, the sound quality is clear and transparent, the sense of hearing is delicate and soft, and the treble is stretched and calm
* ±12V boost, the op amp uses ±12V power supply
* 2.0 stereo mode and subwoofer mode; headphone amp mode can be turned on/off

Specifications:
* Product name: TD10
* Bluetooth version: 5.0
* Output power: 70W+70W+140W
* Bluetooth format: For SBC/AAC/APTX/APTX-HD
* Input method: Bluetooth/AUX
* Frequency Response: 20Hz-20kHz

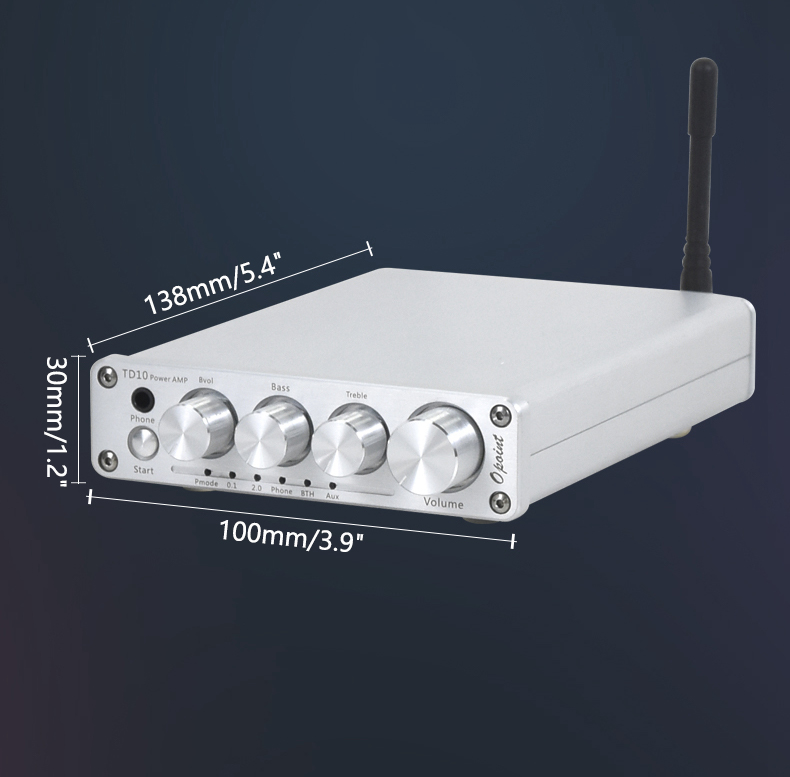

* Dimensions: 100 x 138 x 30mm/3.9 x 5.4 x1.2"
* Product weight: 370g/0.8 lb

Package Included:
* 1 x Power Amp with Antenna
