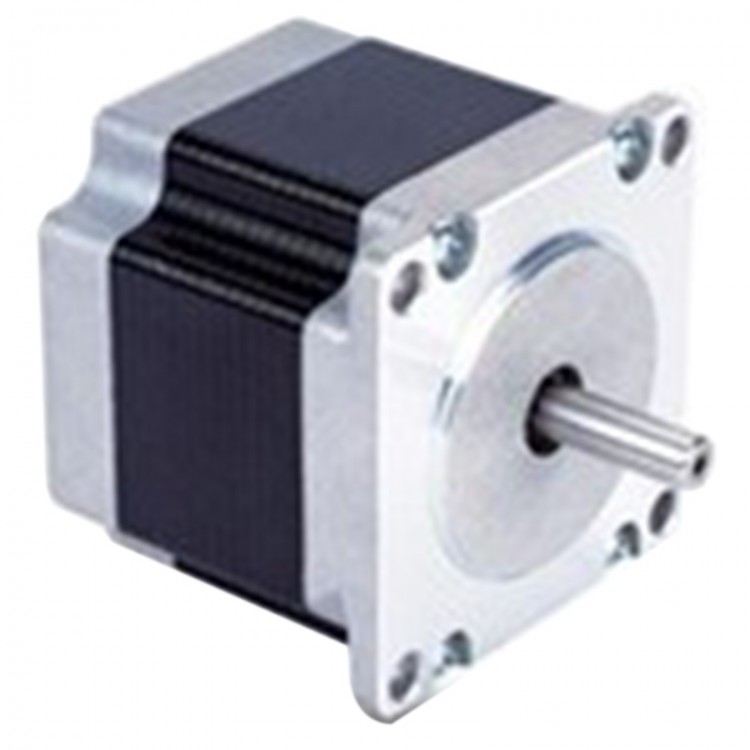

TDA209-S 1.8 Degree 2.4V 3.0A 0.9N.m Three-Phase Asynchronous Stepping Motor for CNC
Parameters:
- Holding torque: 0.9N.m
- Step angle: 1.8degree
- Voltage: 2.4V
- Current: 3.0A
- Resistance:0.9Ohm
- Inductance: 1.3mH
- Motor length: 56mm
- Stepping accuracy: -+5%
- Resistance accuracy: -+10%
- Inductance accuracy: -+20%
- Temperature: 80 deg C Max.
- Environment temperature: -20~50 deg C
- Insulation resistance: 100MOhm Min.500V DC
- Voltage: 500V AC 1minute
- Insulation class: F
Note:The pictures shown are for your reference only.
Package included:
- 1 x Stepping Motor
