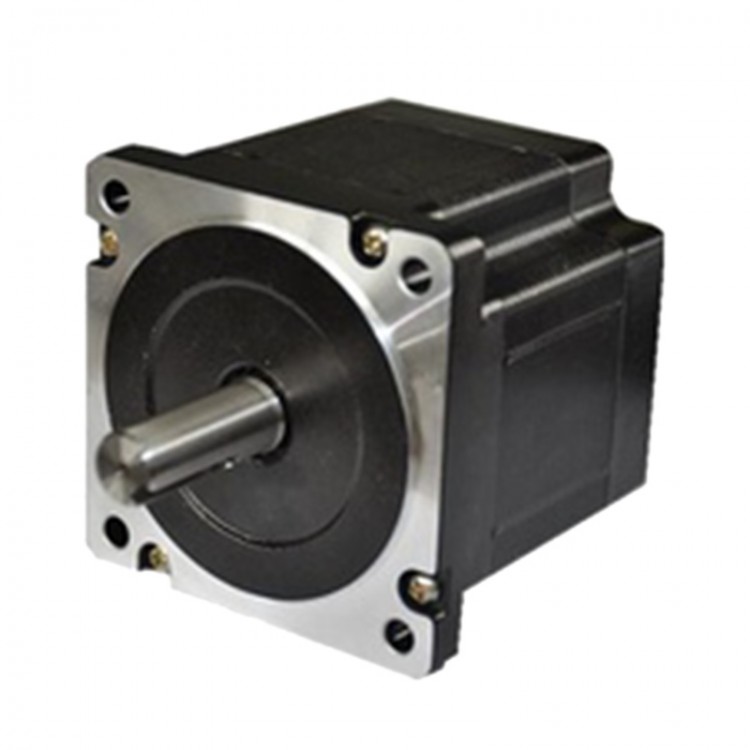

TDA3120-S 1.8 Degree 4.7V 4.4A 9.7mH 12.0N.m Two-Phase Stepping Motor for CNC
Parameters:
- Holding torque: 12.0N.m
- Step angle: 1.8 degree
- Voltage: 4.7V
- Current: 4.4A
- Resistance: 1.7Ohm
- Inductance: 9.7mH
- Body length: 150mm
- Temperature rise: 85deg C Max.
- Insulation Class: F
- Environment temperature: 10~50 deg C
- Insulation resistance: 100MOhm Min.500V DC
- Insulation strength: 500V AC 50Hz 1mA Minute
Package included:
- 1 x Stepping Motor
