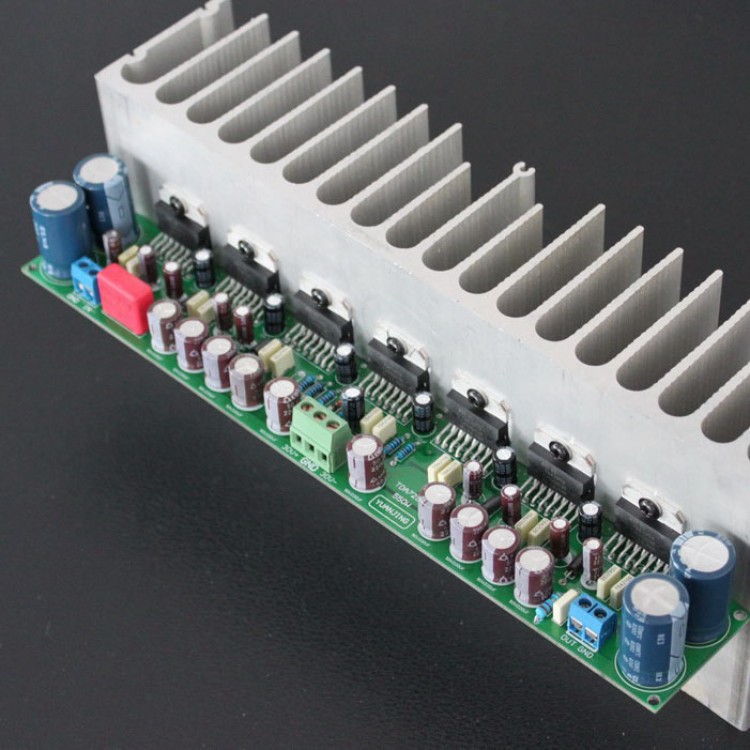

TDA7293 Parallel 555W Mono Power Amplifier Board Assembled Amplifier Board
Introduction:
- Input voltage:recommend DC+/-35V (can not exceed 45V)
- PCB size:245*41MM
- Output power:555W
- The Minimum impedance can connect 0.5ohm speaker.
- This is a assembled &tested Mono amp board,use 7pcs original SGS-THOMSON TDA7293 ICs
- PCB Board maybe in Red or Green color
Note: Must need add big heatsink to run it.
Must connect the +/- Voltage at the same time,or will damaged the IC,
Please make sure the IC has no Short circuit with the heatsink.
( we will not respond for the IC burned)
If you want amplifer board with heat sink,pls click 25501
Package include:
- Assemble 555W Momo TDA7293 Amplifier board X1 (not include heatsink)
