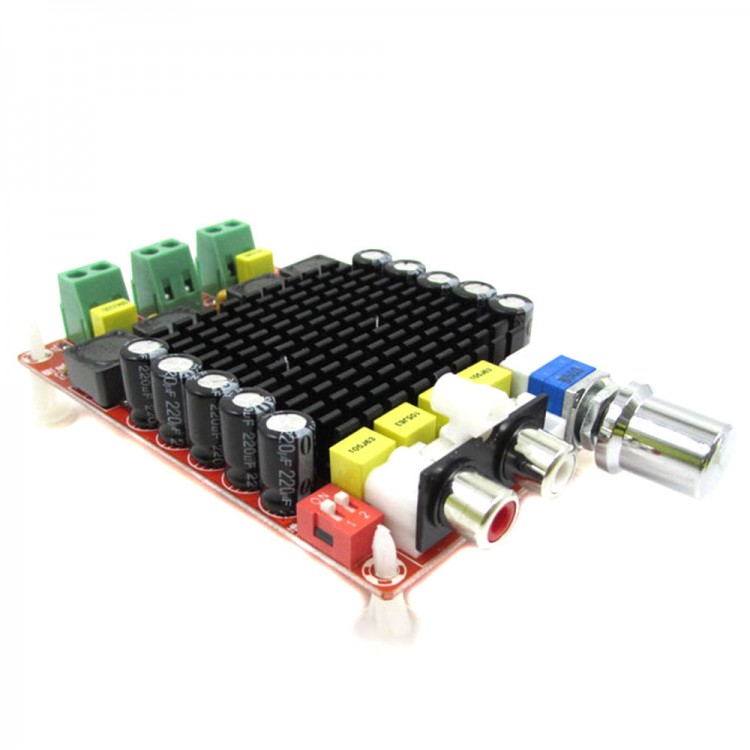

TDA7498 XH-M510 Digital Power Amplifier Board 2x100W DC14 to 34V for Audio Car
Specifications:
- The input voltage: DC14-32V
- Output power:100W*2
- Output resistance:4-8ohm
- Line type:Class D
- Chip:TDA7498
- Harmonic distortion:Po=1W/0.05%
- Frequency response range:18-100KHZ
- Switching frequency:360KHz
- Signal to noise ratio:110db
- Size:96*64*25mm
Main features:
- Output power:100w+100w (VCC+32V,RL=4ohm,THD=10%)
- Wide:14-30v signal power supply
- 4 gain optional:(21.6dB,27.6dB,31.1dB,33.1dB)
- Using differential input to reduce common-mode noise significantly
- With pattern of the fault and silent mode
- With intelligent protection function
- Have overheating protection function
Packaging
- 1pcs*XH-M510 TDA7498 high-power Digital amplifier board
