TECH2 Code Car Scanner Diagnostic Tool Scan Tool for GM SAAB Opel Isuzu Suzuki Australia Holden

TECH2 Code Car Scanner Diagnostic Tool Scan Tool for GM SAAB Opel Isuzu Suzuki Australia Holden

Attention:
- It can only support 12V cars, not trucks.
- It comes with a 32MB card by default. One car model corresponds to one language. Please leave a message of the car model and language you want when placing an order because not all the models can be stored in one card. If you want to fit more models, additional 32MB memory cards needs to be bought. If there is no remark, the English software for GM will be sent by default.
- Please kindly notice that there is just one 32MB memory card. Please tell us:
1. Which kind of 32MB card (for GM, SAAB, Opel, Isuzu , Suzuki, and Holden)
2. What language you need.

For GM: English/Portuguese/French/Spanish/Japanese/Chinese
For Holden: English/Australian
For Opel: English/ German/Spanish/Chinese
For SAAB: English/Chinese/French
For Suzuki: English
For Isuzu: English/Chinese

Software Language List:
For 1997-2014 Opel German 167.000.bin
For 1997-2014 Opel Russian 167.000.bin
For 1997-2014 Opel Swedish 167.000.bin
For 1997-2014 Opel Spain 167.000.bin
For 1997-2014 Opel Italy 167.000.bin
For 1997-2014 Opel English 167.000.bin
For 1997-2014 Opel Chinese 167.000.bin

For 1991-2013 GM German 32.007.bin
For 1991-2013 GM French 33.004.bin
For 1991-2013 GM Portugal 33.002.bin
For 1991-2013 GM Thai 32.007.bin
For 1991-2013 GM Italy 33.002.bin
For 1991-2013 GM English 33.004.bin
For 1996-2009 lsuzu Chinese 111.390.bin
For 1996-2013 Isuzu Chinese 11.540.bin
For 1997-2008 Opel German 85.001.bin
For 1997-2009 Opel Spain 151.001.bin
For 1997-2011 Opel Chinese 151.001.bin
For 1997-2012 Opel Italy 133.001.bin
For 1997-2013 GM china1 33.002 Simplified Chinese.bin
For 1997-2013 GM china2 32.001 Simplified Chinese.bin
For 1997-2013 GM Korean 33.002.bin
For 1997-2013 GM Spain 33.004.bin
For 1997-2013 GM Netherlands 33.004.bin
For 1997-2013 Opel Russian 151.001.bin
For 1997-2013 Opel English+151.001.bin
For 1997-2014 Opel English 167.000.bin
For 1998-2012 SAAB Traditional Chinese 148.000.bin
For 1998-2012 SAAB Poland 2.000.bin
For 1998-2012 SAAB German 148.000.bin

For 1998-2012 SAAB Russian 2.000.bin
For 1998-2012 SAAB French 148.000.bin
For 1998-2012 SAAB Korean 148.000.bin
For 1998-2012 SAAB Swedish 148.000.bin
For 1998-2012 SAAB Italy 148.000.bin
For 1998-2012 SAAB Chinese 148.000.bin
For 1999-2012 Holden English Australia 147.000.bin
For 1999-2012 SAAB Spain 148.000.bin
For 1999-2012 SAAB English 148.000.bin
For 1999-2013 Holden English 149.000.bin
For 2006-2010 lsuzu English 107.021.bin
For SUZUKI English 01.210.020.bin

Features:
1. Original software for GM has powerful and comprehensive detection functions. It tests the power train, body and chassis
2. Supports for all GM vehicles produced after 1993, including for North American GM, Shanghai GM, Isuzu, SAAB and Opel
3. The hardware can be upgraded
4. Large screen with bright background light
5. With RS232 and RS485 ports, connected with computer or other instruments
6. Store and playback fault codes, lock data frames and fault records
7. Able to observe the status of the vehicle diagnostic test during a road test
8. Humanized layout of buttons makes it easy to operate
9. A 32M card enables easy upgrading
10. Connect a CANdi module to detect vehicles equipped with CAN system (optional)

The Following Vehicles Utilize the CAN Interface:
05 For Buick Allure (3.6L)
05 For Buick LaCrosse (3.6L)
05 For Buick Rainier (5.3L)
04-05 For Buick Rendezvous (3.6L)
04-05 For Cadillac CTS (3.6L)
04-05 For Cadillac SRX (3.6L / 4.6L)
04-05 For Cadillac XLR (4.6L)
05 For Cadillac STS (3.6L / 4.6L)
05 For Chevrolet Cobalt (2.2L)
05 For Chevrolet Corvette (6.0L)
05 For Chevrolet Equinox (3.4L)
05 For Chevrolet Trailblazer (5.3L)
05 For Chevrolet SSR (6.0L)
04 For Chevrolet Malibu (Body/Chassis only)
05 For Chevrolet Malibu (3.5L)
05 For GMC Envoy (5.3L)
05 For Pontiac G6 (3.5L)
05 For Pontiac GTO (6.0L)
05 For Pontiac Pursuit (2.2L)

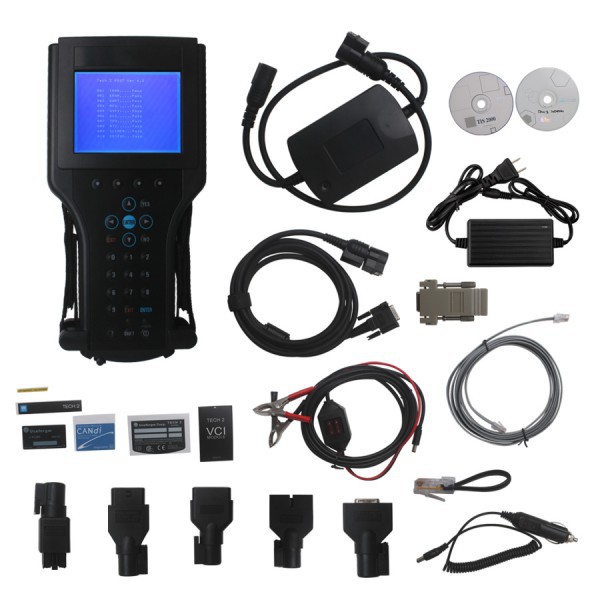

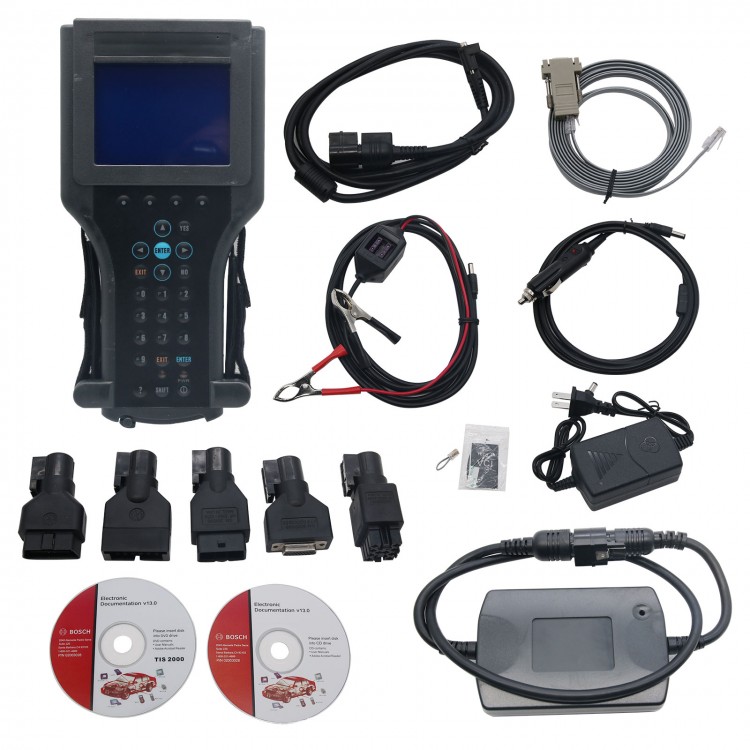

Package Included:
- 1 x Set of TECH2 Scanner



How to Work?
Technician can apply the maintenance programming system to reprogram and set up automotive computers after 1993. To complete this work, you need to configure the computer, Tech2 and maintenance programming system disc.

The TECH2 diagnostic detector consists of LCD screen, four soft keys, standard keyboard, vehicle communication interface module, and RS232 communication port. By replacing different plug -in cards, different models can be tested.

The operation steps are as follows:
(1) Turn on the power, the instrument enters the self-check state, and the screen performs "SYSTEM INITIANLIZING" for about 4 seconds; when the instrument emits a "beep", the screen will display the version information of the instrument.　
(2) Press Enter to enter the main menu, the screen displays: F0-Diagnosis, F1- Service Program System, F2- Display Captured Data, F3- Tool Options, F4-Enable.　
(3) Use the up and down cursor keys to select the target and press the enter key to confirm.　
(4) Select the F0 function, enter the vehicle specification option, and select the model year by moving the cursor keys. Press the enter key to enter the vehicle system, select the appropriate type, and then press the enter key to enter the system selection menu, the screen displays: F0-engine power, F1-body, F2-chassis, F3-diagnostic circuit check.　
(5) Move the cursor keys to select F0 and press Enter to enter the engine type option. At this time, you can choose 3.2L V6G8 or 3.1L V6L82. Choose the former and press Enter to directly enter the following functions; select the latter and press Enter After pressing the car key, you must select for BUICK and press Enter to enter the following functions. The screen displays: F0- fault code (DTC), F1- data display, F2- special functions, F3- collect, F4-I/M information, F5 -ID information.　
(6) Select DTC and press Enter to enter the diagnostic code function: F0-DTC information, F1- failure record, F2- clear fault code, F3- collect information.　　
(7) Move the cursor keys to select F0, press the Enter key to confirm, and enter the following interface: F0-DTC information, F1- view fault code (special DTC), F2- clear fault code and record, F3- diagnosis test description.　　
(8) Move the cursor keys to select F0, press the Enter key to confirm, and the fault code will be displayed. Use the cursor keys to turn pages; or press the corresponding key of INFO to provide relevant help information.　　
(9) Return to "7", select F1, press Enter to confirm, and enter the fault query interface. At this time, you can enter the fault code to query the referred fault and provide relevant help information.
(10) Return to "6", select F1 and press Enter to confirm. At this time, the fault code can be displayed.　　
(11) Return to "6", select F2, press Enter to confirm, the screen prompts: Do you really want to clear it? (Y/N), press Y key to clear, press N key to cancel.　　
(12) Return to "6", select F3, press Enter to confirm, the screen displays: Recapture information, repeat display, and prompt whether you want to refresh (Y/N), press Y to recapture, press N to repeat display.　　
(13) Return to "5", select F2, press Enter to confirm, the screen displays: engine, transmission.　　
(14) Move the cursor keys to select "Engine", press Enter to confirm, and enter the following operation interface: F0- Engine number? Net? F1- Catalyst data, F2-EGR valve data, F3- Oxygen sensor data, F4- Instrument data , F5- ignition data, F6- output driver data, F7- canister data.　　
(15) Move the cursor keys to select F0 engine data, and press Enter to enter the following interface: engine speed, ideal idle speed, water temperature, intake air temperature, air flow sensor, engine load, etc. 58 items in total 　　
(16) Choose one of them to test.　　
(17) Return to "5", move the cursor keys to select F2 "Special Function", press Enter to enter the following interface: engine output control, transmission output control, fuel system, idle speed control system, crankshaft position change learning function.
(18) Select engine output control, press Enter, the screen displays: fan relay, fault indicator, air conditioning relay, carbon canister system, EGR solenoid valve, closed-loop data, cruise control, fuel pump, GENL — terminal.　　
(19) You can enter the corresponding function by selecting.
