Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $269.18 | $263.68 | $255.44 | $244.46 | Contact US |
Description:
- TECSUN PL-880 is a triple conversion receiver that uses DSP technology for listening to AM/FM, Longwave, Shortwave and SSB. Equipped with an analogue High-IF circuit, PL-880 has great performance on sensitivity, selectivity and the interference of mirror stations (image rejection). To further enhance listening enjoyment, PL-880 is fitted with Class AB type Audio Power Amplifiers and ultra-dynamic full range speakers. The addition of so-called "hidden features" that are not mentioned in the operation manual offers the radio enthusiast an interesting expedition in unraveling Tecsun's flagship portable radio.
Unit size: 192 x 113 x 33 mm
Price includes shipping by Express, import taxes and customs handling fees; there are no unexpected costs upon delivery.
Special Functions:
- Class AB type Audio Power Amplifiers & ultra -dynamic full range speakers, with excellent sound quality
- Dedicated fine tuning knob
- SSB: USB & LSB
- SSB tuning by 10Hz or 1kHz
- SSB bandwidth selection: 4, 3, 2.3, 1.2, or 0.5 kHz
- Line-out audio jack
- Variety of hidden features
Specifications:
Frequency Range:
FM: 64-108 MHz, 87-108 MHz, 87.5-108 MHz (tuning step 10kHz or 100kHz)
MW (AM): 520-1710 kHz, 522-1620 kHz (tuning step 1kHz, 9kHz, or 10kHz)
LW: 100-519 kHz (tuning step 1kHz or 9kHz)
SW: 1711-29999 kHz (tuning step 1kHz or 5kHz)
Tuning Methods:
Manual jog dial tuning and fine tuning
Auto scan tuning
Auto Tuning Storage (ATS)
Direct keypad entry
Basic Features:
- 3050 station memories, divided over 25 pages
- Auto Sorting Memory
- LCD indicates S/N ratio and signal strength
- Clock (24-hour format)
- Alarm by radio, Snooze, and Sleep Timer
- LCD backlight on/off switch
- Antenna gain switch: Local / Normal / DX
- FM/SW antenna jack
- Stereo earphones jack (3.5mm)
- 3W Speaker (4 ohm)
- Built-in battery charging
- DC 5V mini-USB jack, ≥ 500mA
- Powered by 1 x 18650 lithium battery
Sensitivity:
FM (S / N = 30dB) < 3uV
MW (S / N = 26dB) < 1mV/m
LW (S / N = 26dB) < 3mV/m
SW (S / N = 26dB) < 20uV
SSB (S / N = 10dB) < 1uV
Selectivity:
FM > 60dB (± 150kHz)
MW / LW > 50dB (BW = 9kHz)
SW > 50dB (BW = 9kHz)
SSB > 50dB (BW = 4kHz)

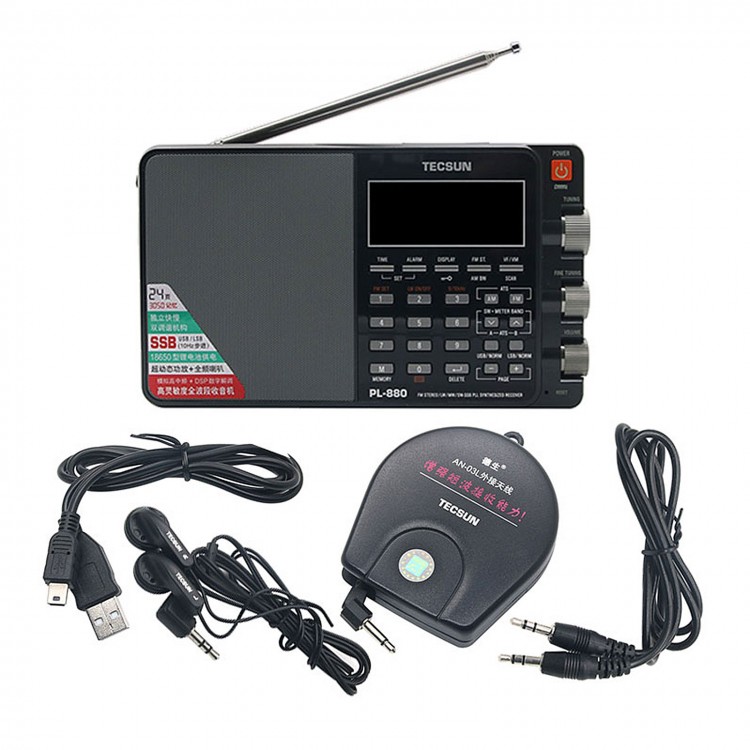

The following items are included in the package:
- PL-880 radio (English version); firmware version 8820
- 1 x 18650 lithium battery
- Protective carrying pouch
- Stereo earphones
- Tecsun AN-06 FM/SW wire antenna
- Tecsun USB wall charger (type-A plug)
- Radio Amateur World Map
- English manual
