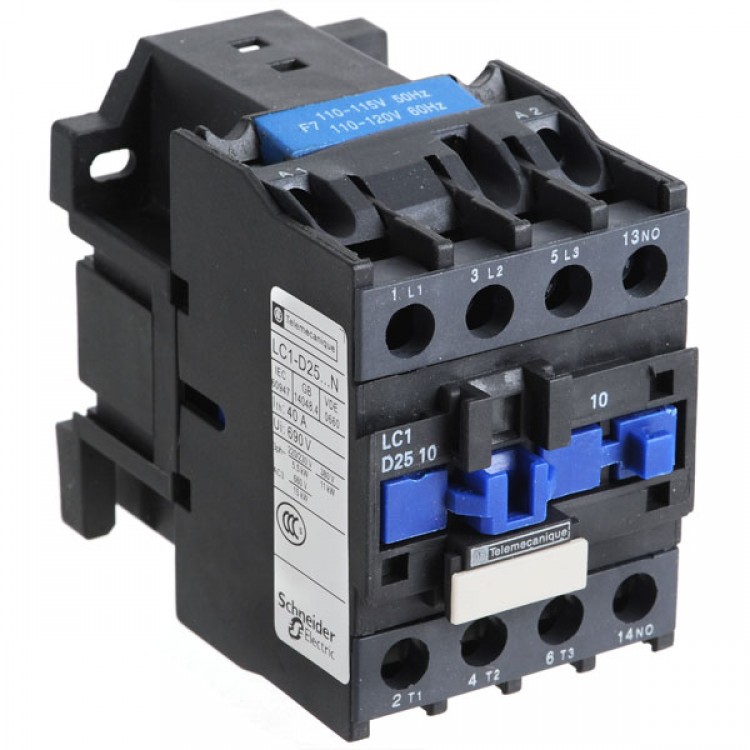

Telemecanique LC1-D2510-F7N Motor Contactor Starter Breaker 110V AC Contactor
Description:
- LC1 D2510 Contactor series AC Contactor is suitable for using in the circuits up to the rated voltage 660V AC 50Hz or 60Hz,rated current up to 95A,for making,breaking ,frequently starting &controlling the AC motor.Combined with the auxiliary contact block,timer delay & machine-interlocking device etc,it becomes the delay contactor,mechanical interlocking contactor,star-delta starter.With the thermal relay,it is combined into the electromagnetic starter.The Contactor is produced according to IEC947-2,VDE0660&BS5452
| Functions |
|
- switching on/off heavy-loaded electrical circuits at controling signal to the coil |
| Technical Data |
|
- Operation class: AC3 - Rated operating voltage of power contactors:up to 690V; 50/60HZ - Composition of the power contact surfaces:unalloyed copper with coating 80% AgSnO - Surge voltage wear resistance:>8000V - Rated voltage of the coil voltage:from 0.8 to 1.15 Uc - Joining terminal:screw terminal - Connecting: - flexible conductors with or without cable terminal - rigid conductors - Electrical wear resistance (number of cycles): >=1000000 - Mechanical wear resistance (number of cycles): >=10000000 - Number of cycles per hour: 1200UP TO 32A;600 for 40-95A - Pole leaking power: up to 13W - Mounting: - on DIN-rail or - with bolts to the surface - mounting position:vertical gradient-maximun±5o - Plastic:wear resistance of UV rays and non-flammable(self-extinguishing material) - Ambient temperature: -10oC~+60oC - Altitude:up to 2000m... |
