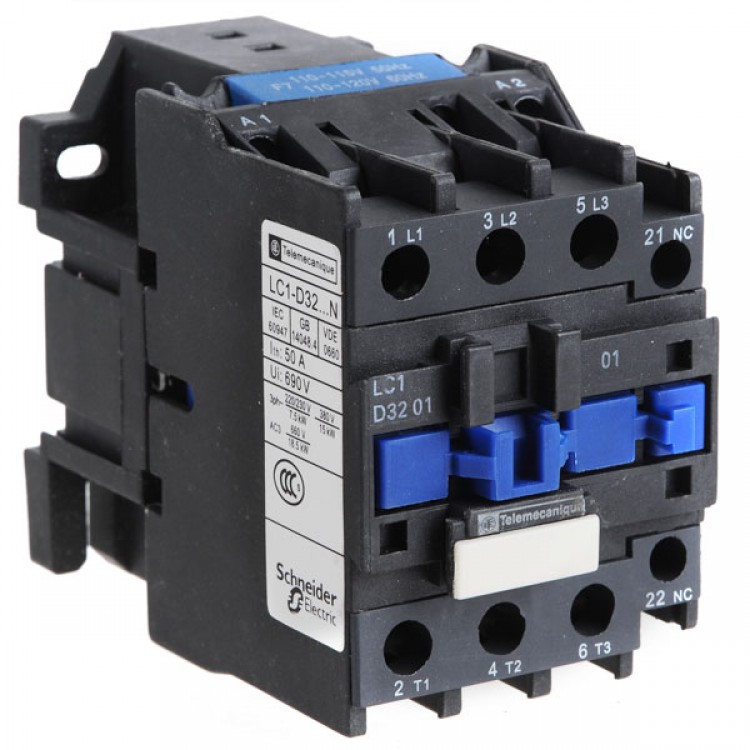

Telemecanique LC1-D3201 B7N 24V AC Contactor AC Power Contactor
Descriptions:
- LC1-D3201 series AC contactor is suitable for using in the circuits up to the rated voltage 660V AC 50Hz or 60Hz, rated current up to 95A, for making, breaking, frequently starting & controlling the AC motor.Combined with the auxiliary contact block, timer delay & machine-interlocking device etc, it becomes the delay contactor, mechanical-interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The Contactor is produced according to IEC 947-2, VDE 0660 & BS5452.
Specfications:
| Type | LC1-D09 | LC1-D12 | LC1-D18 | LC1-D25 | LC1-D32 | |
|
Rated working current (A) |
AC3 | 9 | 12 | 18 | 25 | 32 |
| AC4 | 3.5 | 5 | 7.7 | 8.5 | 12 | |
|
AC3 capacity of phase 3 squirrel-cage motor AC3(kW) |
220/230V | 2.2 | 3 | 4 | 5.5 | 7.5 |
| 380/400V | 4 | 5.5 | 7.5 | 11 | 15 | |
| 415V | 4 | 5.5 | 9 | 11 | 15 | |
| 440V | 4 | 5.5 | 9 | 11 | 15 | |
| 500V | 5.5 | 7.5 | 10 | 15 | 18.5 | |
| 660/690V | 5.5 | 7.5 | 10 | 15 | 18.5 | |
| Rated heat current (A) | 20 | 20 | 32 | 40 | 50 | |
| Electrical life | AC4 x 10000 | 20 | 20-15 | 20-7 | 15-7 | 15-7 |
| AC3 x 1000000 | 2 | 2 | 2 | 2 | 2 | |
| Mechanical | 20 | 20 | 20 | 20 | 20 | |
| Number of the contact | 3P+NO | |||||
| 3P+NC | ||||||
| Type | LC1-D40 | LC1-D50 | LC1-D65 | LC1-D80 | LC1-D95 | |
|
Rated working current (A) |
AC3 | 40 | 50 | 65 | 80 | 95 |
| AC4 | 18.5 | 24 | 28 | 37 | 44 | |
|
AC3 capacity of phase 3 squirrel-cage motor AC3(kW) |
220/230V | 11 | 15 | 18.5 | 22 | 25 |
| 380/400V | 18.5 | 22 | 30 | 37 | 45 | |
| 415V | 22 | 25 | 37 | 45 | 45 | |
| 440V | 22 | 30 | 37 | 45 | 45 | |
| 500V | 22 | 30 | 37 | 55 | 55 | |
| 660/690V | 30 | 33 | 37 | 45 | 45 | |
| Rated heat current (A) | 60 | 80 | 80 | 125 | 125 | |
| Electrical life | AC4 x 10000 | 10-7 | 7 | 7-6 | 7-5 | 7-5 |
| AC3 x 1000000 | 2 | 2 | 1.6 | 1.6 | 1.6 | |
| Mechanical | 20 | 20 | 20 | 10 | 10 | |
| Number of the contact | 3P+NC+NO |
| Volts (VAC) | 24 | 42 | 48 | 110 | 220/230 | 230 | 240 | 380/400 | 400 | 415 | 440 | 500 | 660 |
| 50Hz | B5 | D5 | E5 | F5 | M5 | P5 | U5 | Q5 | V5 | N5 | R5 | S5 | Y5 |
| 60Hz | B6 | D6 | E6 | F6 | M6 | - | U6 | Q6 | - | - | R6 | - | - |
| 50/60Hz | B7 | D7 | E7 | F7 | M7 | P7 | U7 | Q7 | V7 | N7 | R7 | - | - |
